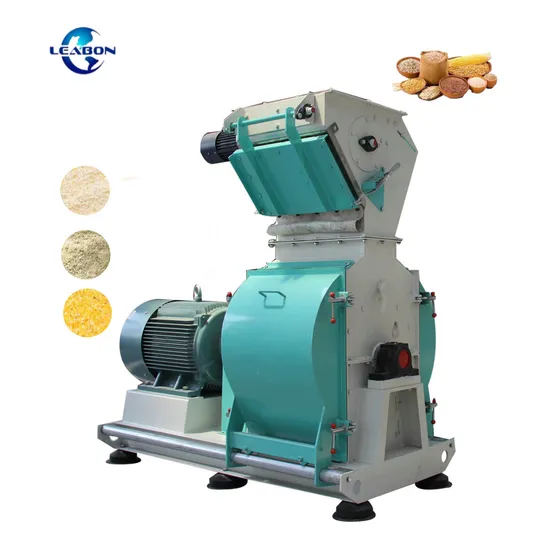

3-5t/H Corn Grain Hammer Mill Machine Animal Feed Water Drop Crusher Machine Price

Product Description

3-5t/H Corn Grain Hammer Mill Machine Animal Feed Water Drop Crusher Machine PriceProduct DescriptionIntroduction:
1. Reasonable structure, safe, durable and easy operation; Stable with low vibration, high efficiency with low consumption, working continuous for long time.
2. This machine can grind all kinds of materials of pellet feeds, such as corn, sorghum, grain, legumes, and so on.
3. Prevent dust spilling out, keep the working environment clean.
4. Easy and safe operation with the top inlet and quick start full opening operation door, and also make the maintain more expediently.
5. Inside rotors make the smash thoroughly, the pellets more uniform; The materials can be coarse grinded, fine grinded and even to be the powder. FeaturesFeatures:
1. The grinding chamber is of tear circle shape, effectively eliminating the circular flow in the grinding process and getting higher capacity;
2. The bottom of grinding chamber is fitted with U-shape double grinding structure, further improving the capacity with evener particle size;
3. All of our rotors pass an accurate dynamic balancing test, resulting in low noise and smooth running.
4. Both coarse and fine grinding can be completed by adjusting the distance between the beater and the screen;5. New type S-shape coupling directly connecting driving results in big off set travel and effectively avoid the heat from the bearing;
6. Beater blade edge is vacuum-welded by special alloy steel, resulting in long service life;
7. The imported components are used for key parts, resulting in long service life and low maintenance cost;
8. The moving full-wide operation door facilitates maintenance and replacing of beater;
9. It is widely used in various feed mills, oil plants, alcohol plants, citric acid plants, etc.
Product ParametersMain data:

Model	Rotor diameter (mm)	Crushing chamber width(mm)	Hammer Q'ty (pcs)	Power (kw)	Capacity (t/h)	Dimension (mm)	Weight (kg)
SFSP50*28	560	300	20	15	0.5-1.5	1200*700*1000	430
SFSP56*32	320	560	32	22	1.5-2	1550*950*1150	580
SFSP56*40	560	560	24	37	5-6	1630*860*1000	730
SFSP60*60	600	600	72	55	3-8	2100*1000*1100	1400
SFSP66*80	800	660	100	90	5-10	2600*1150*1400	1700

Detailed PhotosMore pictures and structure:
Raw Material Kinds of grain
Wood chipps,etc.Final product
Powder with different size
Related ProductThe whole set for hammer mill
The hammer mill in animal feed pellet production line
Packaging & ShippingPacking Details: International standard package of hammer mill
Shipping Time: Shipped in 7-15 days after payment.
