Mini Bench-top Full-set Wet Spinning Design For Researching New Material With 316L Stainless Steel Frame

Product Description

Product Description
Product Description

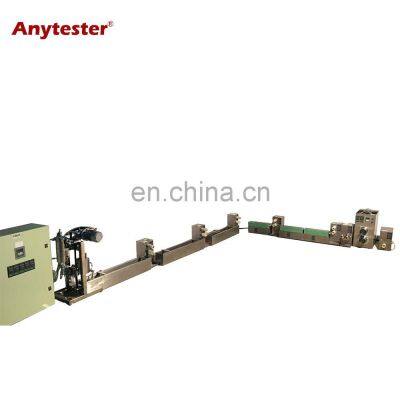

AT235F Bench-top Full-set Wet Spinning is special design for researching new material in the field of textile, macromolecule and other material. It consists of solution tank, dosing pump, gooseneck spinneret nut, coagulating bath (1), cold roll, coagulating bath (2), cold roll, washing bath, cold roll, heating drawing, cold roll, thermal setting, cold roll, oiling device, hot roll and winder.
Specification

Model	AT232F
Solution tank	Volume: 1L Material: 316L stainless steel With rapid-mountable cover With solution output port and nitrogen inlet port Optional ceramic heating jacket with temperature range from room temperature to 180℃ and heating rate: 0.5KW
Dosing pump	Specification: JR1×0.6cc/rev With precise gear pump, nominal flow 0.6cc/rev Optional ceramic heating jacket with temperature range from room temperature to 180℃ and heating power: 0.5KW
Driving system for dosing pump	Worm reducer and single-phase motor Rated power: 180W Reduction ratio:1:60 With driving bar and spindle nose
Solution pipe	Material: 316L stainless steel
Die head part	Material: 316L stainless steel Including seat and assembly seat for dosing pump
Gooseneck pipe	Material: 316L stainless steel
Spinneret parts	Material: 316L stainless steel Diameter of spinneret nut: ¢20mm Material of spinneret nut: tantalumtim Number of holes: 40 Hole diameter: ¢0.1mm Including distributing plate and ¢20mm filtering screen O-type rubber sealing ring
Coagulating bath	Material: 316L stainless steel Size: 1000×100×160mm(L×W×H) Including two rods for pressing filament
Cold roll	Two-roll drafting Roll material: 316L stainless steel or nylon Roll size: ¢50×80mm Motor power: 25W Reduction ratio: 1:10 Drive mode: straight roll and diagonal roll with oblique angle of ±6° Speed range: 2~40m/min Step-less adjustable by rotary knob and display of rotation speed
Washing bath	Material: 316L stainless steel Size: 1000×100×160mm(L×W×H) Including two rods for pressing filament Heating system is optional
Heat drawing	Type: non-contact Length: 400mm Temperature range: room temperature~150℃ Heat power: 250W Temperature sensor: PT-100
Thermal-setting	Type: non-contact Length: 800mm Temperature range: room temperature~150℃ Heating power: 250W Temperature sensor: PT-100
Hot roll	Two-roll drafting Roll material: 316L stainless steel Roll size: ¢100×80mm Motor power: 25W Reduction ratio: 1:10 Speed range: 2~40m/min Step-less adjustable by rotary knob and display of rotation speed Temperature range: room temperature~150℃
Winder	Speed range: 2~40m/min Winding roll: ¢50×80mm Traversing travel: 55mm
Power supply	200V, 50Hz

Futures
★ 316L stainless steel frame, durable and nice.
★ Optional ceramic heating jacket for solution tank and dosing pump.
★ Mini size, save space.
★ It can simulate the whole process.
