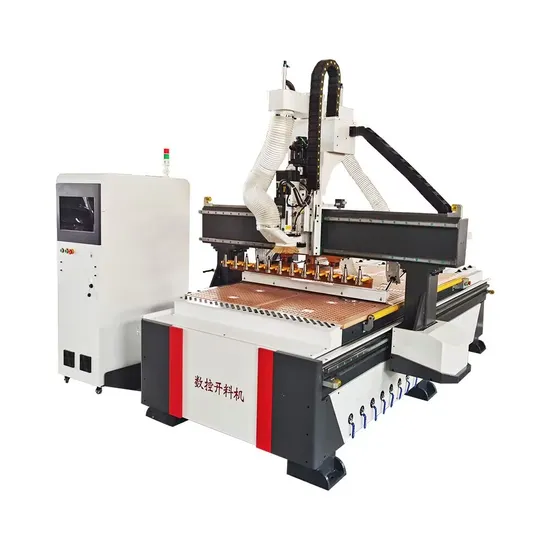

13% Discount Linear Atc CNC Wood Router Auto Tool Change CNC 3D Wood Carving Cutting 1325 Atc CNC Router

Product Description

Product Description
* The bed is designed with thickened square tube, and the machine runs more smoothly.
Taiwan LNC, Syntec or Weihong panel control system, automatic loading and unloading can be used for multi-process, the machine can also be used in machining center row drilling machine can place 8~24 tools at the same time, automatic tool change during machining process, improve processing efficiency .
* Automatic lubrication system, independent chassis, vacuum adsorption table. All three axes adopt Taiwan original square rail, xy axis adopts domestic famous high-precision helical rack and pinion, and z axis adopts Taiwan original nut TBI lead screw.
* The machine can automatically complete the work of feeding, punching, engraving, cutting and unloading, which can greatly save labor costs and improve processing efficiency.
It is an indispensable helper in the panel home industry. Optional automatic type setting software, only need to input the sheet size, the software optimizes its typesetting, the sheet usage efficiency can reach more than 90%, improve the sheet usage efficiency and reduce the cost of raw materials.
Detailed Photos

Machine Type	ATC CNC Router
Travel (X Axis)(mm)	1300mm
Travel (Y Axis)(mm)	2500mm
Repeatability (X/Y/Z) (mm)	200mm
CNC or Not	CNC--NC Studio, Siemens, Syntec, Mach3, DSP, RichAuto
Working voltage	AC380 three phases
Power (kW)	10
Weight (KG)	1000
Warranty	2 years
Spindle	9.0 kw Air cooling ATC Spindle
Function	Cutting Engraving Non-metal Materials
Working table	Vacuum Working Table with 5.5kw vacuum pump
Motor	Stepper Motor
Guide rail	Taiwan Hiwin Square Guide Rail
Driving system	Leadshine Drive
Range of Spindle Speed(r.p.m)	18000-24000 rpm
Positioning Accuracy (mm)	0.02mm
Number of Axis	3 or 4
No. of Spindles	Single With Auto Tools Change Functions
Working Table Size(mm)	1300x3000mm,1500*3000mm,2000x3000mm etc. are optional

China top brand HQD 9.0kw ATC spindle Powerful and can change cutting tools automatically.
Automatic oil lubrication for guide rail and rack after setting time,save labor,easy for maintenance for machine.
Equipped with a 10-12 tool linear tool magazine, which can quickly and freely change tools. Change tools within 5 seconds.
Vacuum + T-slot table
The entire workbench is divided into six partitions, which are controlled separately for easy adjustment
Fixture
it is used to control the drill bit.
Control system LNC 2200 or syntec
samples
Applicable products: * Furniture: wooden doors, cabinets, plate, office and wood furniture, tables, chair, doors and windows.* The wood products: voice box, game cabinets, computer tables, sewing machines table, instruments.* Plate processing: insulation part, plastic chemical components, PCB, inner body of car, bowling tracks, stairs, anti-Bate board, epoxy resin, ABS, PP, PE, PEHD and other carbon mixed compounds.* Decorate industry: Acrylic, PVC,MDF, artificial stone, organic glass, plastic and soft metals such as copper, aluminum plate engraving and milling process.
