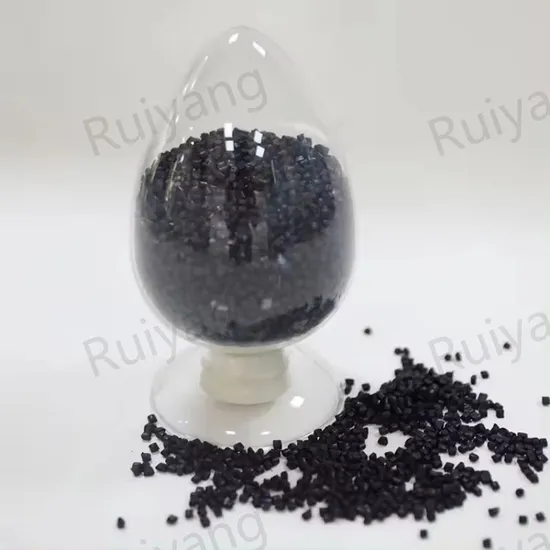

Customized PVC Flame Retardant Granules for Cable and Wire Insulation

Product Description

Product Description:

Communication wires PVC jacket compounds is made of PVC resin as the base materials and plastic additives . It is processed by domestic advanced twin-screw granulator. This series of products comply with ROHS, PAHS, DEHP, POFS. REACH .Oxygen index can also be customized as the customer different requirements. It is mainly used for series of data cables that meet the high flame retardant requirements of UL444 standard.

Advantage:

High flame retardant
Good hand feel
Oxygen Index can be customized
Comply with ROHS&REACH

Application

Item No	Description	Application
RY-E80170VC	70ºC high speed insulation grade soft PVC compounds for communication wire	Apply for communication cables, program-controlled switch cables and other high-speed wire insulation. The maximum speed is more than 1000M/min.
RY-E80280VC	80ºC high speed insulation grade soft PVC compounds for communication wire
RY-E803105VC	105ºC high speed insulation grade soft PVC compounds for communication wire
RY-E80470VC	70ºC high speed sheath grade soft PVC compounds for communication wire	Apply for communication cables, program-controlled switch cables sheath.
RY-E80580VC	80ºC high speed sheath grade soft PVC compounds for communication wire
RY-E80670VC	70ºC high speed sheath grade soft PVC Compounds for data cable	Apply for data cable sheath 220M/min.
RY-E80770VC	70ºC high flame retardant soft PVC Compounds for data cable	Apply for high flame retardant data cable sheath
RY-E80875VC	70ºCsheath grade soft PVC Compounds for data cable	Apply for CMX grade date cables sheath with UL444 standards
RY-E80975VC	70ºCsheath grade soft PVC Compounds for data cable	Apply for CM grade date cables sheath with UL444 standards
RY-E81075VC	70ºC sheath grade soft PVC Compounds for data cable	Apply for CMR grade date cables sheath with UL444 standards

Properities:

Tensile Strength: ≥15 MPa
Elongation at Break: ≥180%
Thermal Deformation: ≤50%
Impact Brittleness Temperature: ≥ -15ºC
Thermal stability time at 200ºC: ≥60 min
Volume Resistivity at 20ºC : ≥1.0×1012
Oxygen Index 30.32.34.36.38.40 can be customized

Package, Transportation and Storage

Package: 25kg per bag, inner PE film and outer kraft paper bag.
Transportation and Storage: Cable materials should not be exposed to the sun and rain during transportation. They should be stored in a clean, cool, dry and ventilated warehouse and also should be handled and carried gently. The shelf life is 6 months.

Company Profile

We,Suzhou Ruiyang Plastic Technology Co., Ltd is a professional manufacturer with 10 years experience in the cable materials in China. We mainly manufacture and supply a series of PVC, LSZH cable materials, special wires &cables materials and cross skeleton etc., which are widely apply for all kinds of cables,such as the communication cables with CMX, CM, CMR, CMP grades ,automotive wires which meet the international standards of the US, Japan, France, and as well as the CL standard of Volkswagen and Porsche and so on. Our company has passed the ISO 9001:2000 quality management system certification . All our products can meet the compliance of ROHS and REACH .The current production capacity is about 2,000,000 kilograms per year.
We own a strong technical research and development team, adhering to the development concept
of "scientific and technological innovation, quality first, customer first" which go all out to
provide customers with good solutions from beginning to end.
We have own IM/EX right, our products with high quality and competitive prices.

Workshop

Test Equipments

Certificate& Test reports

FAQ

1. Are you trading company or Manufacturer ?
We are a professional manufacturer. We are warmly welcome clients from worldwide to visit our factory and cooperate with us.
2.What can you buy from us?
PVC Granules,LSZH granules,Polyethylene,HDPE Granules,LDPE Granules,Cross skeleton, Nucleating agent and other Plastic Granules.
3.Why choose us?
We are a professional manufacturer .We can offer very competitive prices and high quality for all our products.
4.Do you provide samples ? Is it free or extra ?
Yes, We can offer samples below 25kgs, but customers have to bear the shipping cost.
5.How long is your delivery time?
5-10 days. Only when the quantity exceeds 10000kgs delivery time will be agreed by negotiations.
6.Do you accept customization?
Yes,All products can be customized for different requirements.
7.What are your payment terms ?
We'd like to use T/T as the terms of payment. L/C terms can be communicated.
