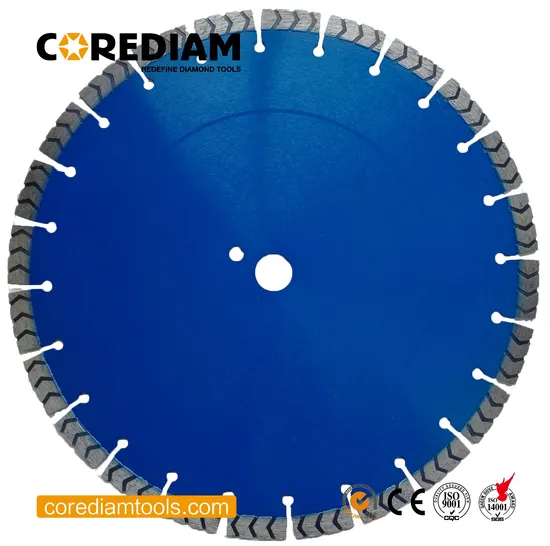

Diamond Cutting Tools From Made in China/14 Inch Arrow Segment Diamond Saw Blade

Product Description

Product name	Arrow diamond saw blade
Product size	350mm
Production technology	Laser welded
Cutting material	concrete, cured concrete, green concrete reinforced concrete
Cutting environment	dry and wet cutting
Use equipment	handheld saw, floor saw, walk-behind saw
Segment types	arrow segment

Corediam Main product:
The main product ranges include laser welded saw blade, brazing saw blade, sinter hot-pressed saw blade, diamond grinding cup wheel, laser welded core drill, diamond wire etc.
Product Description This type of blade is laser welded, in this status we have making the diamond blades have high strength and also improve its cutting performance.
In order to reduce the stress to the steel core and prevent steel core cracking during cutting some hard materials, we have made undercut segments on the segments to protect the steel cores.
The blade is installed on handheld saw, floor saw, walk-behind saw, it is using for dry or wet cutting concrete, cured concrete, green concrete reinforced concrete cutting.
It have good cutting performance, fast cutting speed, and long life.
Features:
1) Undercut Protection segments provide longer life when cutting Abrasive Materials.
2). Both Dry and Wet Use.
4). Easy and smooth cutting
5). Long cutting life
6). Different grade to choose
Specification:

Item No.	Diameter	Segment Height	Segment Thickness	Arbor
CCLR30015	300mm	15mm	3.2mm	20/25.4mm
CCLR35015	350mm	15mm	3.2mm	25.4mm
CCLR40015	400mm	15mm	3.4mm	25.4mm
CCLR45015	450mm	15mm	3.4mm	25.4mm
CCLR50015	500mm	15mm	3.6mm	25.4mm

Delivery time : Our leading time will be about 4 weeks for the batch order.
Company Profile Corediam's main products are 230mm laser welded diamond blade, 115mm sintered saw blade, silver welding grinding wheel, grinding plate, grinding disc, laser welding diamond core drill bits and so on.
Factory support: Excellent production capacity and strict quality control system guarantee.
We are the official partner of DHL, TNT, FedEx, it will take only 3-5days after we got your payment.
