Fiber Laser Pipe Cutting Machine 2000W Metal Tube 6m CNC laser Cutter Machine 6000*220mm Low Cost 2kw

Product Description

With 10mm Pipe Fiber Laser Cutting Machine Tiny and Small Diameter Tube Cutting Metal Metal CS / SS / Aloy Aluminum / Brass Copper

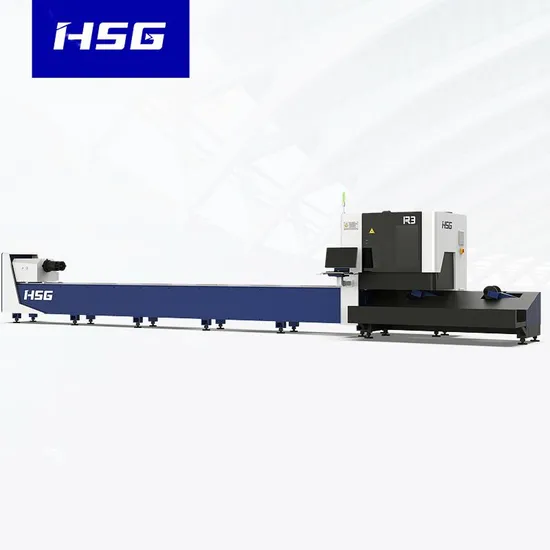

R3 PLUS II is an economical tube cutting machine. It can deal with tubes made of mild steel, stainless steel, aluminum alloy, brass and red copper.
Applications: metal furniture, office desk and chair, handrail, outdoor fitness equipment, display props, medical devices, etc.
Automatic loading and unloading devices are provided for all global users as optional features.
Economical Model
* Small size and small occupied area, improving the utilization of workshop
* Shipped in a 40HQ standard container with no need for metal plate removal

Technical Parameters	R3 II	R3 PLUS II
Power	1500-4000W	1500-4000W
X/Y-axis Positioning Accuracy	±0.03mm/m	±0.03mm/m
X/Y-axis Repositioning Accuracy	±0.03mm	±0.03mm
No-load Speed	90m/min	90m/min
Acceleration	0.8G	0.8G
Rotating Speed of Chucks	90r/min	90r/min
Tube Size	Φ20-Φ220mm £20*20-150*150mm	Φ20-Φ325mm 20*20-230*230mm
Length of Tube	6000mm	6000mm
Weight of Single Tube	150kg	200kg
Tailing Length	85mm	85mm
Overall Dimensions (L*W*H), with Loading Device	10000*4500*2350mm	10160*4600*2350mm

* Machine appearance, technical parameters, function description, data comparison shown in this page are from HSG in-house laboratory. All testing results and experimental data shall be subject to real machine.
1. Sales Champion among Economical Tube Laser Cutting Machines
* Small size and small occupied area, improving the utilization of workshop
* Packed in 40HQ standard container with no need for metal plate removal
HSG-X9000 Bus CNC System
21.5-inch touch screen with concise interface
Real-time monitoring of core components and early warning if abnormal
Simple lines in favor of low failure rate
Auxiliary functions incl. tube error detection, welds check
Rich tube cutting library
* Bus refers to data transmission mode via on-site bus control system.
Double Pneumatic Chucks
* Detecting sensor for front and rear chuck opening & clamping, preventing possible collision
* Function of front chuck ventilation, for dust prevention from entry into chucks
* Front chuck avoidance cutting
R3 II: Φ20-220mm, 20*20-150*150mm, tailing length 85mm
R3 PLUS II: Φ20-325mm, 20*20-230*230mm, 22# channel steel, tailing length 85mm
4.
KLINGE Autofocus Cutting Head
KLINGE, made of stainless steel, has a function of water cooling, dual-path cooling nozzle, ceramic ring, double focusing protective lens, drawer-type pluggable protective lens, focusing and collimating lens.
* Self-developed by HSG LASER
* Autofocus accuracy ±0.01mm
* Flow control for mirror-like surface cutting
* Prevent spark splashing and scalds by SS protective pipes
Japanese Takagi Tube Nest (TTN) Software
It is re-developed based on Solidworks and can carry out parts design, programming and auto nesting for open and closed graphics.
* Generate cutting trace automatically/by hands, intuitive analog simulation
* Built-in tube library, direct imports of assembly for programming, nest according to tube length and priority
* Reserve data interface to dock with other ERP/MES systems Flying Cutting, Space Leapfrog
The industry's unique technologies, namely, tube cross-plane space leapfrog and flying cutting (patent No. ZL201810158585.8), simplify moving route of cutting head to the extreme, with no repeated lift or fall, therefore, its efficiency will be improved by 50%+ especially while cutting square tube.

Strict in Quality Control before Delivery
7. High-standard Package
* R3 PLUS II is easily put in 40HQ standard container.
* To keep entire machine safe during long-distance sea transport, we adopt high-standard package, incl. aluminum foil, metal framework, fumigation wooden case, anti-rust oil+oilpaper, moisture-barrier bag, waterproof plastic film and filling foam.
HSG LASER CO., LTD.
HSG Laser, dated back to 2006 as a hi-tech enterprise focusing on R&D, production and sales of laser equipment, is dedicated to serve global customers with metal forming solutions.
DEVELOPMENT HISTORY Transform From
Laser Cutting Machines
To Metal Forming Equipment in the Entire Industrial Chain
