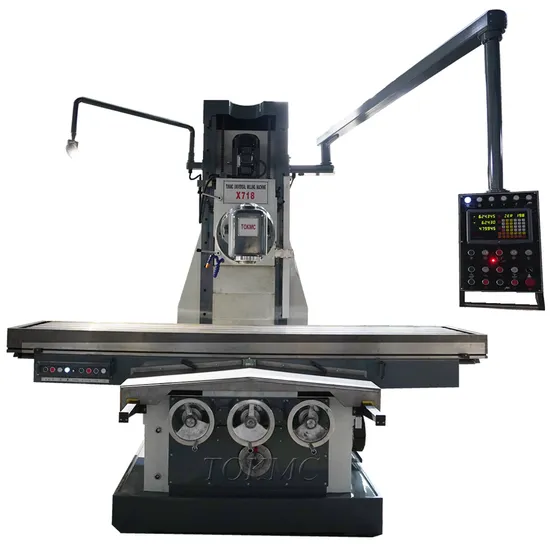

2800X500mm Ball Screw Bed Type Universal Swivel Head Milling Machine (X718)
| US$45,000.00-62,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
X718
Structure
Bed type
Milling Cutter Type
Vertical Milling Cutter
Milling Cutter Structure
Indexable Type
Controlling Mode
Artificial
Automatic Grade
Semiautomatic
Precision
High Precision
Certification
GS, CE, ISO 9001
Condition
New
Milling Machine
X718 Bed Type Milling Machine with Table Size 2800
Table Size
2800X500mm
Table Travel
2500X1020mm
Max.Loading Weight
5000kgs
Fast Feed X,Y
22.4 -560 mm/Min
Z Axis Feeding
11.2-280 mm/Min
Spindle Speed Range
36-1340 Rpm
Main Motor
7.5kw
Spindle Taper
ISO50
T-Slot Width
4-20-100
Spindle Step
12
Funcition
Heavy Duty Cutting,Milling Machine, Grinding
Distance From Spindle to Guideway
900mm
Machine
Universal Milling Machine
Dro
Sino Brand
Transport Package
3020X3000X3000mm
Specification
9000kgs
Trademark
tokmc
Origin
China
HS Code
84595900
Production Capacity
100 Set/Year
Product Description
bed type universal swivel head milling machine (X718)Feature :
- heavy duty cutting,It can bear 5 tons on worktable
-X,Y ,Z axis travel 2500mmx1020mmx1090mm
-universal swivel head 360 degree, processing Multi-angle, multi-faceted workpiece
-Good stability, easy to operate
| specifications | units | X718 |
| table size | mm | 2800×500 |
| table travel(X,Y) | mm | 2500×1020 |
| Distance from spindle to table surface height | mm | 385-1540 |
| Distance spindle to table surface lower | mm | 0-1160 |
| Distance spindle to table surface vertical head | mm | 0-1090 |
| number/width/distance of T-slot | mm | 4-20-100 |
| max.load of table | kg | 5000 |
| Feed speed | mm/min | 22.4-560 |
| Rapid feed speed | mm/min | 1650 |
| Z axis feeding | mm/min | 11.2-280 |
| Z speech axis feeding | mm/min | 825 |
| Spindle taper | 7:24 ISO50 | |
| Spindle speed range | rpm | 36-1340 |
| Spindle speed step | steps | 12 |
| Distance from spindle axis to column guideway | mm | 900 |
| Spindle motor power | kw | 7.5 |
| Overall dimension | mm | 3020×3000×3000 |
| Machine weight | kg | 9000 |
List of standard accessories
| digital readout three axes | clamping kit |
| machine vise 6" | Work light |
| Lubrication system | Coolant system |
