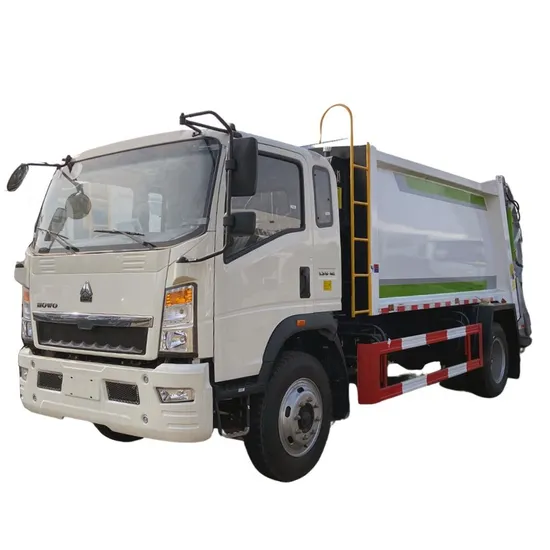

HOWO 10m3 Compressed Garbage Truck Refuse Compactor Truck Waste Collection Truck Garbage Compactor Truck

Product Description

Product Description
Compressed garbage trucks also known as garbage compactor trucks, refuse compactor trucks, garbage compression trucks, waste compactor trucks, waste collection trucks, waste transport trucks, refuse collection trucks, rear loader garbage trucks, garbage collection trucks, waste management trucks, waste disposal trucks, waste removal trucks, trash trucks. Detailed Photos
Product Parameters

Vehicle Description
Overall dimensions	7450*2550*3050mm
GVW	14000kg
Chassis brand	SINOTRUK
Traction type	4*2

Chassis Description
Cab	Single row and a half, 2 seats with A/C
Engine	Brand	YUCHAI
	Model	Diesel: 4-stroke direct injection, 4-cylinder in-line with water cooling, turbo-char in and inter-cooling
	Emission standard	EURO 2
	Displacement (L)	4260
	Horsepower	140
	No of cylinder	4
	Maximum torque	260N.m @ 1100~1600rpm
Transmission	Manual, 6-speed forward, 1-speed reverse
Axle	Front 3.6 ton, rear 8 ton.
Tire	8.25R20

Up-parts Specification
Dustbin volume	10 cbm
Material & thickness	Side	4mm Q345
	Bottom	5mm Q235A
Type of Rear garbage filler(Rear Turnover device)	Hanging trash bin
	Swing arm
	Dustpan
Control system	Electrically Controlled Hydraulic + Manual Hydraulic
Type of compactor	Fill, push, and compression
Garbage compact density	0.9±0.05 T/cbm
Sewage water tank	Rear	About 500L, on the bottom of the rear filler
	Front	About 230L, on the front of the garbage van
Max compact	≥141 KN
Max push	≥189 KN
Tailgate ascending Angle	~95°
Cycle of loading	≤40s
Cycle of discharge	≤45s
Hydraulic pressure system working pressure	16 Mpa
PLC	Importation PLC (Programmable controller)
Gear pump	Made in China
Multi-way valve	Air controlled, Made in China
Hydraulic oil cylinder	Made in China
Hydraulic rubber hose	Made in China

Company Profile

Packaging & Shipping
FAQ
1. What are your terms of payment?
T/T with a 30% deposit and a 70% balance will be paid before delivery.
We will show you photos of the products and packages before you pay the balance.
2. What's your minimum quantity?
1 set.

3. What is your packing?
Naked packing, we transport our trailers by bulk cargo carrier, ro-ro or 40/45 HQ, or land transportation.

4. How about delivery time?
Generally speaking, 25 workdays after we received 30% of the contract value T/T down payment. The specific delivery time depends on the products and the quantity of your order.
5. How to judge the quality of products?
We will show you photos and videos, trading order. You are welcome to visit our factory at any time.
6. Why do you trust and choose us?
--Complete production line, from trailer Design to Delivery.
-- ISO 9001: 2008 and CCC quality certificate.
--Use 100% famous brand spare parts you want.
-- Accept customization requirements.
--We are trusted by clients from Africa, Australia, South America, Indonesia, and so on.
--We accept flexible payment terms, T/T, L/C, or other.
7. Can I customize the painting and the logo?
Yes, we offer customized logos for any type.
Please contact us for more details
