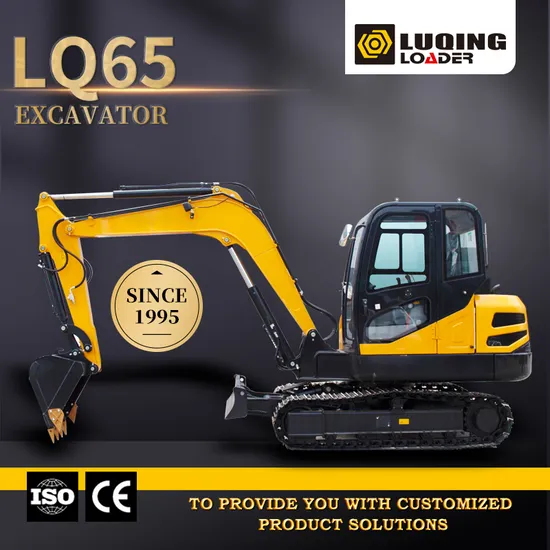

Chinese Brand Luqing 6.5 Ton Hydraulic Crawler Excavator with 0.21m3 Bucket

Product Description

Brief Indruction 1. Full imported hydraulic system ensure the stable quality.
2. Special design on separating engine and radiation space, using enhanced cooling fan to increase cooling efficiency
3. Original Kubota engine,high efficiency low noise.
4. Equipped with double fuel filter to guarantee fuel purity to protect engine
5. Extend hydraulic line for various attachments.
6. Full sealed cabin with A/C and comfort seat make operator easy to work.
7. Intelligent control electric system.
8. Open covering parts makes the maintenance easy to proceed.
Basic specifications
Engine

Model	Kubota V2607 42.4KW/2000rpm
Type	Direct injection, water cooled, supercharge
No. of cylinder	4

Main Performance

Swing Speed	r/min	0-11
Traveling Speed	km/H	2.5~4.2
Grade ability	%	70(35°)
Traveling Tracking Force	kN	30.8
Bucket Digging Force	kN	48
Arm Digging Force	kN	35

Hydraulic System

Hydraulic system working pressure	Mpa	28
Hydraulic Pump		Rexroth
Swing Motor		Eaton
Main Valve		Husco
Fuel Tank Capacity	L	105
Hydraulic Tank Capacity	L	90

Overall Dimensions

Overall Length	mm	5940
Overall Width	mm	1880
Overall Height	mm	2570
Ground clearance	mm	700
Track length	mm	2580
Track width	mm	400
Undercarriage width	mm	1880
Undercarriage ground clearance	mm	353
Dozer Blade	mm	1880×350

Operation parameters

Operation Weight	KG	6500
Bucket Capacity	m3	0.21
Max. Digging Radius	mm	6128
Max. Digging Depth	mm	3808
Max. Digging Height	mm	5499
Max. Dumping Height	mm	3854
Max. Dozer Cutting	mm	474
Max. Dozer Lifting	mm	376
Tail Swing Radius	mm	1689
Sprocket to Idler	mm	1990

DIAGRAMMATIC DRAWING:
CONDITIONS:
QUOTATION TERMS: Based on FOB Qingdao or Tianjin port. 30 days validity since issuing date. PACKING DETAILS: 4 pcs in 20GP container. 8 pcs in 40GP container. Bulk cargo or RO-RO Nude DELIVERY TERMS:
Generally, 20 days after receiving deposit/confirmation; Specific dates shall be confirmed
when order.
PAYMENT TERMS:
By T/T: 30% as deposit and the balance paid after finishing production before shipment

ACCESSOORIES:
Tools box, operator's manual and a list of spare parts.
WARRANTY:
Generally, 6 months or 1000 hours since first receiving the goods, whichever first
ORIGINAL: China
OPTIONAL ATTACHMENTS: Breaker Log grapple Auger LUQING always treat after-sale service as important as sale.
During the warranty,if there is any quality issue(except easy- damaged parts),we will provide the new accessories for you through verifying. Detail clauses and policies please check our website and product certificate.
