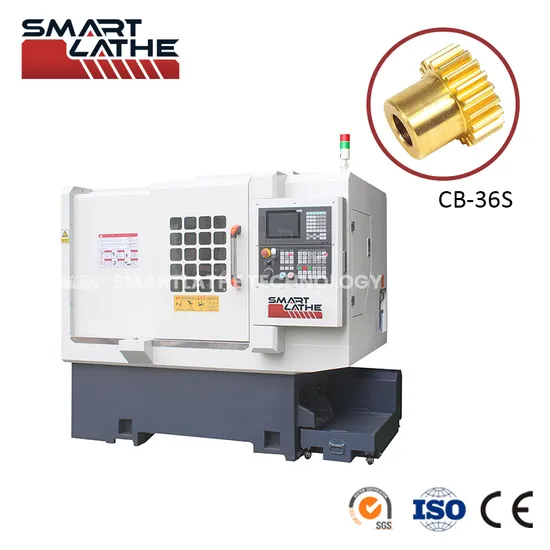

Auto High Rigidity Adopting Taiwan Technology Slant Bed CNC Lathe Machine Dual Spindle CNC Lathe

Product Description

Product Description
Auto high rigidity adopting taiwan technology slant bed cnc lathe machine dual spindle cnc lathe
Specification

CAPACITY
Swing Over Cross Bed	Φ320mm
Swing Over Carriage	Φ220 mm
Max. Length of Workpiece	180mm
Turning Diameter	Bar Materials up to φ35mm Single Workpiece up to φ50mm
Bed Type	45° Slant Bed

SPINDLE
Spindle Nose Taper	A2-4
Speed	5000 RPM
Spindle Motor Power	5.5kw Servo motor
Collet Type	Hydraulic Collet

TRAVELS
Z-Axis	300mm
X-Axis	800mm
Guideway Type	32mm TAIWAN ball screw rod 30mm TAIWAN linear guideway
Z/X Axis	Up to 24m/min
Machining Accuracy	±0.005mm
Surface roughness	≤Ra 1.6μm

TOOLS
Gang Type Tool	6 Gang Type Tool Holders
Outer diameter of cutting tool shank	20mm*20mm

CNC CONTROL
Controller	SYNTEC 6TA-E

POWER SUPPLY
Total Power	9KW
Voltage	380VAC 50Hz

DIMENSIONS
Dimensions (L/W/H)	1950mm*1450mm*1750 mm
Weight	2000 kg

Standard Configuration

Fully enclosed splash guard with top roof	5.5KW spindle servo motor	Telescopic guards for X/Z axes
Spindle speed 6000 rpm, A2-4	Automatic lubrication system	Coolant system
Lubrication system	Hydraulic system	Coolant tank
Oil separator	LED working lamp	Electronic handwheel (MPG)
Coolant gun	Toolbox and user manuals	The tool holder (6 Sets)
Collet (1 Set)	C axis	CNC Simulation

Optional Accessories

Bar Feeder

3-Jaw Hydraulic Chuck With Soft Jaws(5"/6"/8")

Live Tool Device (Single or Double-Shaft)

Polygon Turning

Y-Axis Side Milling Device (4 tools)

Servo Turret

End side & Y-Axis Live Tools (8 tools)

Applications
Competent to handle the turning process with brass, bronze, aluminum, steel, stainless steel, and rigid plastic with bars diameter up to φ35 mm or single workpieces up to φ50mm. High Rigidity casting iron body provides the possibility of higher hardness materials and better smoothness (smaller roughness).

Features
The machines of the CB series with linear tool changers are particularly suitable for the series machining of smaller workpieces. The shortest tool changing times and reliable functionality guarantee increased productivity.
The inclined bed design ensures good chip flow.
The hydraulic chuck with a through-hole enables fast loading and short non-productive times. A flat-top conveyor and a high-performance coolant system round out the standard equipment.
Company Profile
FAQ
1:How can I choose machines?
A: for the model selection, please send us the drawing of the turning part and our engineer will evaluate it and provide the suitable configuration of the CNC lathe fit for your needs.
2: What's the main products of your company?
A: SmartLathe concentrated all its resources to develop successfully the SL series of the CNC slant bed lathes including the SL-07, SL-25, SL-36, SL-46, and the CNC Turning-Milling machines to help our customers in the field of prototyping, entry-level business, and the craftsman with a bootstrap budget.
3: Where is our factory located? How can I visit there?
A: Our factory is located in Foshan City, Guangdong Province, 528300 China. You are warmly welcome to visit our factory.
4: What are the Trade & Payment Terms?
A: FOB, CFR, and CIF are all acceptable. T/T,30% initial payment when order,70% balance payment before shipment; Irrevocable LC at sight.
5: What's the MOQ?
A: 1 set. We will offer you're a better price if you order more.
6. What is the delivery time?
A: The full series of standard models are in stock. For a customized one, it depends.
7. Do you have any certificates?
A: Yes, our machine is CE-compliant, and our factory is ISO 9001 accredited.
8. What is the warranty period?
A: The warranty period is generally 13 months after B/L date.
9. Machine installation
A: SmartLathe could assign the technician to the place for the on-site installation if requested by the purchaser.
10. Technical Support
A: The technical response is available within 12 hours while the solution for the troubleshooting is provided within 48 hours.
11. Demo and Testing
A: SmartLathe built a training center for the clients and employees to study the operation of the machine. You are welcome to visit our factory anytime for the machines' demo. Furthermore, we could demo per your drawing of turning parts.
