Wet Wipes Tissue Manufacturing Making Machine

Product Description

Product parameters

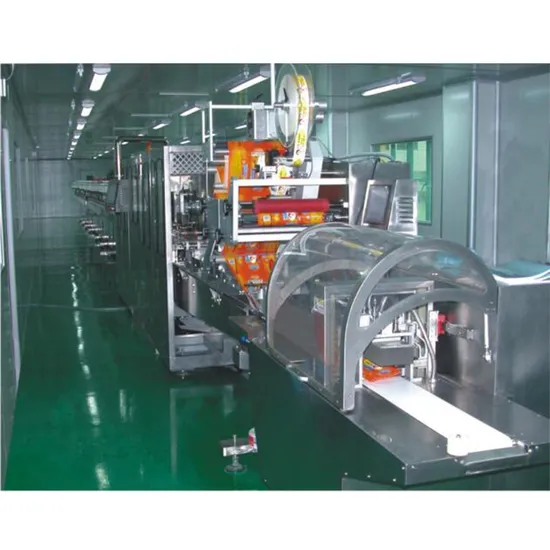

WL-100 baby wipes machine, wet tissue machine, wet wipes machine.
1. Description:
WL-100 is fully automatic line to produce bag packed wet tissue/baby wipes. Production flow is as follows: Feeding raw material ---Splitting raw material ---Folding---Liquid adding----Cutting into sheets--Automatic counting----Automatic stacking---- Automatic conveying-----Automatic packing-----Window opening and labeling----Bag-forming and sealing---Automatic gusset forming--- Removing air inside bag----Finished product
2. Specification:
2-1 Raw material unwinding:
Raw material: Spunlace, airlaid
Raw material rolls width: 600-1450mm
Raw material basis weight: 35-90GSM
Max. Roll diameter: 1200mm
Core diameter: 76.2mm
Raw material roll stands: 2sets
Splitting lanes: 6lanes/roll, total 12lanes
Splitting width: 150-250mm
Raw material driving: Automatic adjustment for tissue tension
Adjustable for make left and right end trimly
Electric sensor for stoping machine when raw material roll is finished, auto alarm
Electric sensor for cloure connection, auto alarm
Raw material belt width 90mm, servo control.
2-2 Folding:
Folding width: 95-115mm, adjustable
Folding type: Pop-up & non pop-up
Cutting length: 120-230mm
Stacking sheets: 20-120sheets
Stacking height: 100mm (Max. )
Speed: 3000-4000sheets/min
Operation: 10.4" LCD
Wetting system: Even moisture for single sheet, 10PCS nozzles, wet for individual sheet
Wetting quantity: Set by LCD, no recycled
Wetting range: 60-80% or 50-500g/bag
Counting type: Servo control, auto stacking
Cutting type: Synchronous rotary cutting
Cutting blade: Stainless steel #440
2-3 Conveying:
Material feeding type: Synchronous connection, servo control
Table-board length: 2440mm
Main material: Stainless steel 304
Table-board material: Stainless steel 304
Working width: 80-120mm, adjustable
2-4 Box-motion packing (7sets servo motor, single box motion type)
Film diameter: 350mm, max.
Film width: 450mm, max.
Bag length: 100-300mm, set by LCD
Bag width: 80-125mm, adjustable
Product height: 10-100mm, adjustable
End-sealing type: Flat-sealing, tooth-type sealing for your option.
Temperature control: 0-399º C, PID control temperature, ± 1º C
Speed control: 0-60bags/min, servo control
Operation: 5.7" touch screen
Heating unit: 220VAC, center-sealing 2100W, end-sealing 1400W
End-sealing motor: Servo motor, 850W/1set, 750W/1set
End-sealing protection: Overloaded pressure, machine stop
End-sealing gusset: Synchronous
Film-supplying motor: Servo motor, 850W/1set
Material feeding motor: Servo motor, 400W/1set
Window opening motor: Servo motor, 750W/2sets, including virgin label
Compressed air required: 0.5-0.8Mpa, 0.01M3/min
Power supply: 380VAC, 50/60Hz, 10Kw
Product display
Our Services
(1)Technical Support
1. Free consultant service, help customers to make project feasibility analysis.
2. We provide the relevent product information of the series for customer's reference.
3. We offer the designing, installment drawing and necessary information for production according to customer's real situation.
4. We inform the models, technical index and request, suppliers and reference price of all necessary raw materials for production.
5. We advise customers how to solve the usual machine fault.
6. We can supply the technicians to operate the machine.
(2)After-sale Service
1. The machines are tested and have trial production in our factory before leaving our factory and they are shipped out only after the customers are satisfied with them.
2. When the machines are tested, our technicians will train the customers' technicians in theory and practice till they grasp the skills.
3. When the machines are delivered to the customers, we can go to customer's factory to install, test the machines, and to train again before the operation staff start working.
4. During this period of one year warranty, if the machines were damaged by non-artificial reasons, we are responsible for repairing or changing parts.
5. During this period of warranty, if there is something wrong with the machine, we are responsible to provide project for solving this problem at the soonest, and help customers to restore production as soon as possible.
6. After the warranty, we charge only cost price for maintaining the machines within three years.
7. Other after-sale terms can be agreed by buyer and seller in addition.
Certifications
Exhibition
Company information
Packing & Delivery
FAQ:
Q1:When can I get the price?
A1:We usually quote within 24 hours after we get your inquiry.
Q2:How can I get a sample to check your quality?
A2:After price confirmation, we sincerely invite you to our factory to check our operation and production.
Q3:Can you do the machines' appearance design for us?
A3:Yes. We have a professional team with rich experience in machine's appearance design and manufacturing. Machine structure design is according to the products that you want to produce.
Q4:What's your after sales service?
A4:When machine is delivered from our factory, we'll apply the visa for our engineers to your country. As soon as the machine arrives in your factory, we'll assign them to go immediately. You can also assign your staff to our factory to learn.
Q5:Could you also supply raw materials?
A5:Yes, surely we can. We have long term cooperation with many raw materials suppliers. They can provide us good quality and good price. This is in our service chain.
Q6: If I need to change certain spare parts, how can I confirm the item No. with you?
A6: Each spare part on our machine has unique code No. We have the spare parts codes regulation system. We only need you to tell us the laser code No. on the spare part. Then we can confirm with you the drawing at the soonest time and supply you the spare part accordingly.
