Manual Hand 260L-800L Mobile Small Concrete Mixer Machine Price

Product Description

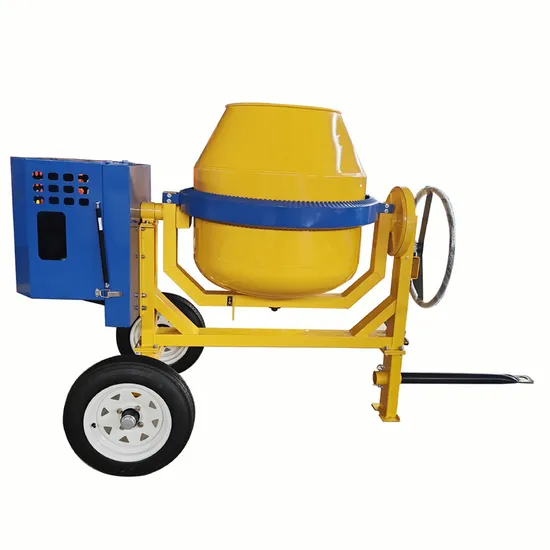

Manual hand concrete mixer 260L-800L mobile cement mixer small concrete mixer machine price 2 wheels
Product Description

Product Description
Brief Introduce:
The cement concrete mixer is used for mixing dry-hard ,semi-hard,plastic and various proportions of
the concrete ,and can meet different requirements of the construction projects.
Concrete Mixer has three models differed by driven style:Gasoline/Diesel/Moter .
It is suitable for mixing mortar,concrete,with merits of small volume,easy for transport,high-eficiency and
outstanding quality.

Features of Mini Concrete Mixer
1.All-steel construction, Mini Concrete Mixer has long life span.
2.Large wheels, It's easy to move the Mini Concrete Mixer to anywhere. 3.Diesel/gasoline/electric motor,optional as customers' requirement. Mini Concrete Mixer is powerful.
4. Cast iron gear for Mini Concrete Mixer steady and silent working.
5.Spray painted surface,colour as your request.
6.EPA certificated wheels,wheels size:520mm.
7.Guarantee time:six months warranty
8.water supply mode:direct input
9.Discharging:semi-automatic

Detailed Photos

Product Parameters

Model No.		300L	400L	500L	600L	800L
Concrete Mixer	Drum Capacity	300L	400L	500L	600L	800L
	Drum Mouth	450mm	516mm	566mm	566mm	600mm
	Drum Max.Dia.	700mm	800mm	900mm	900mm	1000mm
	Drum Height	777mm	851mm	920mm	1040mm	1205mm
	RPM of Drum	18-25 rpm
	Lower Drum Thickness	4mm
	Upper Drum Thickness	3mm
	Productivity	3-8m³/h	5-12m³/h	8-16m³/h	10-18m³/h	14-22m³/h
	Dimension	2645x1090x1429	2800x1120x1481	2897x1120x1616	2879x1120x2000	2960x1120x2140
Engine	Diesel engine	6HP		9HP
	Gasoline engine	6.5HP		9HP
	Electric motor	1.5KW	2.2KW	3KW
	Starting System	Recoil / Electric
Unit Package	Net Weight	250kg	270kg	320kg	330kg	420kg
	Gross Weight	290kg	310kg	370kg	380kg	480kg
	Package Size	1835x810x1090	2030x910x1175	2070x1000x1400	2070x1100x1500	2110x1150x1650
Container Loading	20GP	22	20	12	10	6
	40HQ	52	44	36	36	12

Engine Details

Engine type				Brand we use		Power		RPM of engine		Capacity used to
Electric engine						1.5kw-5kw		1800		260L-800L
Gasoline engine				Lifan,Loncin		3HP-9HP		1800		260L-800L
air-cooled diesel engine				lifan,Kipor		3.5HP-9HP		1800		260L-800L
Water -cooled diesel engine				Jiangdong etc.		8HP		1800		260L-800L

Engine Pictures


Packaging & Shipping

Packaging & Shipping
Packaging Detail:

1.Standard export packing or according to customer`s requirements
2.use crane/forklist to load the machines into the container
3.use the wire to fasten the machines in order to keep them stable
4.use the cork wood forbid collision

Delivery Detail:
Delivery Detail:Swift delivery,within 15-30 days after receiving the deposit

Products Package and Loading
