Vmd-1270 Vertical CNC Deep Hole Gun Drilling Machine for Metal Machining

Product Description

Drilling stands as the cornerstone of machining operations, renowned for its vast applicability across diverse fields. Traditional drilling equipment such as bench drills, milling machines, and radial drills often tether operators to monotonous, repetitive tasks, compromising on both quality and safety. The advent of the CNC era heralds a revolutionary transformation with the inception of CNC deep hole drilling machines. This innovation liberates laborers from manual constraints, resolves the persistent bottleneck of deep-hole processing, and achieves unparalleled quality equivalent to conventional drilling methods in drilling, enlarging, and expanding. Moreover, it facilitates automatic chip removal and CNC precision positioning, offering seamless and efficient automatic processing.

3 Axis CNC Deep Hole Drilling Machine	4 Axis Vertical CNC Deep Hole Drilling Machine	Multi-Spindle CNC Deep Hole Drilling Machine	6 Axis CNC Deep Hole Drilling Machine

4-Axis Vertical CNC Deep Hole Drilling Machine Introducing a cutting-edge vertical deep hole drilling machine, featuring a specialized short gun drill designed for precision small hole processes, especially advantageous for injecting pinhole batch operations. This high-tech equipment boasts exceptional precision, rapid speed, and user-friendly operation, all while conserving manpower. It finds extensive applications in industries such as medical equipment, aerospace, hydraulic oil pumps, and automotive spare parts, proving its versatility and reliability.

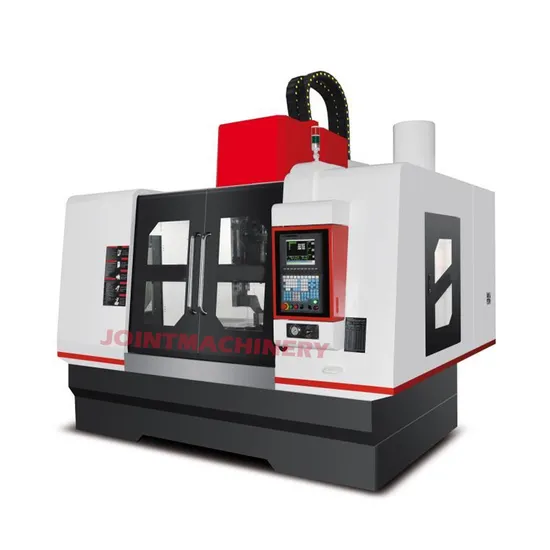

VMD-1270 Vertical CNC Deep Hole Gun Drilling Machine for Metal Machining

Model	Unit	VMD-1270
Inner diameter of drilling	mm	1.5-25
Max drilling depth	mm	380
Table size	mm	1400*700
X/Y/Z axis travel	mm	1200*700*480
Z2 axis travel	mm	480
Drilling cutting speed	m/min	1-300
Spindle taper		BT40
Max spindle rotary speed	rpm	10000
Spindle motor power	kw	7.5-11
X/Y/Z axis motor	kw	3.9/5.9/5.9
Z2 axis motor	kw	5.9
Load weight	kgs	2000
Machine weight	kgs	7500
Machine dimension	mm	3300*4200*3300
