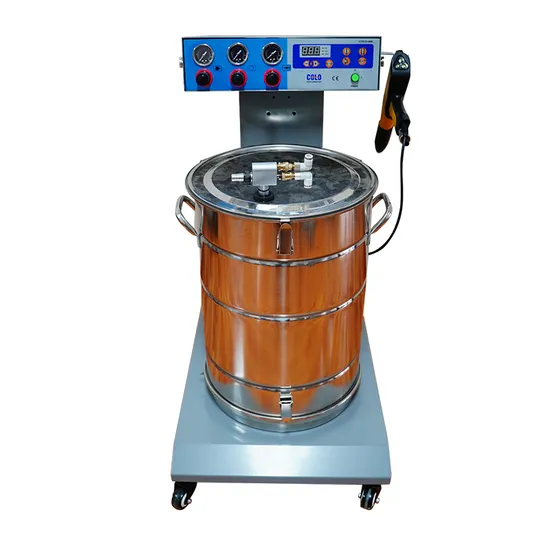

COLO-660 Electrostatic Manual Powder Coating Machine Cheap

Product Description

COLO-660 Electrostatic Manual Powder Coating Machine Cheap
COLO-660 Electrostatic Powder Painting Machine Manual Coating System
1) 0-100 Digital adjustable KV, fully adjustable amperage
2) Pulse Power Technology for beating Faraday Cage Effect, able to cut Pulse Power on and off.
3) With three setting program,for flat shape workpiece,complicated shape workpiece,recoating,easy for operation.
4) Fully Adjustable Air for Pump on Pressure, Dosage and Nozzle Rinsing Air.
5) Ergonomic 100kv powerful spray gun, comes with Full Array of Nozzle Assortment.
6) Field Tested and Proven to operate in the toughest environments.
7) Flexible and easy-moving trolley, small dimension, save space.

Electrical data
Power range	220V/110V
Frequency	50HZ /60HZ
Temperature range in use	-10 ºC+50 ºC
Powder Gun
Gun weight	500G
Rated output voltage	24VDC
Input voltage	- 200kv
Maximum output current	180Ua(max)
Maximum output voltage	0-100KV ( adjustable)
Maximum powder injection	600g/min
Polarity	negative (-)
Pneumatic data
Maximum input-air pressure	10kg/cm
Optimum input-air pressure	6kg/cm
Minimum input-air pressure	4kg/cm
Maximum oil vapor content of compressed air	0.1ppm
Maximum compressed-air consumption	13.2 m3/h

Product Parameters

Electrostatic Coating Control
1, Clear and user-friendly operating interface for quickly and easily setting the coating parameters.
2, * 0-100kV adjustable voltage is ideal for powder coating objects with different shapes. 3, Flexibile and reliable regulations of pneumatic parameters.
4 intelligent coating modes
One-touch intelligent operation buttons give a quick access to powder coating, different shapes of metal parts, namely flat parts coating mode, corner coating mode, re-coating mode, with a new pulse coating technologies maximizing the electrostatic effect
100kv Powder Spray Gun
This electrostatic powder spray gun is lightweight and easy to operate.
Its output voltage reaches 100KV. which maximizes powder charging capacity, and maintains high transfer efficiency for a long period.
Wide Application Nozzle Assembly
* Round spray nozzle, fan spray nozzle and extension nozzles are included.
* Greater flexibility to master any coating task.
* Non-stick materials prevent powder accumulations in nozzles.
Packaging & Shipping
for this Powder coating Package ,it require 20GP .so we normally ship via sea ,we will use woodern carton& pearl wool
FAQ

Q1.How to order powder painting machine?
A:send me inquiry - i will make proforma invoice -you can pay to our bank account or use credit card-after getting payment ,will ship to you.
Click Here to send me inquiry .
Q2:How long does it take for getting this powder coating equipment?
A: we need take 25-30 days for manufaturing
Q3:Which express you use ?
A: for this set ,we will ship via sea
Q4:What is the warranty?
A:1 year warranty.but if you have any problems in your long time using ,you can contact us anytime
Q5:What about replacement spare parts?
A:we provide spare parts. so just send us email ,tell us the order quantity,then we will send invoice and ship spare parts to you
Buying Guide
We can ship this products in 30 working days after payment .sea shipping to your contry .
If you are interested in this product ,pls feel free to contact us. Click here to send me inquiry ,wil send you proforma invoice
