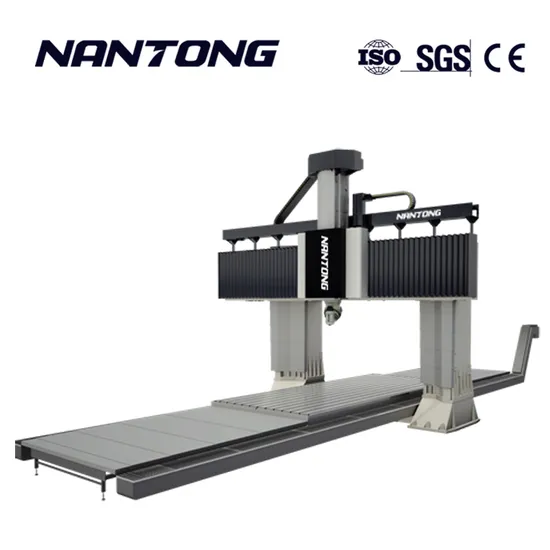

Moving Double Column Milling Machine with Unique Design

Product Description

Detailed Machine Parameters

Model	Unit	DSK-2516	DSK-3020	DSK-4025
Travel
X axis	mm	2,500	3,000	4,000
Y axis	mm	2,600
Z axis	mm	500 (800 - opt.)
W axis		1,200 (1,500/2,000 - opt.)
Distance between columns (max. workpiece width)	mm	2,600
Work table
Length	mm	2,500	3,000	4,000
Width	mm	1,200	1,600	2,000
T slot (width x number x pitch)	-	28x7x180
Max. table load	kg	5,000	9,000	12,000
Spindle
Spindle motor	kW	15/22/26 (30/37 - opt.)
Spindle speed (gear type)	rpm	4,500 (6,000 - opt.)
Spindle taper	-	BT 50 / ISO 50 /
Feed
Rapid feed-rate (X/Y/Z/W)	m/min	10/10/12/2		8/10/12/2
Cutting feed-rate	mm/min	7,000
Accuracy
Position accuracy	mm	±0.005/300; 0.015/ full travel
		P0.035	P0.045
Repeatability	mm	±0.003
		Ps0.028	Ps0.03
ATC
Tool magazine capacity	pcs	32 (40/60/90 - opt.)
Max. tool length	mm	350
Max. tool weight	kg	20
Max. tool size (full tools)	mm	Ø125
Max. tool size (next pocket empty)	mm	Ø245
Others
Power consumption	kVA	65
Compressed air	kg/cm2	6.5
Machine weight (approx.)	tons	62	64	66
Floor space (LxWxH) (approx.)	m	13.0x7.8x6.6	14.8x7.8x6.6	16.7x7.8x6.6

State-of-the-Art Machine Configuration

Automatic lubrication system

Spindle oil cooler

Air blast through spindle

Manual Pulse Generator

Working lamp

3-color alarm lamp

RS-232 interface

Heat exchanger for electrical cabinet

Water gun and air gun interface

Cutting coolant system

Twin auger chip removal system

Belt type chip conveyor with cart

X axis Heidenhain Linear Scale

Sub-table

3 axes manual pulse generator for mold processing

Coolant through spindle at 20/40/70 bar

Coolant through tool holder interface

Air conditioner for electrical cabinet

Transformer

Oil skimmer

Oil mist collector

Company Overview
NANTONG YIJI MACHINERY CO., LTD
Established in 1988, Nantong YIJI Machinery Co., Ltd specializes in the production of advanced move column CNC machine centers, floor-type boring machines, CNC gantry milling machines, and comprehensive automated solutions. We are dedicated to the philosophy of 'Quality is essence, excellence, full participation,' which drives the exceptional standards of the 'YIJI' brand. Our company excels in specialized design, mature craftsmanship, rigorous quality control, swift integrated solutions, and outstanding after-sales service, earning the trust of a vast customer base. Our diverse product range has achieved significant market penetration, with strong sales in over 30 countries across Europe, America, and Southeast Asia, along with an excellent reputation. We hold import/export rights, export product licenses, CE certification, and have passed the ISO9001 quality system certification.
Innovation knows no bounds. Techniques shape the future. We are committed to providing you with our expert technology, high-quality machines, and unparalleled service.
Our Comprehensive Service
Warranty & After-Sale Service
1. 24-hour technical support available via E-mail or telephone.
2. Additional accessories available for the machine. Custom designs or programs based on your drawings are welcomed.
3. All our products come with a 12-month warranty period.
4. Damage caused by human error is not covered.
5. We provide materials or technical support to assist our customers in resolving issues.
We will cover the delivery charges for any repair, return, or replacement cases.

We look forward to your inquiry!
