CE Proved Two Cabin Material & Passenger Construction Hoist

Product Description

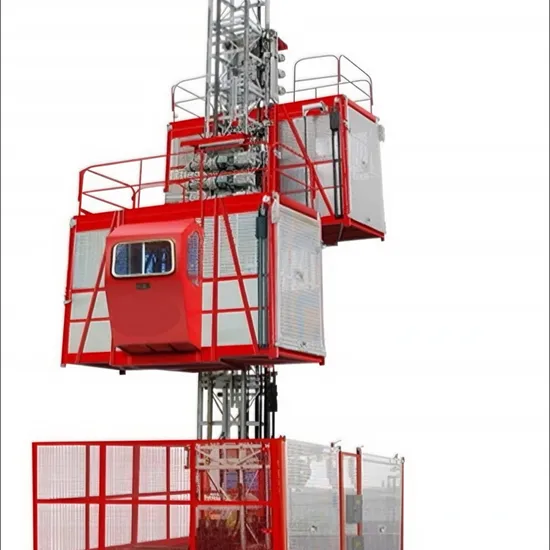

Product Overview XYJJ - SC100/200 Construction elevator XYJJ - SC100/200 construction elevator is researched and designed by Guangdong Hengshuming Construction Machine Manufacturing Co. The machine has reasonable design, novel structure, smooth operation, complete and reliable safety devices. It is easy to install and maintain and has the following features:1, the transmission mechanism adopts two-drive or three-drive form, the rack and pinion force is uniform, safe and smooth.
2,To ensure the safe operation of the elevator, safety switches such as overload and speed limit are set in the circuit. When the above situation occurs in the operation, the elevator will avoid accidents immediately and automatically. Each door on the cage is also equipped with a limit switch, so that when any door is opened abnormally, the cage cannot start or stop running immediately.
3,Each cage is equipped with fall arrester, which can effectively prevent the cage from falling and ensure the safe and reliable operation of the elevator. FEATURES AT A GLANCE
hoist The cage frame adopts bending process, all are national standard steel, the cage adopts baking paint process, the body is safe and solid. Hot-dip galvanizing process for cage bottom plate The bottom plate of the cage is hot-dip galvanized, which can be maintained for about 50 years without having to be repaired; it is good for extending the service life of the equipment. Three-drive structure. The motor, reducer low noise, starting, braking smooth, products, institutional components are used in domestic and foreign well-known brand manufacturers, available to customers to choose from!
stable transmission
Smooth transmission, low vibration, comfortable ride Lightweight structure, easy maintenance and disassembly
.Cage Inspection Door
Each cage of the vertical transportation construction hoist is equipped with a testing door, which is convenient for the maintenance and overhaul work in the later stage of use (mainly for the oiling of the gears and racks and checking the tightness of the standard section bolts and rack bolts), and effectively avoids the insecurity of standing on the top of the cage for operation. PRODUCT SPECIFICATIONS

Technical parameters	SC100/200 Frequency Construction hoists
Height	200m
Rated load	2000kg
Maximum capacity	009/009
Electormotor	11×3kw
Standard motion speed	1.1/1.35m/s
Cage	Single/Double
max .free end height(m)	7.5
Mast section dimension	650×650×1508mm
Installation dimensions from center of rail frame to building wall	2800-3200mm
Safe and protection system	Upper and below limited switches,upper and below limit utmost switches,gate limited switch,falling avoiding safe device,cushion device,safe lock of gate,counterweight rope breaking or loose protecting device,safe hook,The safety device against overload,Anti-punching standard section etc.

PRODUCT CONFIGURATION
CONSTRUCTION ELEVATOR CAGE Our Construction Elevators may also be referred to as Man-Lifts, Buck Hoists, Temporary Elevators, Material Lifts, Rack & Pinion Hoists, Construction Hoists, Personnel and Material Hoists, etc. but they all serve the same purpose: transporting men and materials vertically in a safe and speedy manner. Our Construction Elevators can be temporarily installed for: 1:Construction or Renovation of commercial or industrial buildings 2:Turnarounds for Oil Refineries 3:Underground and Above Ground Mining Applications MAST SECTION 1:The high quality seamlesssteel pipe is good vertically, anti-pressure, anti-aging, thickness and so on), it offer a well 2:rail for cage climbs on. 3:HF high quality tube&pipe 4:Steel plate with high quality, steel plates are bent of U shape to stren-gthen the mast section 5:Mast section with galvanized coat or heat spray coat can be chosen 6:Steel round bar Q235B with high quality and strengthen the mast section
