Szgh-46j Electric Spindle Fast Speed Turning Cutting CNC Lathe Machine

Product Description

Product Description

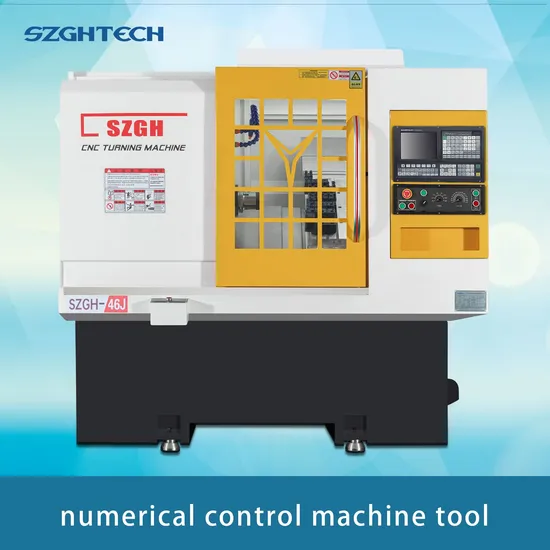

SZGH-46J Electric Spindle Fast Speed Turning Cutting CNC Lathe Machinehttps://www.made-in-china.com/sendInquiry/prod_KFnfSvLjEuAe_SOqtUifEgYHK.html?plant=en&from=shrom&type=cs&style=3&page=p_detail
Product Overview
SZGH-46J is suitable for batch production of copper, iron, aluminum and stainless steel bars within 45mm, and batch production of open-type forged parts with automatic feeding of pellets within 60mm. It can also be equipped with hydraulic chucks for single-piece production of parts within 350mm.Using multiple patented technologies such as high rigidity and anti-deformation structure, it is suitable for processing products with a single-side cutting amount within 4mm, precision tolerance within ±0.0075mm, and smoothness within 1.6. It is widely used in the processing of large parts with high precision and rigidity. Through careful design and matching, the performance of each accessory can be fully utilized to achieve the best cost-effective ratio.
Standard Configuration

Project		Unit	Standard value	Max value
Processing capacity	Max. diameter of bar bore	mm	45	-
	Max. particle diameter (disk type)	mm	400	420
	Max. length of workpiece	mm	300	320
	Cutting amount of stainless steel on one side	mm	3	4.5
	Machining accuracy of the workpiece	mm	±0.0075	-
	Surface roughness	Ra	1.6	1.6
	the height of center tool holder	mm	50	-
	Turning Diameter	mm	420	-
	Square Knife Specifications	mm	20*20	-
Travels	X-axis effective travel	mm	900	-
	Z-axis effective travel	mm	300	-
Feed	X-axis rapid traverse	m/min	25	30
	Z-axis rapid traverse	m/min	25	30
	X-axis servo-motor power	kW	1.5	-
	Z-axis servo-motor power	kW	1.5	-
Spindle	Max.Spindle Speed	rpm	3500	4000
	Spindle Motor Power	kW	5.5Kw servo	7.5kw servo
	Spindle nose taper	-	A2-5	-
	Support hydraulic chuck size	inch	8	10
Dimensions	Dimensions	mm	2100*1500*1900	-
	Total Weight	kg	2350	-

Machine tool specifications and component items		Specification	Standard	Optional
Part Specifications	Screw	32mm	Taiwan ball grinding precision grade	-
	Guide rail	30mm	Taiwan H-class linear guide rail	-
	Bearing	-	Yashu self-made high rigidity barrel spindle	-
	Spindle motor	5.5kW	Server host	3.7kW servo spindle
	Feed servo	1.5kW	Yashu Dongmechuan High Speed Servo	-
	CNC Control	Ac8F-G	Yashu self-developed high-speed CNC system	-
Machine specifications	Bed Type	45°	Slant Bed	-
	Base form	-	Heavy-duty anti-deformation patented base	-
	Clamping method	-	hydraulic clamping	-

The above configuration parameters are for reference,and the configuration listed in the price composition and physical acceptance shall prevail.
CNC CONTROLLER SYSTEM
1)2-5 Axis Fully English Type CNC lathe controller
2) 800x600 8.4 inch real color LCD displayer
3) Electric Turret & Binary code turret,Max: 99 pcs tools
4) Support ATC , Macro function and PLC function
5) Max speed is 60m/min, feeding speed is 24m/min
6) Adapted servo spindle can realize spindle continous position,rigid tapping,rigid screw processing
7) High anti-jamming switch power( 100V-240VAC 50Hz/60Hz -> 24VDC)
8)64MB Memory,56Mb user store room
9) With USB interface,it supports file operation in flash disk,system configuration and software upgrade
10)Position Control Mode:Pulse+Direction/AB Phase,Dual Analog voltage output of 0~10V
11)32 bits ARM microprocessor+FPGA Technology
12)Basic I/O: 36X36 , can be edited freely
13)cutter offset
14)Installing dimension, electric interfaces, instruction system and operating windows being compatible with those of GSK 980TDb Turning CNC System
Spindle Rotary cylinder Machining of long shaft
The self-made high-speed paired The standard configuration adopts a lt can realize the processing of 120mm
bearing unit spindle adopts angular hydraulic rotary cylinder to make the long workpiece with the nozzle holder.
contact high-speed bearings,and the clamping force stronger, more stable
normal speed is 3500/min, which is and have a longer
suitable for large-scale machining. The service life. It can be replaced with
according to different usage occasions pneumatic clamping according to the
of customers. If high-speed and actual situation.
high-gloss requirements are required,a
6000-rpm high-speed electric spindle
can be selected.

ball screw Linear Guides
Taiwan brand 25 mm ball grinding precision grade screw Taiwan brand 25mm Linear Guides precision grade
rod OPTIONAL ACCESSORIES

Product Features
*Can mount right-setting or back-setting chip conveyor, strong chip conveying capacity.
* Anti-deformation patented heavy-duty base, heavy enough to support fast. Heavy enough to support bar and large parts, anti-vibration, improve precision and smoothness.
*The key components adopt high-quality wear-resistant configurations such as Taiwan, and the sleeve and spindle are all dynamically balanced. *Bed adopt flat bed, slide board adopt 30°slant design, high rigidity, good machining flexibility.
*Super compact design, big inside space, modern appearance.
*Base adopt multi layer strengthening rib, ensure bed's strength and stability.
*Adopt high precision integral spindle unit, spindle motor adopt high performance servo motor, big output torque, high speed wide adjustment range.
*Adopt high precision pre-stretched ball screw(double nuts), coupled with feeding motor directly by linkager, high transmission rigidity,can realize μ class precise turning.
*Adopt SZGH electric control package to make electromechanical cooperation play the best efficiency.
