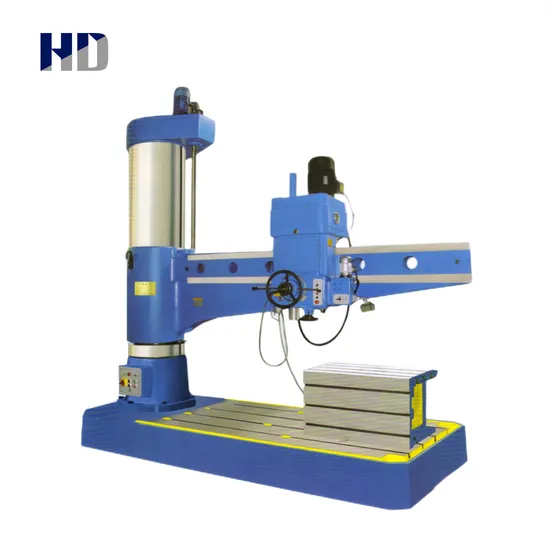

Z30100 Best Price Hot Selling Radial Drilling Machine
Basic Info.
Model NO.
Z30100
Type
Milling Machine
Object
Other
Structure
Other
Milling Cutter Type
Vertical Milling Cutter
Milling Cutter Structure
Other
Controlling Mode
Artificial
Automatic Grade
Manual
Precision
High Precision
Certification
CE, ISO 9001
Condition
New
Machine Type
Radial Drilling Machine
Max.Drilling Capacity
100mm
Spindle Head Travel
2580mm
Spindle Travel
500mm
Spindle Taper
6no.
Spindle Speed
8-1000r/Min
Range of Spindle Feed
0.06-3.20mm/R
Arm Travel
1250mm
Arm Lift Speed
0.61m/Min
Arm Swing Angle
180degree
Drilling Depth Per Revolution Dial
170mm
Max. Torque of Spindle
2450n.M
Max. Force of Spindle
45000n
Main Motor Power
15kw
Arm Lift Motor Power
3kw
Transport Package
Wooden Cases
Specification
4650*1630*4425mm
Trademark
HAIDI
Origin
China
HS Code
8459590000
Production Capacity
30 Sets/Month
Packaging & Delivery
Package Size
495.00cm * 193.00cm * 473.00cm
Package Gross Weight
22000.000kg
Product Description
Product PictureSpecification Parameter
| Specification | Unit | Z3040 | Z3050 | Z3080 | Z30100 | Z30125 | |
| Max.drilling capacity | mm | 40 | 50 | 80 | 100 | 125 | |
| Distance from spindle center to column axis | Max. | mm | 1200 | 1600 | 2530 | 3150 | 4000 |
| Min. | mm | 330 | 350 | 530 | 570 | 600 | |
| Spindle head travel | mm | 870 | 1250 | 2000 | 2580 | 3400 | |
| Distance from spindle nose to work base | Max. | mm | 1000 | 1220 | 2000 | 2500 | 2500 |
| Min. | mm | 260 | 370 | 550 | 750 | 750 | |
| Spindle travel | mm | 270 | 315 | 450 | 500 | 560 | |
| Spindle taper | No. | 4 | 5 | 6 | 6 | 80 | |
| Spindle speed | r/min | 75-1220 | 25-2000 | 16-1250 | 8-1000 | 6.3-800 | |
| Spindle speed steps | 6 | 16 | 16 | 22 | 22 | ||
| Range of spindle feed | mm/r | 0.1-0.25 | 0.04-3.2 | 0.04-3.2 | 0.06-3.20 | 0.06-3.20 | |
| Spindle feed steps | 3 | 16 | 16 | 16 | 16 | ||
| Arm travel | mm | 580 | 580 | 1000 | 1250 | 1250 | |
| Arm lift speed | m/min | 1.3 | 1.2 | 1 | 0.61 | 0.6 | |
| Arm swing angle | ° | ±180 | ±180 | ±180 | ±180 | ±180 | |
| Drilling depth per revolution dial | mm | 115 | 122 | 151 | 170 | 170 | |
| Max. torque of spindle | N.m | 300 | 500 | 1568 | 2450 | 3136 | |
| Max. force of spindle | N | 6300 | 18000 | 35000 | 45000 | 49000 | |
| Main motor power | Kw | 2.2 | 4 | 7.5 | 15 | 18.5 | |
| Arm lift motor power | Kw | 0.75 | 1.5 | 3 | 3 | 3 | |
| Worktable size | mm | 400*560 | 500*650 | 800*1000 | 800*1250 | 800*1250 | |
| Machine weight | Kg | 1600 | 3500 | 10500 | 20000 | 28500 | |
| Machine dimension | mm | 1800*760*2100 | 2500*1070*2880 | 3730*1400*3835 | 4650*1630*4425 | 5817*2000*5120 | |
Company Profile
Dalian Haidi Machinery Co.,Ltd is a professional manufacturer that specializes in the development, research and production of single-column vertical lathe, double-column vertical lathe, horizontal lathe, radial drilling machine, slotting machine, boring-milling machine, machining center, customized special machine tool, and other equipment. The researched products by our company have such advantages as a great variety, complete specification, advanced technology and outstanding quality.
Our company, founded in June 2007, has a registered capital of RMB 60 million Yuan and covers a building area of 30,000 square meters. Now we have more than 200 staff members, including 11 senior engineers, 8 senior managerial staff,over 160 technical workers.
Our own casting factory was established in 1983 and has an annual output of over 20,000 tons. Our company is the largest enterprise that specializes in the casting of machine tool in southern Liaoning.In the meantime, it has offered great support to speed up our company's product research and production and made great contribution to making sure products are supplied to customers in the shortest duration.
Our company follows the principle of "independent innovation, govern enterprise by good virtue and prosper enterprise by good faith". We shall work hard persistently to make innovation and breakthrough and strive to become a first-rate enterprise. We would like to work hand in hand with all our friends toward a brilliant future.
