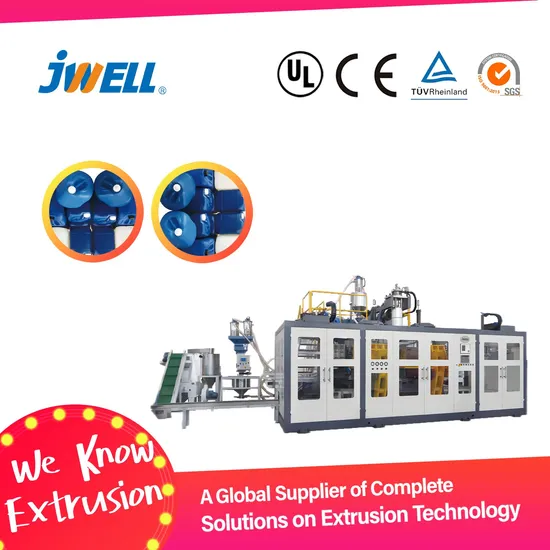

Single Extruder Machine Chemical Packaging Blow Molding Machine 50-100L

Product Description

Product Description
Product Parameters
Descriptions:
·Suitable for producing 15-30L different size Chemical packaing jerrycan.
·Adopt continuous type die head, up-blowing structure, convenient for product auto-deflashing on-line, scrap conveying on line, finished product leak testing on line, conveying,packing, etc.,reducing the working cost and increasing the production ratio.
·Adopt toggle type platen structure, have the advatages of uniform-clamping, big clamp force, assembling large mould, easier dismounting& assembling the mould.
·Optional multi-layer co-extrusion system.
·Optional view strip line system.
·Optional hydraulic servo control system.

Model	Unit	BM30DN-C
Max product volume	L	30
Dry cycle	Pc/h	450*2
Die head structure		Continuous type
Main screw diameter	mm	100
Max plasticizing capacity (PE)	kg/h	190
Driving motor	Kw	55
Accumulating volume	L	22
Oil pump motor power(Servo)	Kw	300
Clamping force	KN	340-860
Space between platen	mm	580*600
Platen size W*H	mm	500*600
Max.mould size	mm	800
Heating power of die head	Kw	20
Machine dimension L*W*H	m	5.6*4.8*4.5
Machine weight	T	18
Total power	Kw	125

Certifications
Company Profile
Jwell was founded in 1997, China Plastics Machinery Industry Association vice president unit, plastic extrusion equipment, chemical fiber spinning complete sets of equipment manufacturers. The production bases of Jwell company cover about 7,000,000 square meters and are consisted with 8 parts, which are located in Jiading district of Shanghai where the head office of the company locates, Haining and Zhoushan City of Zhejiang Province, Taicang City and Liyang City of Jiangsu Province, Chuzhou City of Anhui Province and Thailand. The company has 26 professional companies and nine large-scale gold processing plants and three heat treatment nitriding plants, with an annual output of 3000+ sets of high-grade plastic extrusion production lines and other complete sets of equipment, marketing in more than 120 countries and regions.
Jwell has a high-quality team and an experienced team of mechanical and Electrical Commissioning Engineers, as well as an advanced machining base and Standard Assembly Workshop.
Our Advantages
Workshop Processing
Quality Control
Exhibition
Packaging & Shipping
FAQ
Q1. What about the payment way?
A1. By TT, L/C at sight or ****** trade assurance. 30% down payment should be paid after contract is valid, 70% balance should be paid before shipment.
Q2. Installation and stuff training available from you?
A2. Yes, we have rich engineers around the world which can send to your factory and train your workers. Also we can online guide your members.
Q3. How long is the guarantee?
A3. We offer you high quality machines with 12 months guarantee and reply you as soon as possible within 6 hours.
Q4. If the machine some parts is broken one day, how can we get help from you?
A4. We will send you spare parts free of charge If they are in warranty, not including easy-broken parts. For easy-broken parts, we will only charge a cost fee.
Q5.How does your factory do regarding quality control?
A5.We have passed the IS09001:2000 Quality Management System and CE certificate and we have a special QC department in charge of products' quality. If you also need other certificates, we also can help to apply.
Q6. What is your packaging?
A6. Our conventional packaging is: After doing the anti-rust treatment, wrap the plastic film around the machine and then fix the machine on the wooden bracket.
Q7. How can we check the machines before delivery?
A7. We can provide online checking when testing the machine on site. We will take and prepare detailed testing videos for your checking before the delivery. We accept third-party testing. Except above points,we will provide detailed testing report.
