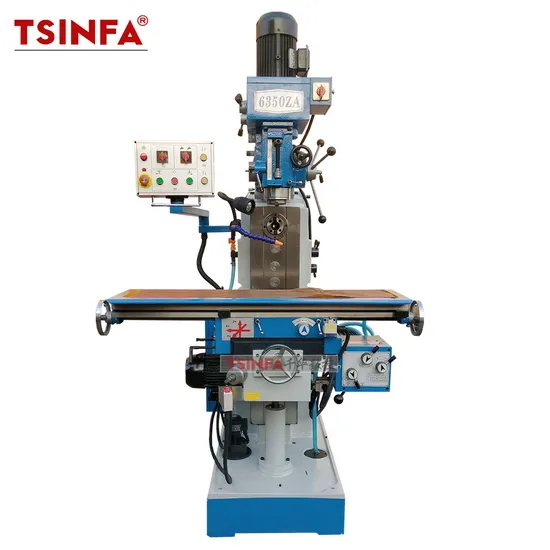

Manual Universal Milling Machine Drilling Machinery Zx6350za

Product Description

Product Description
Application
ZX6350 series machine tools can be used not only for vertical milling, but also for horizontal milling. With corresponding accessories, it can also process various rotary surfaces and grooves.
It is an ideal processing equipment for machinery manufacturing, mould, automobile, motorcycle and other industries. It is an economical drilling and milling machine.
It can be used for drilling, milling, boring, grinding and other cutting functions. It has good versatility, simple structure and convenient operation and maintenance.
Product Parameters

Specification	UNITS	ZX6350C ZX6350D ZX6350A	ZX6350ZA
Max drilling dia.	mm	50	50
Max end milling width	mm	100	100
Max vertical milling dia.	mm	25	25
Max boring dia.	mm	120	120
Max tapping dia.	mm	M16	M16
Distance from spindle nose to table surface	mm	80-450	80-450
Spindle taper		M.T.4()(V) 7:24 ISO40 ()(H)	N.T.4()(V) 7:24 ISO40 ()(H)
Spindle speed range	r.p.m	115-1750()(V) 40-1300()(H)	90-2000()(V) 40-1300()(H)
Spindle travel	mm	120	120
Table size	mm	1200×280	1200×280
Table travel	mm	600×280×400	600×280×400
Overall dimensions	mm	1350×1285×2300	1350×1285×2300
Main motor	KW	1.5/2.2()(V) 2.2()(H)	1.5/2.2()(V) 2.2()(H)
G.W/N.W (kg)	Kg	1200/1100	1300/1200

Detailed Photos
