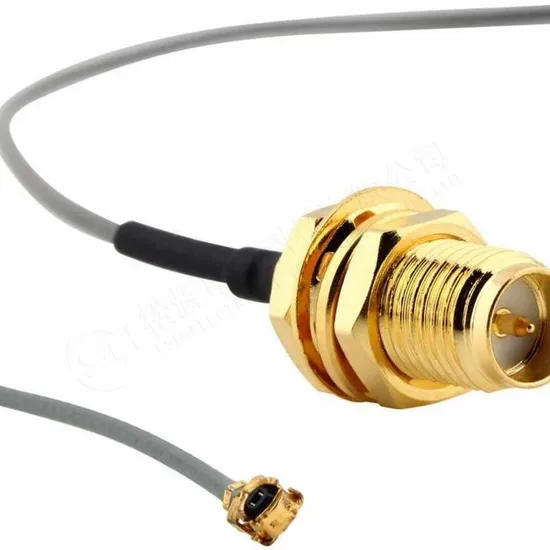

OEM RF Coaxial Cable Connector Rg316 Assembly Antenna Extender Cable Adpaper Coaxial Jumper Cable

Product Description

Electronic Component BNC SMA SMB TNC MCX MMCX Coaxial RF Connector
In addition to our standard offering, HT also offers a variety of customized options for these interconnect products, which include different connector options, higher and lower frequency coverage, extended environmental testing, etc. Our team of dedicated Engineers will work with you to design and build a product to your specifications. + RF connectors are used to connect cables to other devices and are specifically designed to maintain the shielding on the cable. High-quality connectors offer reliable, long-lasting connections, Low Pim Connectors.
There are two distinct connector styles; male and female. Male connectors have a protruding metal pin in the center, whereas female connectors have a receptacle to receive that pin. Depending on the connector size and frequency, some may be sexless and mounted flush instead of mating.
Within digital, video, audio, Network,RF Coaxial system, and microwave industries, there are several varieties of coaxial cable connector types. Each offers unique benefits based on the end use or application. Below are some of the most common coaxial connector types, along with their distinguishing characteristics and intended applications,DIN 7-16, N, 4.3-10, BNC, SMA, NEX10, MCX, TNC, QMA, IPEX/U.FL etc.
RF Cable Assemblies high-frequency cables are suitable for low-loss and distortion-free transmission of high-frequency signals. The fastest transmission of data takes place directly which is why assembled coaxial cables from LSH ensure powerful and uncomplicated data communication. The shielded design makes LSH assembled coaxial cables far less sensitive to external interferences such as damage or electromagnetic fields. Wired solutions are suitable for highly complex infrastructures where flexibility, security and performance count, such as measurement lines in test laboratories. Furthermore, they are used in electrical and radio technology, communication and data technology - all areas where high demands on transmission quality or shielding are made.
The product range incorporates all commonly available RF cable assemblies and the development of customized solutions from DC up to 50 GHz.
LSH offers RF adapters design as well as T and Cross RF adapters. RF adapters include some connectors interface types such as SMA,TNC, N, BNC, SMP, 4.3-10, DIN 7-16, 2.92mm, 3.5mm, NEX10, QMA ,MCX, UHF and F.
RF adapters are available in male, female, plug, jack, receptacle or sexless gender, in 50 Ohm, 75 Ohm, 78 Ohm or 95 Ohm impedance and in standard polarity or reverse polarity. RF adapters are available in quick disconnect (QD), push-on or standard interface as well as straight, 45 degrees right, radius right angle or right angle versions. LSH offers RF adapters in standard and high performance with brass and stainless steel body as well as some hermetic, bulkhead or 4 hole panel configurations.

Type	SMA Connector
Gender	Male plug, Female socket
Mating Types	Snap On
Impedance	50 / 75 ohm
Frequency Range	DC~6 GHz
Cable Terminations	Crimp / Solder
Features	30% smaller than SMB
Popular Applications	Space Saving, Applications RF / Wireless

Type	N Connector
Gender	Male plug, Female socket
Mating Types	Threaded
Impedance	50 / 75 ohm
Frequency Range	DC~11 GHz
Cable Terminations	Crimp / Clamp Solder
Features	RP (Reverse polarity)
Popular Applications	Excellent Performance RF / Wireless

Product Applications
Company Profile
LSH Electronic Technology Co.,LTD was Founded on June 2000, The factory area is 7500 M2.LSH focuses on production design, professional hardware products and RF-connector product manufacturing. We have accumulated nearly 20 years of production and processing experience and a broad domestic and foreign raw material market with more than 100 high-precision automatic lathes, CNC lathes and a full set of secondary processing equipment, the company has added a new CNC lathe division since 2016 to meet the needs of different customers. Our customers from Japan, American and taiwan many international well-known enterprises to establish a long-term, good relations of cooperation.
The Raw Materials :Copper( Brass, beryllium copper, lead-free copper, etc),Free cutting iron, Stainless steel, Die steel, Aluminum alloy, PTFE, etc .
The main products: RF-Connector ,RF-Antenna ,PTFE,PEEK,PEL,POM insulators , Precision communication electronic spare parts,Precision auto parts.
Certification
LSH also approved ISO9001:2015. All the products approved CE,ROHS,ETL.
Companies strictly enforce the ISO9001(2015)international quality certification system.
Packaging & Shipping
Each piece packed in an opp bag, each opp bag packed in a small inner box,small boxes put in one standard exporting carton, then cartons packed in one pallet.
Sea Shipping, Air Shipping and Express(DHL, Fedex, UPS)
Delivery Details:
Sample Order: 3-5 Days
Bulk Order: 7-14 Days after receiving your payment.
FAQ
Q1:Are you manufacturer?
A: Yes, We are manufacture since from 2000, is a well-known company with good reputation in China.
Q2:If I need sample, could you support?
A: We can supply you with the sample for free, but the delivery charges will be covered by our customers. For avoiding the misunderstanding, it is appreciated if you can provide the International Express Account for Freight Collect.
Q3:What's your MOQ?
A: 1000 pieces per model.
Q4: How do you charge the mold fee?
A: In case we need to open new mold for your ordered profiles, the mold fee will be refunded to customers when your order quantity reaches a certain amount.
Q5: What is the difference between theoretical weight and actual weight?
A: Actual weight is the actual weight including packaging. Theoretical weight is identified according to the drawing, calculated by of the weight of each meter multiplied by the length of profile.
Q6: How do you quote price, per piece?
A: We provide more than two pricing modes
Q7: How can you ensure high quality?
1) We have our own material production workshop and die factory for 20 years.
2) 100 workers, and workers should be well trained before go to work.
3) 100% QC on line and final inspection, no any defective products can be out from our factory.
4) We have a lot of certificates to ensure our quality, such as ISO9001:2015, ,SGS
certificate, etc.
Q8:What's your payment term?
A: 30% T/T deposit + 70% T/T before shipping.
