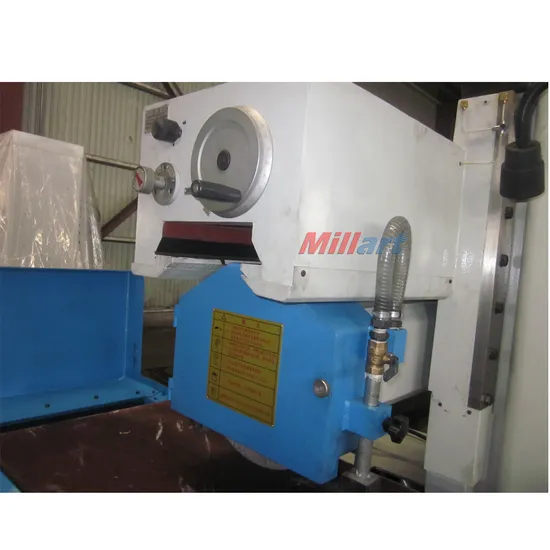

Wheel Head Moving Surface Grinding Machine, Heavy Duty Surface Grinder Machine M7140A

Product Description

Product description:
This series of surface grinder is most suitable for the grinding steel, casting and non-ferrous parts of machine manufacturing industry.
The accuracy of the machine has reached the National Standard for horizontal spindle & rectangular worktable surface grinder.
The longitudinal movement of the worktable is driven by vane pump, which makes the movement smooth and low noise.
The bearings of the wheel head spindle adopt bimetal shell bearing, which can afford heavy impact and make the machine able to carry out heavy load grinding.
The cross movement of the wheel head can be driven by hand or by hydraulic oil automatically. It is easy to operate. The vertical feed of the wheel head is driven by hand. It is also assembled with rapid elevating motor, which can reduce the intention of work labor as well as enhance the work efficiency.
The machine moves smoothly and has reliable performance, low noise and stable accuracy. It is easy to operate and deeply welcomed by the customers.

Technical parameter :
Specification:

Model		Unit	M7140Ax1000	M7140Ax1600
Worktable size		mm	400x1000	400x1600
Max machining dimension		mm	400x1000	400x1600
Distance from spindle center to table		mm	600
Longitudinal moving speed of worktable		m/min	3-25
T-slot number		Mm	3x18
Wheel head Cross moving	Continuous feed speed	m/min	0.5-4.5
	Intermittent feed speed	mm/t	3-30
	Hand wheel feed	mm/gra	0.02
Vertical Moving of wheel head	Rapid speed	mm/min	400
	Hand wheel feed	mm/.gra	0.005
Wheel Head motor	Power	kw	7.5
	Rotation speed	Rpm	1440
Total power		kw	11	13.5
Max loading capacity of worktable		kg	620	1000
Chuck size		mm	400x1000x1	400x800x2
Wheel size		mm	400x40x127
Package dimension		cm	320x220x233	500x220x233
Machine Weight		t	5.01	6.51

Standard accessories :

Stand of diamond pen

Wheel extractor

Wheel balancing arbor

Leveling wedges and screw

Blot

Brush

Standard Grinding wheel+Flange

Electromagnetic chuck

Optional accessories :

Dust collector

Balance stand

Wheel flange

Magnetic separator

Paper filter

Magnetic separator and paper filter

Parallel dresser
