High Quality Low Price Rastra De Discos Heavy Duty Disc Harrow for Farm
| US$3,000.00-10,000.00 | 1 Piece (MOQ) |
Basic Info.
Application Field
Agriculture, Livestock, Aquaculture, Fisheries, Forestry
Farming Policy
Dry Cultivating Machinery
Power Source
Diesel
Operation
Soil Preparation Machinery, Continuous Running Operation
Traction Type
Traction
Drive Type
Chain Drive
Arbor Configuration
Horizontal Axis
Certification
EU, CE
Color
Customised
Warranty
1 Year
Key Selling Points
High Productivity
Marketing Type
Ordinary Product
Machinery Test Report
Provided
Video Outgoing-Inspection
Provided
Brand Name
Hr
Dimension(L*W*H)
Standard Size
Transport Package
Standard Packing
Specification
2100 KG
Origin
Shandong, China
HS Code
8432210000
Production Capacity
2000set
Product Description

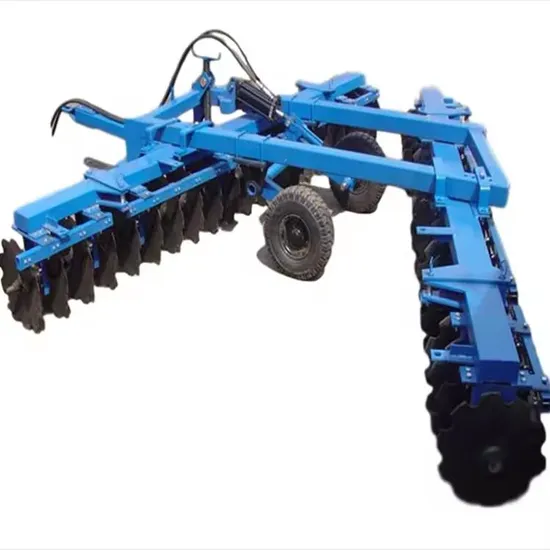

Product DescriptionDisc Harrow1BZ series hydraulic offset heavy duty disc harrow has the high working efficiency , strong capability into the soil, and afterplough loosen soil. This harrow can highly adapt to the sticky heavy soil, uncultivated field and those plots of many weeds. It ismade of square tubes welded together which ensures simple structure and good rigidity. The harrow is also equipped with hydrauliclifting rubber wheels for convenient transportation and small turning radius, thus the production efficiency and lifetime of theharrow is dramatically improved.
Product Parameters
| model | 1BQDX-1.3 | 1BQDX-1.6 | 1BQDX- 2.2 | 1BQDX-2.6 | 1BQDX-3.0 | 1BQDX-3.4 |
| Tillage | 1400 | 1800 | 2200 | 2600 | 3000 | 3400 |
| Deep cultivation | 100-140 | |||||
| Rake blade diameter | 460mm/ 18inch | |||||
| Thickness of rake blade | 3 | |||||
| Number of ra ke blades | 16 | 20 | twenty four | 28 | 32 | 36 |
| weight | 340 | 390 | 440 | 490 | 495 | 530 |
| Supporting power | 30-35 | 35-45 | 45-55 | 60-75 | 75-80 | 80-95 |
| Mounting form | Three - pointed mounted with tractor | |||||
Main Technical Features
Main Feature 1)Steel selection of China's best Angang and Lingyuan steel, good quality is guaranteed. 2)Heat treatment process, strict control of temperature and time, high hardness and good toughness of disc blade. 3)Automatic spray equipment, disk surface smooth color uniform beautiful.
Detailed Photos
Packaging & Shipping
