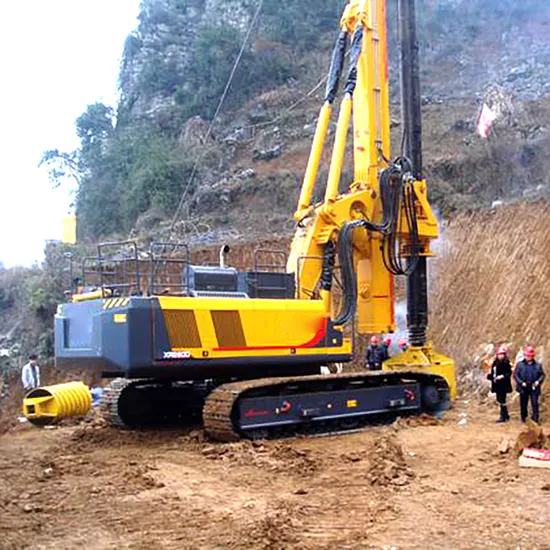

1.5m Drilling Diameter Rotary Drilling Rig Xr150d with 56m Depth with Great Price
Basic Info.
Model NO.
XR150D
Type
Tool Milling Machine
Object
Tool
Structure
Flat
Milling Cutter Type
Angle Milling Cutter
Milling Cutter Structure
Indexable Type
Controlling Mode
Artificial
Automatic Grade
Semiautomatic
Precision
High Precision
Certification
CE
Condition
New
Product Name
Rotary Drilling Rig
Max.Drilling Diameter
φ1500
Max.Drilling Depth
56m
Max.Pull-Down Piston Push
120kn
Transport Package
Nude Package
Specification
8165*3016*3485mm
Trademark
Evangel
Origin
China
Production Capacity
100 Sets/Month
Product Description
1.5m Drilling Diameter Rotary Drilling Rig XR150D with 56m Depth with Great Price
Specification
1 It is economical and efficient, mainly used in media and small-diameter pile civil construction;
2 Diesel engine has load induction and output power auto-control; the fuel consumption drops 5-10%;
3 5-level anti-vibration technology absorbs drilling vibrational frequency all-directionally to guarantee high stability;
4 The special lubricating system makes sure that it can work under high-temperature environment;
5 The removable and symmetrical structure design doubles the service life of rotary drive key;
6 Crowd cylinder has two operation modes-normal lifting and fast lifting to improve push efficiency;
7. Optional chassis incline alarm enhances construction safety;
8 Mast verticality auto-adjusting technology promises the pile accuracy.
| Main performances | Unit | Parameters |
| Overall height | mm | 18,432 |
| Operating weight | t | 46 |
| Max. pile diameter | mm | 1,500 |
| Max. pile depth(friction Kelly/inter-locking Kelly) | m | 56/44 |
| Max. output torque | kN.m | 150 |
| Speed of rotation | rpm | 6.5~40 |
| Crowd force | kN | 160 |
| Line pull | kN | 160 |
| Stroke | mm | 4,250 |
| Main winch | ||
| Line pull(1st layer) | kN | 160 |
| Rope diameter | mm | 28 |
| Max. line speed | m/min | 70 |
| Auxiliary winch | ||
| Line pull(1st layer) | kN | 60 |
| Rope diameter | mm | 14 |
| Max. line speed | m/min | 60 |
| Forward | | 5 |
| Lateral | | ±5 |
