Fully Automatic Adjusted Curving Machine for Standing Seam Roof

Product Description

Product Details
Basic Info.
Model NO.:YX65-300-600

Type:Hydraulic Machine
Power Source:Hydraulic Pressure

Feature:Automation
Warranty:12 Months

Certification:SGS
Customized:Customized

Condition:New
Raw Material:Steel

Usage:Curving Standing Seam Roofings
Motor Power:4kw

Motor Power for Adjusted:0.75kw
Dimension:1500mm/800mm/2000mm

Weight:1500kgs
Forming Steps:4

Thickness:0.6-1.0mm
Curving Speed:10-16m/Min

Export Markets:Global
Additional Info.
Trademark:XHH

Packing:Standard Package for Export
Standard:SGS

Origin:Xiamen, China
HS Code:84552290

Production Capacity:10-15sets/Month
Product Description
Full Auto Adjustment Rolling Curving Machines for Seam Roofings, Full Automatic Adjustment Curving machine With Convex Curved & Concave Curved:
Main Technic Data:
Power: 4KW+ 0.75KW
Thickness: 0.6-1.0mm;

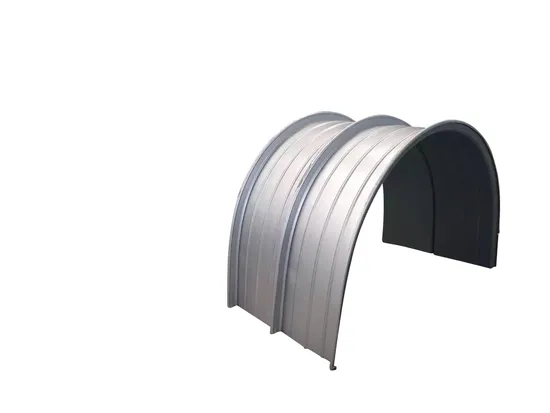

Bending Roof Panels to Convex Curved and Concave Curved, S-shaped and Wave-shape;
Min. Curved Radius for Aluminum roofing: Convex curved 4meters, Concave curved 6meters;
Min. Cuved Radius for Steel Roofing: Convex curved 6meters, Concave curved 8meters;

1.	Size	1500*850*2000mm
2.	Weight	1500KGS
3.	Motor Power	4KW
4.	Motor Power for Adjusting Models	0.75KW
5.	Forming Steps	4 Steps
6.	Curved Thickness for Aluminum	0.6-1.0mm
7.	Curved Thickness for Steel	0.6-0.8mm
8.	Working Speed	10-16m/min

Q1.Are you a trading company or manufacture.
1A: We are a factory.
Q2. Do you provide samples ? Is it free or extra ?
2A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.We could offer the sample for free charge
3Q: Where is your factory located?
3A: Our factory is located in Xiamen City, Fujian Province, China. You are warmly welcome to visit us !
4Q: Can you make the machine according to my design or prototype?
4A: Yes. We have an professional designer for working out the most suitable design and production plan for the machine that you are going to book with us
5Q: How can I trust you that machines pasted testing running before shipping?
5A: 1) We record the testing video for your reference.
2) You are welcome to visit us and test machine in our factory.
6Q: Do you provide installing and training overseas?
6A: Overseas machine install and worker training services are optional.
7Q: How is your after sales support?
7A: We provide technical support on line as well as overseas services by skillful technicians.
8Q: Guarantee period:
8A: Within one year since the date of finishing commissioning.
