Cylindrical Roller Bearing Nu208em for Rolling Machines

Product Description

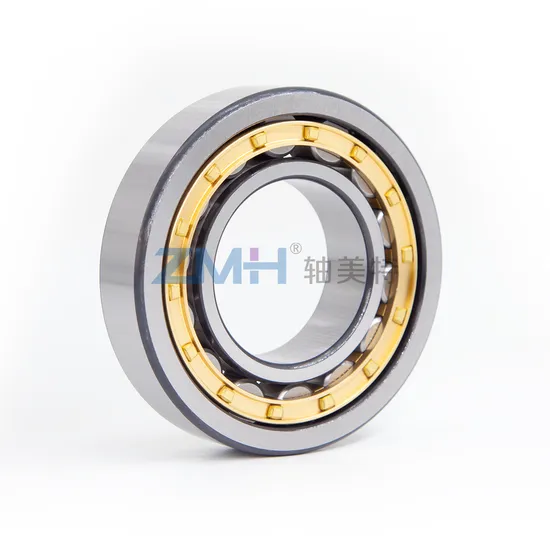

NU 208 EM
Single row cylindrical roller bearing, NU designSingle row cylindrical roller bearings are designed to accommodate high radial loads in combination with high speeds. Having two integral flanges on the outer ring and no flanges on the inner ring, NU design bearings can accommodate axial displacement in both directions. An important feature is the separable design, which facilitates mounting and enables the bearing components to be interchanged.High radial load carrying capacityLow frictionLong service lifeAccommodate axial displacement in both directionsSeparable design

Bore diameter	40mm	Number of flanges, outer ring	2	Basic dynamic load rating	62kN
Outside diameter	80mm	Number of flanges, inner ring	0	Basic static load rating	53kN
Width	18mm	Loose flange	None	Reference speed	9500r/min
Bearing part	Complete	Coatng	Without	Limiting speed	11000r/min
Number of rows	1	Sealing	Without	Locating feature, bearing outer ring	None
Bore type	Cylindrical	Lubricant	None	Axial displacement capability	In both directions
Cage	Machined metal	Relubrication feature	Without	Chamfer dimension	min.1.1 mm
Tolerance class	Normal	Product net weight	0.443kg

Application
Motor
Air compressor
Machine tool
Mining machinery
Rolling machines
PumpWorkshop glance
FAQ
1, What is the minimum order quantity for this product? Can be negotiated, we will try our best to meet customer needs. Our company is mainly based on wholesale sales, most orders are more than 1 ton.
2,What is your latest delivery time?
Most orders will be shipped within 7-15 days upon payment is received.
3,Does your company have guarantee time?
Yes, for 1 years.
4, What are the advantages of your company's products ?
High precision, high speed, high load, low noise.
5, What payment method does your company support?
Do our best to meet customer needs, negotiable.
6, How to contact us quickly?
Please send us an inquiry or message or email and leave your contact information, we will contact you as soon as possible and provide the detailed information you need.
