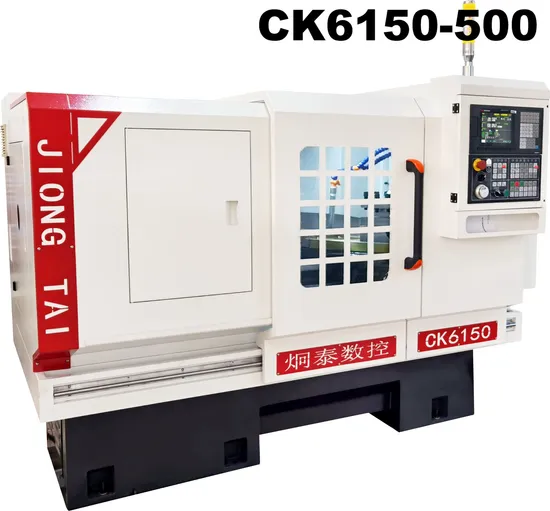

Fanuc Controller High Speed High Precision Ck6150-500 Horizontal Machiningcnc Machine Center Metal Lathe

Product Description

CK6150 -500 machine tools is a mature product has a compact structure, beautiful appearance, large spindle torque, high rigidity, stable and reliable performance, and excellent accuracy retention.This series machine can automatically process the inside and outside cylinder surface, cone surface, circular arc surface, end face, such as processing, and also can process the single and multiple threads in metric, inch and other standards.
1.0ptimized design of the head stock, suitable fortuming of disc and shaft parts.lt can processstraight, arc, metric and inch threads.andmulti-threaded.It is suitable for turning discs andshafts with complex shapes and high precisionrequirements.Parts Processing
2.Both the machine tool guide rail and the slidingsaddle guide rail adopt hard guide rails of specialmaterials. which are super hard and wear-resistantdurable, and have good machining accuracy retention after high-frequency quenching
3.The numerical control system adopts GSK and servo drive of Guangshu system, and adopts domesticfamous and high-quality ball screw and high-precision screw bearing.
4. The spindle adopts high-precision spindle beanng set and has been precisely assembled and dynami-cally balanced to ensure that the spindle has high precision, low noise and strong rigidity
5.Each lubrication point adopts a forced automatic lubrication device for fixed-point andquantitative lubrication of the lead screw and guide rail When there is an abnomal state or the amountof oil is insufficient, a waming signal is automatically generated
6. The guide rall is equipped with a scraping device to prevent the guide rail from being corroded by ironfilings and coolant.
Product Parameters

ITEM	Units	CK6150-500
Max. workpiece rotation diameter of bed body	mm	φ500
Max. machining length	mm	450
X axis	mm	295
Max. Z-axis stroke	mm	500
Width of bed rail	mm	405,pallet pasting integral bed foot
Max. apex distance	mm	500,1000,100,2000
Spindle head type		A2-8
Taper of spindle inner hole		Metric No.90(1:20)
Main shaft aperture	mm	φ82
Spindle speed range	rpm	45-260,140-800,280-1600
Spindle motor power	kw	ordinary motor 7.5/optional 11
Manual three-jaw collet dimensions		Manual three jaw chuck 250
X/Z ball screw		2505/4010
X/Z axis motor power	nm	6/10
Fast feed speed	m/min	6;8
Positioning accuracy	mm	X axis (transverse)≤0.01 Z axis (longitudina)≤0.015
Repeated positioning accuracy	mm	X axis (transverse)≤0.01 Z axis (longitudina)≤0.01
Roundness	mm	≤0.007
Consistency in diameter	mm	≤0.003/length 300
Flatness	mm	≤0.003/ldiamter300
Surface roughness (stell parts)	um	≤Ra 1.6
Diameter of tailstock sleeve	mm	φ75
Tailstock sleeve stroke	mm	150
Taper hole of tailstock center		MT50#
Power specification and (standard configuration)		Three phase 380V/50HZ
Overall dimensions(one meter machine tool)	mm	2300*1550*2000
Net weight	kg	2000
