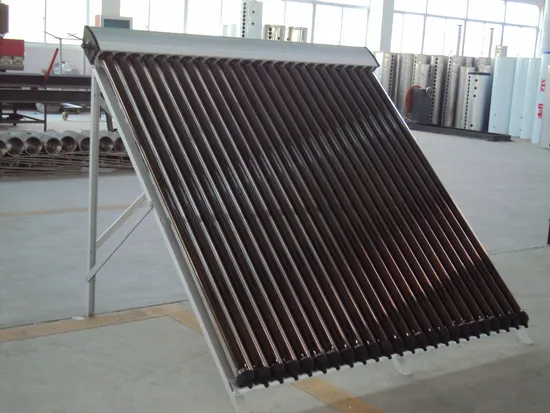

Separated Heat Pipe Vacuum Tube High Efffeciency Solar Collector

Product Description

Separated heat pipe solar collector is a device that absorbs solar energy from the sun and converts it into usable heat energy. The heat is normally absorbed by water, or a freeze resistant water mix, which can then be used to supplement hot water heating, space heating.
Product Applications
1) Domestic, industrial and commercial heating use
2) Suitable for open or closed Loop (glycol-water)
3) Space heating
4) Caravan Parks, Hotels, Schools, Public Showers/Kitchens, Restaurants
5) For large scale water heating
Main feature
1) Reliable, efficient, twin-glass evacuated tubes
2) Red copper(TP2) heat pipes for rapid heat transfer
3) Attractive design, standard frame suitable for pitched roof or flat roof
4) Significant advantages over flat plate
5) Easy plug-in installation
6) Improves the environment and save your fuel cost.
7) Domestic and Commercial Use, solar collector is ideal for both domestic and commercial use, and is scalable to your exact needs. This allows us to be highly competitive.
Specification
1. Material of vacuum tube: 3.3 high borosilicate glass 58*1800 & 47*1500
2. Heat pipe: Anti-freeze for -30degree
3. Insolation: Rock Wool
4. Manifold shell: Aluminum alloy 1.6mm
5. Frame: Galvanized steel 1.8mm
6. Header: TP2 red copper 22mm connector, 35mm/38mm diamter
7. Hail resistant: 25mm
