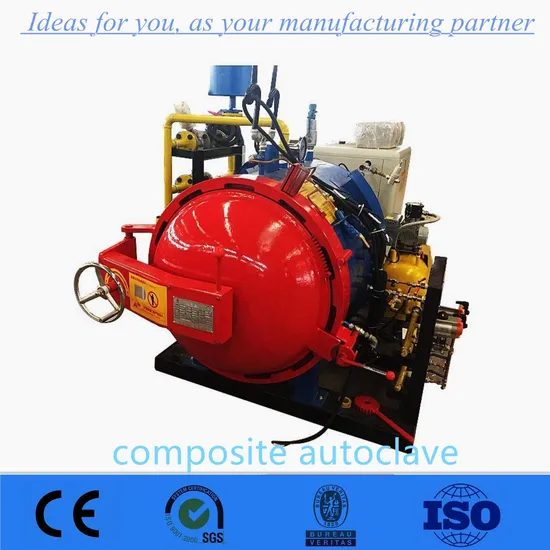

Z-Industrial Autoclave Prepreg Carbon Fiber Oven Composite Autoclave Machine

Product Description

Product Description Composite Material Autoclave
Name: Autoclave ,Autoclave For Carbon Fiber,Carbon Fiber Forming Autoclave,Curing Carbon Fiber Autoclave,Composite Material Autoclave, Composite Autoclave,Autoclave for composite materials fabrication.
The composite autoclave is a key equipment for hot-pressing shaping of carbon fibers and resin matrix composites. The quality of the product is obtained inside the autoclave reaching an increase of mechanical features up to 20-30% compared to other methods of polymerization. The reliability and the precision of the cycles which can be obtained with our autoclaves, allowing to reach and keep high quality standards of the product, which is widely used in the high-tech fields such as aerospace, automobile, electronics, weapon, traffic, sports equipment and new type of energy, etc. Technical parameter

Item	800	1200	1500	1700	2000	2600
Inner diameter(mm)	800	1200	1500	1700	2000	2600
Canister length(mm)	22000	3000	3000	4000	5000	10000
Number of lid sawtooth	12	12	14	14	16	24
thickness of lid (mm)	10	10	10	10	16	14
Thickness of the tank body(mm)	10	10	10	10	12	14
Working pressure(Mpa)	0.8	0.8	0.8	0.8	0.8	0.55
Dimensions(mm) (length*width*height)	22766*1445*1170	4010*1575*1670	3960*2150*2050	4925*2162*2070	6200*2590*2424	11722*3360*4136
Weight(Kg)	5580	2017	2950	3835	6500	16775

Application Area Autoclave is widely used in aerospace, composite materials, electronics, weapons, transportation, sports equipment and new energy and other high-tech fields.Our company developed the autoclave with the advantages of high temperature and pressure control precision, safe and reliable structure, good system stability, low energy consumption.Operation and simple maintenance and realize the modularization, can satisfy the different areas, different process and different specifications of the requirements.
Working Principle Autoclave can realize temperature ,pressure ,cooling and process parameters timing ,real-time on line controlled equipment .Mainly device into below systems:1. tightness of tank :it is made from tank ,tank door ,high temperature motor ,air duct heat partition layer to form into one high pressure resistant ,high temperature tank2. safety interlock : it is made from pressure automatic interlock ,manual interlock ,over pressure alarm device.3. Quickly open door device :manual or automatic quickly open design ,even If power off ,it can start and close the door4. Sealing device: the door adopt silica gel filling air ,it can bear 500 degree ,forming into one high temperature high pressure sealed container5. Pressure system: pressure transfer and control system include air compressor ,storage tank ,pressure control valve ,pipe ,pressure transformer ,and pressure gauge .6. Heating system: stainless steel heating pipe ,high temperature fan ,wind plate ,insulation layer ,temperature control system .heating power satisfy with inside tank max temperature requirement and raising temperature7. Temperature circulation system :it made up of circulation fan ,wind plate ,and guide flow cover to improve heating transfer and circulation form into uniform temperature8. Vacuum system :it made up of vacuum pump ,pipe ,vacuum gauge ,vacuum vale ,to supply composite material vacuum condition9. Automatic control system: adopt PLD and fuzzy control ,to realize the pressure ,temperature ,cooling and so on full process high -precision control and in time record.
Product Photo Show
Packaging & Shipping Our products have standard export package, fumigated wood box, U-steel, steel frame reach to sea transportation requirement, we have our own professional shipping company, make sure the product arrived your destination safely and as soon as possible.
Our Advantages
Choice service: We will give you suggestion how to choose a type which is best for you according to your usage and use areas. Shipping service: Regular Packing or Nude Packing, suited to land transportation as well as sea transportation. We will ship it as your request .
Design service : We will design boil room according to your room and the boiler capacity.
Three guarantees service: The boiler has one- year time from the purchase day and life-time service is offered.
Training service : We also provide necessary training about boiler operation and daily maintenance to local workers.
Company Profile Qingdao Evertech Industry Co., Ltd. is a professional pressure vessel designer, manufacturer and exporter. We have manufacturing licenses for ASME U, ASME U2,NB,PED, D1, D2 and A2 pressure vessels. Composed of more than 20 senior experts and professional engineers, the research and development team, with more than 20 years of professional experience, is committed to product design, development and program optimization, and can provide high-quality solutions according to users' requirements in different operating conditions. Company has cover an area of 70000 manufacturing base and 15000 modern manufacturing plants, can provide customers both at home and abroad with composite autoclave, high pressure autoclave, high pressure reactor, AAC autoclave, deaerator, pouring tank pressure vessel products such as more than 800 sets, pressure vessel head more than 20000 sets high quality products and services, won widespread praise.
