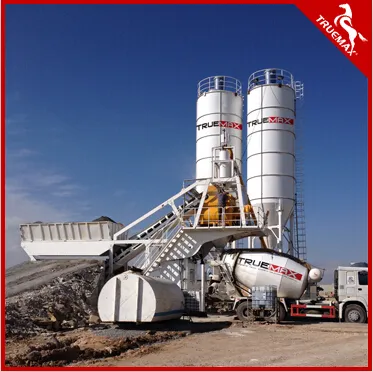

2016 Best Selling Movable Concrete Mixing Batching Plant

Product Description

Product Description
1. Compact structure and all ready functions
Plant of this model is a combination of storing, weighing, transporting, mixing and controlling. It has features of compact structure and allready functions.
2. Convenient movement
Adopting pulling type different structuring way enables convenient movement.
3. Quick installation
Ready to run without special foundation and commissioning, which can save installation and commissioning time.
Advanced mixing mechanism, unique mixing angle, quick mixing and discharging together make superior mixing performance. Excellent weighing sensor guarantees the precision and stability of weighing. Inching and drop height control are available under different situations. Industrial computer with friendly user interface, centralized monitoring and VGA high-definition display. Real-time monitoring mixer, ensure the normal operation and concrete quality. Data protection in case the system is out of power Auto calibration of drop height and zero point
Perfect functions of data finding and printing

Technical Specification	CBP60M	CBP70M	CBP80M	CBP100M
Productivity(m³)	60	70	80	100
Aggregate Bin(m³)	10*4	10m³*4	10m³*4	16m³*4
Aggregate Loading Type	Loader	Loader	Loader	Loader
Aggregate Weighing	2500±2%	3125 ±2%	3750 ±2%	5000 ±2%
Mixer	MSO1500/1000 or MEO1500/1000	MSO1750/1250	MSO2250/1500	MAO3000/2000
Mixer Type	Twinshaft	Twinshaft	Twinshaft	Twinshaft
Diameter of Aggregates(mm)	≤60/80	≤60/80	≤60/80	≤60/80
Cement Weighing	600±1%	750 ±1%	900 ±1%	1200 ±1%
Water Weighing	300±1%	375 ±1%	450 ±1%	600 ±1%
Additive Weighing	30±1%	40 ±1%	45 ±1%	60 ±1%
Control System	ELETTRONDATA /TRUEMAX	ELETTRONDATA /TRUEMAX	ELETTRONDATA /TRUEMAX	ELETTRONDATA /TRUEMAX
Discharging Height(mm)	3800	3800	3800	4000
