Insulate Plate for MDF HDF Mould Production Line

Product Description

Introduction:
Specific thermal insulation is imperative in the fabrication of wood-based panels since the hot presser is subject to high thermal, mechanical and chemical stresses. To establish a complete thermal insulation system is a huge challenge as various insulation requirements are imposed by our customers in this industry.
Typical application cases are described below:
Insulation of the frame or piston
Cover of the heating plates
Thermal protection of the cross-beams against high temperatures in column presses
Thermal isolation of testing and measuring instruments
Compensation pads to maintain the parallelism of heating plates
Insulation Characteristics:
long term thermal stability and low coefficient of thermal conductivity
a uniform temperature distribution;
less thermal stress on the seals and sleeves
shorter heating -up time and huge energy- saving effect realized by reduced heat loss
Premium Thermal Isolation and anti-press resistance;
Insulation Plate Specifications:

	Operaton Temperature		Compressive Strength	Bending Strenth	Thermal Conductivity	Comprehensive Strain
	Long term	Short term	N/mm2	at 23'C	(w/mk)	At 30N/mm2	At 70N/mm
TX-200-YE	200	210	350 At 220'C	600	0.19	0.80 at 200 'c		High Compression Resist
TX-250-BR	220	230	360 At 200'C	500	0.21	0.30 at 200'C		High Temperature Compression Resist
TX-250-GN	250	260	360 At 250'C	760	0.22		0.30 at 250'C	High Flexural Resist
TX-250-BL	250	260	350 At 250'C	400	0.23		0.50 at 250'C	High Temperature Long Term
TX280-WH	280	300	260 At 250'C	120	0.2		0.6 at 260'C	High Temperature Resist
TX-600-SL	500	600	250 At 200'C	200	0.12	2.0 At260'C		Low Heat Conductivity
TX800-GD	700	800	250 At 200'C	140	0.12	2.0 at 280 'C		High Temperature Low Heat Conductivity

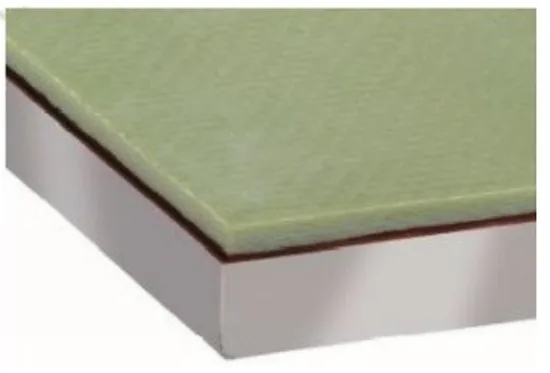

Product Photos:
