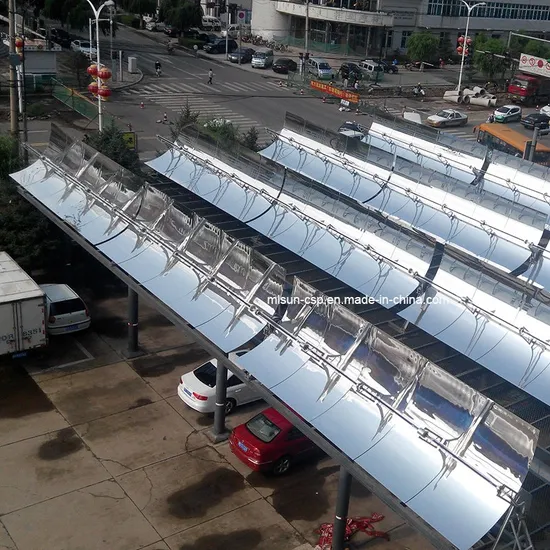

Rooftop Solar Parabolic Trough 2.55m by 6m Heat Solutions for Industrial Processes
| US$3,190.00-6,490.00 | 2 Sets (MOQ) |
Basic Info.
Model NO.
2.55m*6m
Certification
API, ISO, CB, CE
Concentrating
Yes
Working Temperature Range
High Temperature
Type
Pressurized
Application
Water Heater, Solar Thermal, Air Conditioning System
Transport Package
Wooden Box, Steel Structure
Specification
2.55m*6m
Trademark
MLSUN
Origin
China
Production Capacity
500000m2/Year
Packaging & Delivery
Package Size
600.00cm * 255.00cm * 255.00cm
Package Gross Weight
340.000kg
Product Description
We manufacture Parabolic Troughs for Concentrated Solar Power plants.There are 2 regular models:Parabolic Trough 2.55m*6m, Parabolic Trough 5.77m*12m.
Parabolic Trough 2.55m*6m is used for seawater desalination, hot water, hot air, drying, room heating, especially generating steam.
Parabolic Trough 5.77m*12m is used for solar thermal power plants by generating high temperature and high pressure steam to drive the steam turbine, in order to generate electricity.
| No. | Parabolic Trough Concentrator | PTC 2.55m*6m | PTC 5.77m*12m |
| 1 | Trough width | 2.55 m | 5.77 m |
| 2 | Trough length | 6 m | 12 m |
| 3 | Aperture area | 15.3 sqm | 69.24 sqm |
| 4 | Tracking accuracy | 0.1° | 0.1° |
| 5 | Receiver tube (glass-to-metal) | 3 pieces | 3 pieces |
| 6 | Receiver tube material | SUS304 stainless steel | SS321/316L stainless steel |
| 7 | Working temperature | 300ºC | 400ºC |
| 8 | Working pressure | 40 bar | 40 bar |
| 9 | Driving system | 1 set | 1 set |
| 10 | Sun-tracking and control system | 1 set | 1 set |
