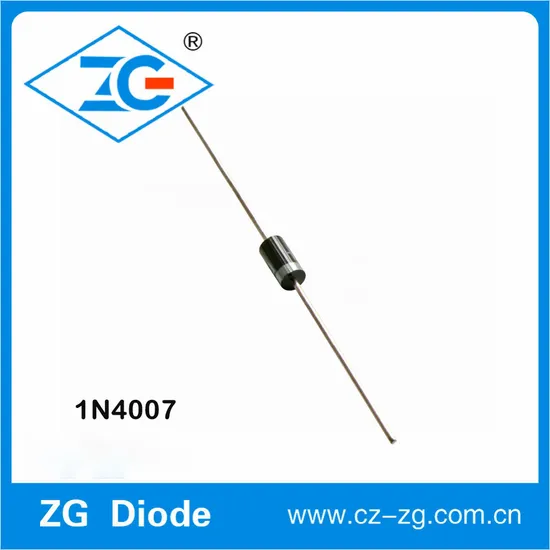

1n4001-1n4007 General Purpose Silicon Rectifier General Purpose Rectifiers Diode

Product Description

Product information

	Symbols	1N4001S	1N4002S	1N4003S	1N4004S	1N4005S	1N4006S	1N4007S	Units
Maximum repetitive peak reverse voltage	VRMM	50	100	200	400	600	800	1000	Volts
Maximum RMS voltage	VRMS	35	70	140	280	420	560	700	Volts
Maximum DC blocking voltage	VDC	50	100	200	400	600	800	1000	Volts
Maximum Average Forward Rectified Current @TA=75 ºC	I(AV)	1.0							Amps
Peak Forward Surge Current 8.3ms Single Half Sine-Wave Super Imposed on Rated Load(JEDEC Method)	IFSM	30.0							Amps
Maximum forward voltage at 1.0A	VF	1.1							Volts
Maximum DC reverse current TJ=25ºC at rated DC blocking voltage TJ=100ºC	IR	5.0 50.0							μA
Typical junction capacitance (Note 1)	CJ	15.0							pF
Typical thermal resistance (Note 2)	RθJA	26.0							ºC/W
Operating Temperature Range	TJ	-55 to +125							ºC
Storage Temperature Range	TSTG	-55 to +150							ºC

FAQ:
1, Are you Manufacturer or trading company?
We are a manufacturer only in diode, bridge rectifiers and automotive rectifier diode. We could supply competitive price and fast delivery and good quality with prompt service, we guarantee that we will reply to our customers within 1-12H once we receive the inquiry, we will do the utmost to help to cut down your cost.
AND ZG WILL LIKE TO ASSURE ALL THE CUSTOMERS THAT WHATEVER IS WRITTEN ON THE LABEL OF THE PRODUCT IS 100% TRUE
2. May I have some samples for testing?
Yes, OF COURSE. We offer free samples for our customers and they only need to pay the freight for samples. If you have order with us, we will deduct the freight from your first order.
3. What about the delivery ?
Usually the lead time is about 1-3 weeks after receiving payment. For many normal parts, we have the quantity in stock and we have the system to ensure the delivery will be on time.
4. What about the payment terms ?
Order amount is less than $10000: 80% Advance,and 20% before shipment.
Order amount is between $10000 and $20000: 50% Advance and 50% before shipment.
Order amount is more than $20000: 30% Advance and 70% before shipment.
5. What about the shipment terms ?
FOB Shanghai by sea;
Contact us:
Changzhou Zhongguang Electronic Co., Ltd
Add: No.6 Hehong Road,Wujin Economic Development Zone, Jiangsu, China.


We also work with DHL, FEDEX, TNT and etc. For large quantity , it's up to you to choose the freight forwarder and if you need, we could assist you.
