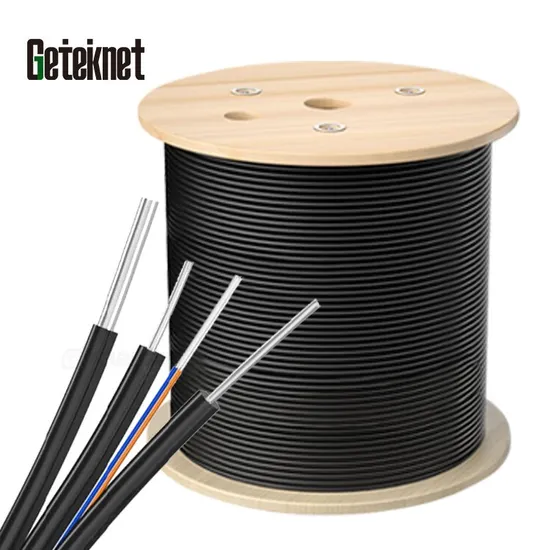

Geteknet OEM 1000m Factory Price Internet 1 2 4 6 8 Core Fibre Optical Cables Indoor Outdoor FTTH Single Mode Fiber Optic Drop Cable
| US$22.00-25.00 | 2 KM (MOQ) |
Basic Info.
Model NO.
20210
Connection Structure
Outdoor Indoor Fiber Cable
Material Shape
Flat Wire
Allowed Lateral Pressure
>1000(N/100mm)
Allowed Tensile Strength
100N<1000N
Core
Single Core
Certification
RoHS, CE, ISO9001
Brand
OEM ODM
Sheath Material
LSZH
Capacity
1 Core / 2 Core / 4 Core
Fiber Cable
Sm Singlemode
Spec of Fiber Core
G657A1 or G657A2
Strength Messenger
FRP or Galvanized Steel Wire
Reinforcement Element
FRP or Galvanized Steel Wire
Size of Jacket
2.0 X 3.0 mm / 2.0 X 5.0mm
Attenuation
1310nm < 0.36dB/Km Max.
Standard
IEC 60794-1-2
Transport Package
1km or 2km / Reel
Specification
Singlemode SM
Trademark
OEM ODM
Origin
China
HS Code
8536700000
Production Capacity
10000km/Month
Packaging & Delivery
Package Size
36.00cm * 36.00cm * 33.00cm
Package Gross Weight
28.000kg
Product Description
Product Description| The standard structure of cable is shown in the following table, more structure fiber cable can be customized. | |||
| SN | Item | Unit | Value |
| 1 | No. of fibers | count | 1-8 |
| 2 | Strenghening wire (FRP/steel) size | mm | 1.0 |
| 3 | FRP / Steel wire size | mm | 0.5 / 0.45 / 0.40 |
| 4 | Sheath | material | LSZH |
| 5 | Cable diameter | mm | 2.0*3.0 or 2.0*5.0 |
| 6 | Cable weight | kg/km | 10-19 |
| 7 | Crush resistance(N/100mm) | Long/Short | 1000/2200 |
| 8 | Tensile strength(N) | Long/Short | 300/600 |
| Characteristic of Optical Cable - Min. bending radius | ||||
| Min. bending radius | G. 652D | G. 657A1 | G. 657A2 | G. 657B3 |
| Static | 15 D | 10 D | 10 D | 7.5 D |
| Dynamic | 30 D | 20 D | 20 D | 15 D |
| Item | Unit | G. 652D | G. 657A1 | G. 657A2 | G. 657B3 | |
| Mode field diameter | 1310nm | μm | 9.2 ± 0.4 | 8.6 ± 0.4 | 8.6 ± 0.4 | 8.6 ± 0.4 |
| 1550nm | μm | 10.4 ± 0.5 | 9.5 ± 0.4 | 9.6 ± 0.5 | 9.6 ± 0.5 | |
| Cladding diameter | μm | 124.3~125.0 | 124.3~125.0 | 124.3~125.0 | 124.3~125.0 | |
| Cladding non-circularity | % | ≤1.0 | ≤1.0 | ≤1.0 | ≤0.8 | |
| Core concentricity error | μm | ≤0.5 | ≤0.5 | ≤0.5 | ≤0.5 | |
| Coating diameter | μm | 245 ± 5 | 245 ± 5 | 245 ± 5 | 245 ± 5 | |
| Cable cut-off wavelength | nm | ≤1260 | ≤1260 | ≤1260 | ≤1260 | |
| Attenuation Coefficient | 1310nm | dB/Km | ≤0.35 | ≤0.35 | ≤0.35 | ≤0.35 |
| 1550nm | dB/Km | ≤0.21 | ≤0.21 | ≤0.21 | ≤0.21 | |
| Macro-bend loss (100 turn, 60mm radius) | 1550nm | dB | ≤0.03 | ≤0.75 | ≤0.5 | ≤0.15 |
| 1625nm | dB | ≤0.05 | ≤1.5 | ≤1.0 | ≤0.45 | |
| Proof stress leve | kpsi | 100 | 100 | 100 | 100 | |
| Effective group index of refraction | 1310nm | / | 1.4672 | 1.4672 | 1.4672 | 1.4672 |
| 1550nm | / | 1.4683 | 1.4683 | 1.4683 | 1.4683 | |
| Zero dispersion wavelength | nm | 1300-1324 | 1300-1322 | 1300-1322 | 1300-1350 | |
| Zero dispersion slope | ps/(nm²·km) | ≤0.091 | ≤0.091 | ≤0.091 | ≤0.091 | |
