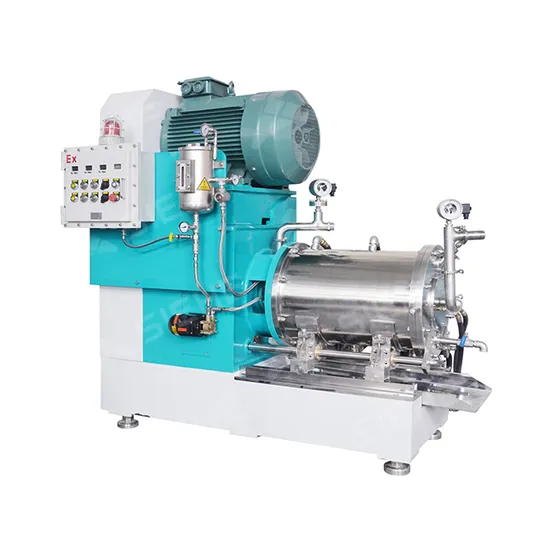

Liquid Paste Slurry Wet Grinding Horizontal Beads Mill

Product Description

Product Description
Ultra-fine Large-flow Horizontal Beads Mill is a continuous production machine for grinding liquid materials. The design of the grinding chamber is with a small length/diameter ratio and high energy density; Adopting external driven screen discharge device, which is with large discharge area and large flow overflow efficiency; Adopting combined dispersion group can rapidly improve the dispersing efficiency. Use φ 0.5mm-2.0mm yttrium stabilized zirconium beads (95% zirconium content).

Materials Viscosity	≤30,000 cps
Production Capacity	10-4000L/h
Application Industry	Solvent and water-based ink, color paste, automotive paint, electronic slurry, ceramic paste and other industries
Applicable Materials	Paste with viscosity below 30000 cps and high grinding fineness requirements, such as digital printing ink, automotive paint, industrial paint, color paste, watercolor paint etc.

MIDDLE TYPE
SWZX-5 to SWZX-30 Middle horizontal beads mill
Grinding chamber made of alloy steel High loading rate of beads,more efficinet
Double-end mechanical seal,more stable
PRODUCTION TYPE
SWZX-50 to SWZX-300 model horizontal beads mill
Grinding chamber made of alloy steel;
with 0.5-2.0mm zirconia beads,
better fineness;
Double-end mechanical seal,more stable
GRINDING COMPONENTS
Disc type: Made of alloy steel; High linea speed,more effcient;
screen discharge device, large flow.
Product Parameters
Large-flow, no blockageGerman technology, using fence type separator and external driven screen discharge device, which greatly increases the filtering area, ensures the smoothness of materials discharging, and greatly improves the grinding efficiency.Ultra-fine zirconium bead, nanometer grindingThe gap of separation screen is optional ranging from 0.2mm to 0.5mm. Yttrium stabilized zirconium beads (≥ 95% zirconia content, φ 0.5mm~2.0mm) can loaded to make it possible for the material fineness to reach submicron.Safe monitoring, stable finished productsThe segmented double-spiral cooling jacket can control the product temperature very well, particularly for pastes sensitive to temperature. It can also increase the cooling of the main shaft and the end face to ensure that the grinding heat can be exchanged in time; With water temperature, material temperature, material pressure, water pressure, air pressure and other real-time monitoring and protection systems, it ensures the normal operation of equipment to ensure the quality of the finished product. Full specification, customized optionsFull specification from 5L to 300L. Can be customized to be Explosion proof type. The grinding disc can be coated with Polyurethane etc.
Industrial Applications
Company Profile
SIEHE GROUP established in year 2009, start with liquid machine manufacturing. After more than ten years of efforts, SIEHE Group has developed into large-scale machinery industry group company. lts headquarter is located in Honggiao, Shanghai, China. lts production bases are in Jinshan, Shanghai,Wuxi and Yangzhou in Jiangsu, with a total plant area around 32000m2. The production bases are equipped with more than 160 sets of advanced production processing and testing equipment including: turning and miling center, large gantry five- axis machining center, horizontal five-axis boring and miling machining center, Vertical five axis machining center, vertical CNC lathe machining center, trilinear coordinates precision measuring instrument, image measuring instrument precision altimeter etc.. With strong production and quality control capacity, SIEHE group carries out product design, processing,assembly and testing in full accordance with the lSO9001 quality management system, and has passed professional institution certification.
Production Equipment
Five-axis Gantry Machining Center Turning and Milling Center CNC Boring and Milling Machining Center
CNC Vertical Lathe Vertical Machining Center CNC Five-axis Gantry Machining Center
Customer Photos
