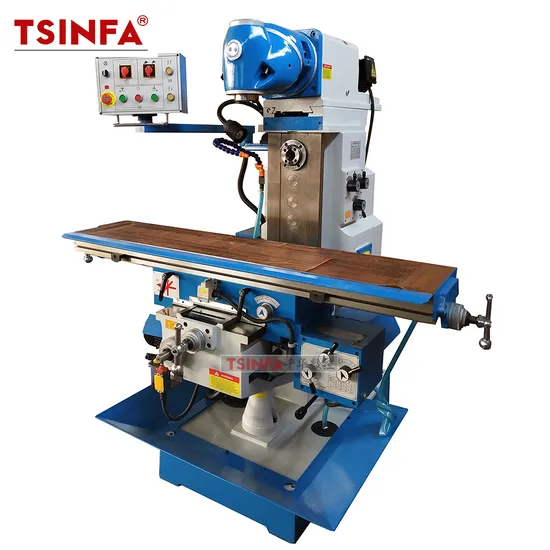

Xn32 Vertical and Horizontal Universal Milling Machine Original Manufacturer

Product Description

Product Description
The universal milling machine can be equipped with various tools to machine milling planes, slopes, grooves, etc. If universal milling heads, circular workbenches, indexing heads, and other milling machine accessories are used, the machining range of the machine tool can be expanded. Suitable for processing special steel molds, mining equipment, industrial equipment, and other heavy and large-scale machinery. When the workbench rotates a certain angle and the indexing head attachment is used, various spiral surfaces can be machined.
-Milling head can be rotated 360 degrees
-Worktable 45 degree rotation (optional for some models)-XY axis automatic feed
-Worktable electric lift-Horizontal milling-Vertical milling
Product Parameters

Specification	XN26	XN32
Table size (mm)	1200*280	1500*320
Table travel (mm)	650*200*450	800*300*450
Ram travel (mm)	200	200
Swivel angle at awivel head(°)	±360°	±360°
Main motor (kw)	2.2	2.2(V) 3(H)
Distance from spindle to table (mm)	80-500	80-500
Spindle speed Range (r.p.m)	35-1600	35-1600
Horizontal spindle speed range	/	40-1300
Overall dimensions (mm)	1700*1500*2000	1850*1560*2250
G.W/N.W / (kg)	1000/1100	1400/1500
