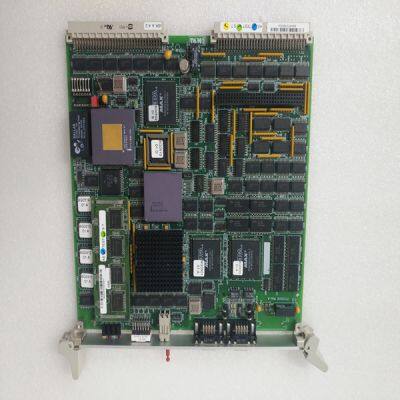

TEAM BG0090

Product Details

Product Description

Product Description
Brand:TEAM
Type:BG0090
Origin: the United States
Warranty: 365 days
Colour: new/used
Shipping method: Courier delivery
Module of PLC, DCS, ESD system card, the card is a vibration monitoring system, steam turbine control system module, the advantages of the gas generator spare parts brand: Allen Bradley, BentlyNevada, ABB, Emerson Ovation, Honeywell DCS, Rockwell ICS Triplex, FOXBORO, Schneider PLC, GE Fanuc, Motorola, HIMA, TRICONEX, Prosoft etc. Various kinds of imported industrial parts of our products are widely used in metallurgy, petroleum, glass, aluminum manufacturing, petrochemical industry, coal mine, papermaking, printing, textile printing and dyeing, mechanical, electronic manufacturing, automobile manufacturing, plastic machinery, electric power, water conservancy, water treatment/environmental protection, boiler heating, energy, power transmission and distribution and so on.
Status LED Blink Code Fault Description Possible Cause 7 Bus Over Voltage - Self Resetting The BUS voltage has exceed the upper threshold limit AC Line voltage (AC unit) or DC bus power supply voltage (DC unit) is too high. Regenative energy during deceleration is causing the BUS to rise: On AC Drives add regen resistor. On S200 DC input drives external BUS capacitor is too small; add capacitance. 8 Bus Under Voltage - Self Resetting S200 DC drive fault only BUS voltage is below specified 20 VDC minimum On S200 DC input drives: BUS voltage is too low. BUS voltage is pulled down during high acceleration or loading. External BUS capacitor is too small. 9 Motor l-l or l-n Short Line-to-Line, Line-toNeutral or Line-to-PE short on the motor output causing an instantaneous over current. Motor power wiring short circuit - line-to-ground / neutral. Motor cable short line-to-line. Motor power cable length exceeds the data sheet specification causing excessive motor line-to-earth ground/neutral capacitance. Internal motor winding short circuit. Motor L too small. KIP set too large. 10 Output Over Current Insufficient motor inductance KIP or KII improperly set causing excessive output current overshoots. 11 Hall Fault Valid only when drive is set for 6 Step (Hall feedback) operation Invalid configuration. Motor overspeed. Invalid hall state. Invalid hall transition. 12 SFD Configuration Error SFD UART error during SFD initialization. Bad motor data check sum. The drive will attempt to initialize the SFD up to 4 times. If it fails this error is reported. 13 J3 FB +5V Short Excessive current drain on SFD +5 supply output Excessive loading on SFD +5 supply. Short in the feedback cable on SFD +5 (J3-1) to ground. 14 SFD Motor Data Error Motor data in SFD is outside drive limits or is inconsistent Motor and Drive are not compatible. Auto setup calculation yielded a desired parameter value outside valid range.
Incorrect/inconsistent motor data loaded into the SFD. 15 SFD Sensor Failure Internal SFD failure. Excessive electrical noise in the drive environment causing communications interference. 16 SFD UART Error Internal SFD failure.
