Advanced Wireless Remote Control for Safe Crane Operations

Product Description

Product Parameters
Radio:

Frequency range: 400-470MHz

Transmission rate: 9600bit/s

Transmitting power: ≤10mW (customizable)

Frequency tolerance: <4ppm

Adjacent channel rejection: >50dB

Modulation mode: GFSK (Gaussian Frequency Shift Keying)

Channel interval: 25KHz

Receiving sensitivity: -115dBm

Check mode: CRC-1TM

Physical Data:

Transmitter weight: 1.4kg (without battery)

Transmitter dimensions: 254mm x 130mm x 168mm (length x width x height)

Transmitter shell material: High-strength engineering plastics

Receiver weight: 2kg

Receiver dimensions: 298mm x 206mm x 103mm (length x width x height)

Receiver installation size: 186mm x 88mm

Receiver installation aperture: Φ6mm

Receiver shell material: High-strength engineering plastics

Working temperature range: -25ºC-70ºC

Working humidity range: 0-97%RH

Safety Standard:

EN ISO 945-1 Category3

EN ISO 13849 Class D

Model Approval Certificate for Radio Transmission Equipment (National No Committee)

Safety certificate of crane remote control device (Liao'an Institute)

Protection level: IP65

Executive Device:

Real-time: Dual CPU real-time control

Frequency control: PLL phase-locked loop

Special address code: 32bit>4.2 billion

Control distance: >100m

Transmitter form: rocker type

Transmitter power supply: 7.4VDC (3600mAh lithium battery)

Transmitter working current: <100mA (except for special systems)

Transmitter low voltage alarm: 6.6V alarm

Transmitter failure alarm: display or LED (multi-combination sound and light alarm)

Power saving protection: automatic shutdown (can be set for 0-30 minutes)

Transmitter antenna: built-in

Receiver power supply: 42-250VDC/10-30VDC/380VAC optional

Rated power of receiver: ≤10W

Receiver fault display: LED work/fault status display

Output mode: fully airtight relay output; *non-standard customized PROFIBUS-DP, CANOPEN, PROFINET, DeviceNET

Relay contact capacity: 4A/250VAC

Output interface: terminal output (including pipe joints); *non-standard HAN32, 50 heavy-duty connectors can be added

Receiver antenna: external

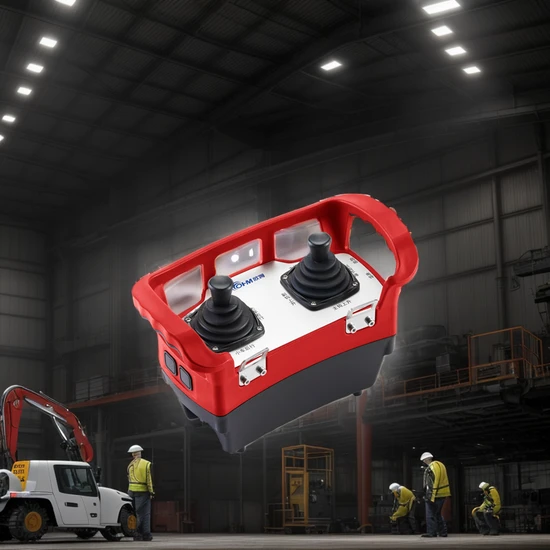

C18 Description:
Crafted for rugged durability, the C18 is dust-proof and water-repellent, elegantly engineered to blend seamlessly with ergonomic design principles;
Featuring cutting-edge dual CPU encoding and decoding technology, it ensures seamless and trustworthy data communication;
Equipped with a meticulously designed joystick boasting a remarkable lifespan of 1 million operations;
Incorporates an intelligent smart key for unparalleled backup capability and performance;
Offers real-time active control, meticulously aligned with rigorous EU standards;
Supports a robust configuration of up to 64 groups of IO inputs and an impressive 10 groups of proportional inputs;
Features advanced automatic frequency control, selecting the optimal channel right upon startup;
Provides optional bus output type with bespoke feedback customization.
ABOUT US
OHM (Chongqing) Electronics Technology Co., Ltd.
Founded in August 2013, OHM stands as a beacon of innovation in the realm of industrial wireless remote control equipment. Specializing in comprehensive R&D, production, sales, and after-sales support, OHM showcases its industry leadership with a state-of-the-art production facility nestled in Chongqing, complemented by a strategic sales and after-sales service headquarters in Shanghai. Here, we are dedicated to delivering exceptional consulting, robust support, and unmatched service for all your industrial wireless remote control needs.
Taking its place as a trailblazer in the industrial wireless remote control landscape, OHM upholds 'creating brilliance, only quality' as its core philosophy. Our relentless pursuit of excellence is evident in our unwavering commitment to providing safe, reliable, and high-quality remote control solutions. With a mission to streamline operations, reduce labor, and enhance safety across industry, construction, forestry, mining, and beyond, we are dedicated to crafting a seamless, efficient, and secure operational environment for all.
OHM is on a passionate quest to establish itself as the premier domestic and global leader in industrial wireless remote control technology, emblematic of the nation's foremost brand.
Industrial Remote Control and Its Advantages Remote controls permeate every facet of daily life. From entertainment systems to climate control, they are household staples. Yet, the realm of industrial remote controls, distinct from their civilian counterparts, remains a mystery to most.
Industrial remote controls harness the power of radio transmission to enable remote operation and control of machinery. These sophisticated systems comprise a handheld or waist-mounted transmitter paired with a fixed receiving unit on the equipment. Operators input commands via the transmitter's control panel, which are then digitized, encoded, and securely sent to a distant receiver. The receiver deciphers and translates these commands, empowering the operator to command various machinery with precision and ease.
Crafted for excellence, industrial remote controls boast superior technical specifications when compared to civilian models. With heightened accuracy, sensitivity, signal continuity, and formidable resistance to interference, extreme temperatures, and harsh environments, these devices are tailor-made for demanding applications, ensuring that civilian models remain incomparable.
Predominantly employed in crane-centric industries such as metallurgy, shipbuilding, container terminals, and more, industrial remote controls redefine operational capabilities. Their expansive control range, spanning from 100 to thousands of meters, remains impervious to obstacles. Operators enjoy the freedom of mobility, empowered to operate from a secure vantage point, mitigating risks associated with poor visibility and challenging environments, while significantly boosting productivity and assuring safety.
What are the ADVANTAGES of industrial remote controls?
★ Slash Manufacturing and Maintenance Costs: Embrace the modern marvel of remote control systems that have seamlessly replaced traditional cabs, now a staple in contemporary production processes. Enjoy the economic efficiency this advanced technology delivers.
★ Elevate Safety and Reliability: By eliminating the command link, we minimize communication errors from improper instructions. Operators can now maneuver from the optimal vantage point, gaining a clear view of lifted items. This innovation keeps operators safe from cabin-related hazards during adverse weather, prevents miscommunications during high-altitude tasks, and reduces accident risks.
★ Enhance Operating Environment: Operators can select a secure position, steering clear of areas with limited visibility and high pollution levels. This strategic choice effectively shields them from harmful gases, ensuring a healthier working environment.
★ Optimize Human Resources: In operations like those of bridge cranes, a single operator now manages tasks like maneuvering, mooring, hoisting, and unloading independently, eliminating the need for additional command personnel.
★ Boost Work Efficiency: Empowered to make autonomous decisions, operators experience a remarkable increase in precision and operational consistency. Freed from the confines of traditional cab and line restrictions, operators avoid the physical discomfort of high cab temperatures, enhancing morale and overall productivity.
With industrial remote controls becoming a mainstay across various sectors, their exceptional benefits are increasingly evident and indispensable.
