Camel CNC Ca-1530 1516 1512 Auto Tool Change CNC Wood Lathe with Spindle for Cylindrical Wood

Product Description

Product Description
CAMEL CNC CA-1530 1516 1512 auto tool change cnc wood lathe with spindle for Cylindrical Wood
Specification:
1.Whole machine is welded with seamless steel structure, which is high temperature annealing and vibrating stress relief, machine weight up to 1500kgs to make sure the lathe body stabilized and never deformed.
2.Special used for wood turning and wooden cylinder engraving, for table legs, stair railing (banisters), etc.
3.Adopting advanced handheld DSP system with USB port which is easy for operating even without a computer
4. Adopt Germany ball screw and Taiwan HIWIN helical square guide rail with high precision and longevity.
5. Compatible with several CAD/CAM design software, e.g. type3, artcam, etc.
6.Rotating speed can be adjusted by inverter also you can see speed on control cabinet panel
7.One time tool setting to finish the whole work piece.
8.Turning,broaching and engraving can be done with one machine by high speed Detailed Photos

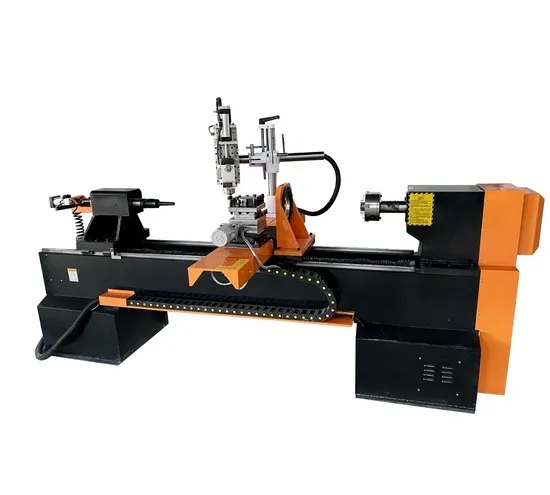

Details of CNC Wood Lathe:
Product Parameters
Techinical Parameter:

1	Model	CA-1530
2	Max processing length	1500mm(can custom 2000/2500/3000mm)
3	Max turning diameter	300mm
4	Air pressure	0.6-0.8Mpa
5	Power supply	AC 380V 3 phase 50HZ/60HZ(can custom 220V)
6	Max feed rate	2000mm/min
7	min setting unit	0.01cm
8	Transmission type	Ball screw for Y axis
9	Guider	Taiwan Hiwin orbit
10	Main shaft rotating speed	0-3000r/min
11	Motor power	4kw
12	Cutter material	hard alloy blade
13	Control System	DSP A136 control system
14	Hand controller recognise file	*.dxf
15	Drawing Software	AutoCAD
16	Command Language	G code

Samples
Application:
Staircases, stairway balusters, stairway newel posts; dining table legs; end table Legs; sofa table legs;bar stool legs; chair legs; chair arm posts; chair stretchers; bed rails, lamp posts,baseball bats
Samples:

Hot Product

Packaging & Shipping

Company Profile
FAQ
Q1: How to choose a suitable machine?
You can tell us the working piece material, size, and the request of machine function. We can recommend the most suitable machine according to our experience.
Q2: This is the first time I buy the machine, is it easy to operate?
We can provide the operation manual or video for guiding. If it is hard for you learning, we can also help you by "Team viewer"online, with telephone or Skype explain.
Q3: Can you customize the machine for me?
Yes, we provide customized solution, but considering the cost, we will recommend the standard configuration to you first.
Q4: What is the guarantee? In case the machine break down?
The machine has 2 year guarantee, fail parts will be replaced for free if the machine under "normal operation".
Q5: How about the documents after shipment?
We will send all the documents by air after shipment. Including packing list, commercial invoice, B/L, and other certificates required by clients.
Q6: Delivery time?
For standard machine, it would be 7-10 working days; for non-standard machine, it would be 20 - 30 working days.
Q7: How is the payment?
Normally we accept T/T or L/C, if you like other terms, tell us in advance.
Q8: Do you arrange the shipment for me?
For FOB or CIF price, we will arrange shipment for you, for EXW price, you should arrange the shipment by yourself.
Q9: How is the packing?
Step1: water proof wrapping film with foam protection in each corner.
Step2: Solid seaworthy wood box package with steel belt.
Step3: Save space as much as possible for container loading.
