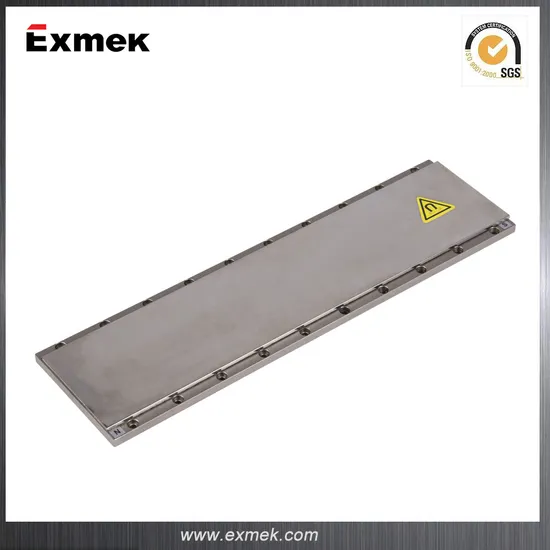

Linear Motor
| US$150.00-200.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
LN XXX SXXX MXXX
Excitation Mode
No
Function
Driving
Casing Protection
Closed Type
Number of Poles
No
Structure and Working Principle
No
Type
No
Certification
ISO9001
Brand
Exmek Electric
Transport Package
Cartor and Wood Pallet
Specification
CE, RoHS
Trademark
exmek
Origin
Jiangsu
HS Code
8501310000
Production Capacity
500, 000PCS/Year
Product Description
General Information Iron core technolog Low coggin Integrated with hall senso High force, reliable and long lifImplication For Name
Specifications
| Specification | Unit | LN56S130MXXX | LN67S076MXXX | LN92S068MXXX | LN92S184MXXX | LN92S260MXXX |
| Peak Force | N | 388 | 150 | 388 | 1080 | 1555 |
| Continuous Force | N | 129 | 50 | 129 | 360 | 518 |
| Peak Current | A | 9 | 4.2 | 9 | 15 | 15 |
| Rated Current | A | 3 | 1.4 | 3 | 5 | 5 |
| Force Constant | N/Arms | 43 | 35.7 | 43 | 72 | 103.6 |
| Back-EMF Constant | Vpk/m/s | 35.1 | 27.5 | 35.1 | 58.8 | 84.6 |
| Max.Speed | m/s | 4 | 4 | 4 | 4 | 4 |
| Inductance(L-L) | mH | 10.2 | 18 | 10.2 | 20.8 | 20.4 |
| Resistance(L-L) | Ohms | 2.2 | 10 | 2.1 | 2.6 | 4.3 |
| Pole Distance | mm | 32 | 18 | 32 | 36 | 32 |
| Stator Assembly Weight | g | 986 | 670 | 1228 | 2110 | 3945 |
| Magnet Assembly Weight | g/mm | 3.39 | 4.32 | 6.7 | 6.66 | 6.79 |
| Magnet Assembly Length(L) | mm | 80/160/320 | 108/180/360 | 80/160/320 | 90/180/360 | 80/160/320 |
| Magnet Assembly Width(W) | mm | 56 | 67 | 92 | 92 | 92 |
| Motor Height(H) | mm | 39 | 31 | 41 | 41 | 41 |
Mechanica
Various Customization Optional on mechanical and electric performances!
Company Profile Originally motor division of CMEC WUXI- China National Machinery & Equipment Imp & Exp Wuxi Co.,Ltd., one of TOP 20 stated owned Machinery Group Privately owned Ltd company since 2000: Wuxi Junhong Automation Technology Co. Ltd. Exmek Electric ---Registered Brand Name Business: Design and manufacture of motion control products and components Highly qualified personnel UL, CE, RoHS certification ISO 9001, ISO 14000
Company Capabilities Modern Motor Design and Manufacture Part Set Design and Manufacture Magnetic Design Software-Motorsolver Molding Shipping world wide Why Exmek Electric Open for general discussion and questions Time to market or theatre of operations can be substantially reduced Talented team of engineers providing innovative technical solutions One stop "supplier" and complete sub-system Quality products provided at competitive low cost Ability to ship world wide On time delivery Training at Customer locations Fast service on return and repair results Many repeated customers Applications:
Use for swimming pool, automotive, semiconductor, chemical & medical, industrial automation, power tool, instrument, measuring equipment, office automation, various OEM application.
We are open for general discussion and questions. Contact us now!
