Infitek 7X-45X Trinocular Stereo Microscope (Dissecting Microscope) with CE FDA
| US$236.00-253.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
MSC-ST45T
Magnification
<50X
Type
Stereomicroscope
Number of Cylinder
Binoculars
Mobility
Desktop
Stereoscopic Effect
Stereoscopic Effect
Kind of Light Source
Ordinary Light
Usage
Teaching, Research
Principle
Optics
Eyepiece
Eyepiece15X/15mm,20X/10mm,25X/9mm,30X/8mm
Main Body
Trinocular Head,45°inclined,360° Rotatable
Objective
0.7X-4.5X Stereo Zoom; Zoom Ratio:6.4:1
Focusing Mount
Focusing Mount with Vertical Working Distance 50mm
Stand
Vertical Post:240mm
Illumination
Transmitted and Reflected LED Illumination
C-Mount
Szm 1X C-Mount;*Szm 0.5X C-Mount;*Szm 0.3X C-Mount
Transport Package
Reinforced Carton
Specification
6kg
Trademark
Infitek
Origin
China
Production Capacity
200 Units/Month
Product Description

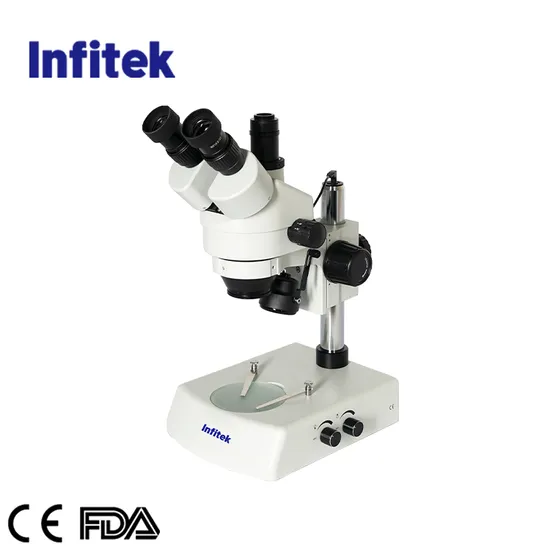

Infitek Magnification 7x-45x Trinocular Stereo/Stereoscopic Microscope Features
Specifications
| Model | MSC-ST45T | |
| Optics | Finite Distance Optical System | |
| Magnification | Zoom objective 7X-45X | |
| Observation Tubes | Interpupillary distance adjustment: 54-76mm; Diopter adjustment: ±5 diopters | |
| Viewing Head | Trinocular head,inclined at 45° | |
| Transmittance ≥ 95% | ||
| Eyepiece | WF10X/20mm high-eyepoint, wide-field; Convenient for observers wearing glasses | |
| *Optional eyepiece15X/15mm,20X/10mm,25X/9mm,30X/8mm | ||
| Objective | 0.7X-4.5X stereo zoom; Zoom ratio:6.4:1 | |
| *Aux lens:0.5X,0.7X,0.75X,1.5X,2X | ||
| Focusing | Focusing mount with vertical working distance 50mm | |
| Stand | Vertical post: 240mm ; Diameter: φ32mm; With φ95mm B/W plastic & Perspex plate and paired clips; Base size:200×255×60mm | |
| Illumination | Transmitted and reflected LED illumination | |
| C-Mount | 1X C-Mount; *0.5X C-Mount; *0.3X C-Mount | |
| Electricity | 100-240V AC,50/60Hz | |
| Package Dimension (W*D*H) (mm) | 510*280*390 | |
| Gross Weight (Kg) | 7 | |
| *Optional | MSC-ST45T: microscope camera (Standard imaging software) / Win 10 Pad / Digital display | |
| Notes: 3.5X-270X with optional eyepieces and objectives | Notes: 3.5X-270X with optional eyepieces and objectives | |
| *Optional Configuration | *Optional Configuration |
About Us
FAQ Q: How about quality of the goods?
A:
All the running products comply with CE standards.
Independent quality inspection team, conducting multiple inspections and random inspections from parts supply to product dispatch.
Well-known third-party testing service available, such as SGS, BV, and TUV, etc.
Q: What are your pre- and after-sales services?
A:
Timely reply to pre-sales enquiries
Real-time update of manufacturing and shipment status
Contracted third-party maintenance company in over 60 countries
Assured availability of parts supply for 10 years at least
Q: Is OEM service available.
A: Most of the running products are available for OEM customization, including logo, package and function, if attainable, customization.
Q: How long is the lead time:
A: Generally, the lead time for most stocked products is about 7~15 days, vary by models and production schedule. For those non-stocked products, the manufacturing lead time is around 20 days.
