US$6,800.00
|
1 Piece
(MOQ)
|
Basic Info.
Application Material
Marble
Application
Glass, Advertising, Art & Craft, Stone Industry
Reposition Precision
0.02mm
Operation System
DSP/Nc-Studio/Mach3
Water Cooling Spindle Power
4.5kw/5.5kw
Table Structure
Steel Lathe Bed
Command
G Code*.U00*.Mmg*.Plt
Max Processing Speed
30000mm/Min
Voltage
380V /220V/50Hz/60Hz
Machine Colour
as Your Choice
Transport Package
Plywood Packing
Specification
iso /SGS/FDA/CE
Production Capacity
50sets/Months
Product Description

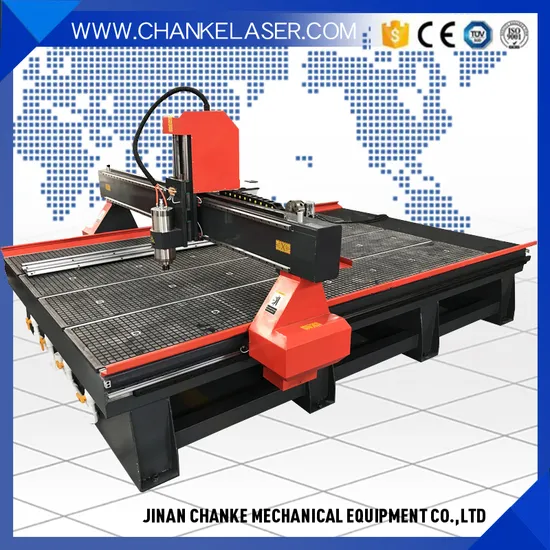

1300x2500mm CNC Marble Engraving Machine for Stone and Marble – Exquisite craftsmanship for precision and durability.
1. The T-slot mesa and lathe bed provide unparalleled stability, ensuring precision in every cut.
2. Advanced water cooling system prolongs the cutter's life, maintaining optimal performance.
3. Breakpoint memory and power failure recovery functions ensure uninterrupted carving, even during unexpected outages.
4. Innovative dust oiling structure effectively guarantees long-term mechanical performance for continuous operation.
5. High-power, water-cooled, brushless motor enhances cutting force and durability, making the machine incredibly robust.
6. Our main configuration utilizes imported, joint-venture brand components, ensuring stable and reliable performance.
7. Highly compatible with various CNC software including Type3, Artcam, Castmate, Pore, Wentai, and variable CAD/CAM, meeting diverse needs.
8. Equipped with a sink and automatic water supply system to fully cool the cutting tool and machining elements during stone and metal processing.
9. Industrial-grade machine body built with heavy-duty all-steel welded structure, tempered and aged for non-deformation and long-lasting durability.
10. Exclusive triaxial dust protection and waterproof technology safeguard the guide rail, gear, and rack from cutting debris, extending component lifespan.
Applicable Industry
Ideal for stone, stone processing, art, advertising, decoration, ceramics reliefs industries, and more.
Technical Parameters
Working size | 1300×2500×200mm cnc stone machine |
Spindle power | Water cooling 3000W |
Spindle rotation | 6000--24000rpm |
Motor driver | Stepper motor driver(Chinese servo motor and Japan servo motor is optional) |
Tool diameter | 3.175, 4, 6, 12.7mm |
Machine structure | Industry square tube structure |
Transmission | High accuracy gear rack |
XYZ rails | PMI square rails |
Dust-proof system | XYZ high quality dust cover |
Mechanical accuracy | 0.03/300mm |
Engraving speed | 12000mm/min |
Data transmission | PC connect directly |
Support format | G code or HPGL |
Working voltage | AC220V/50Hz or 380V/50Hz |
Net weight | 1500kg |
All stone CNC router machines are securely packed with standard inner plastic wrap and steel structure, encompassed by an outer plywood case to ensure safe shipping.
Advantages of Plywood Case Packaging:
Firstly, the plywood case offers superior compressive strength and bearing quality, making it the market's choice for high-weight goods.
Secondly, its large board area and solid structure ensure excellent leakproof and waterproof capabilities, simplifying operational processes.
Thirdly, the fumigation-free plywood case simplifies the import procedure, making the process more efficient.
