Geming Explosion-Proof Lifting Columns in a Hospital Bed Hot Sale Hta2

Product Description

Product Features

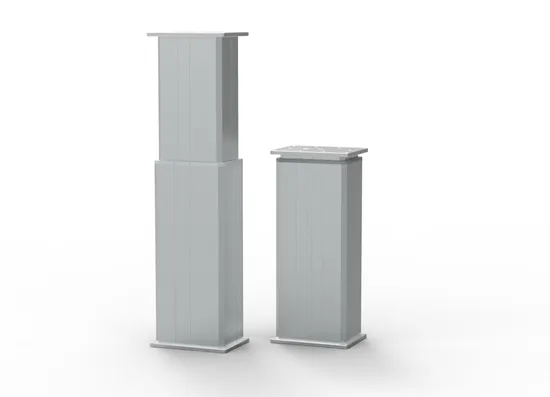

HTA2 lifting column is designed for a wide variety of workstation applications such as computer workstations, workbenches, assembly tables, medical equipment lifting platforms, and even kitchen height adjustment, where it is ideal. 2 HTA2 lifting columns can improve high synchronization performance and load operation capacity, a very powerful design and full-featured office series control box and controller. Can operate as a single system or 2 to 4 lifting columns in parallel depending on the control system!
Model Selection

• Model Selection Our professional sales representive and technical team will choose the right model and transmission solutions for your usage depend on your specific parameters. • Drawing Request If you need more product parameters, catalogues, CAD or 3D drawings, please contact us. • On Your Need We can modify standard products or customize them to meet your specific needs.

Detailed Photos
Product Description

Functional Overview
Voltage:	12,24,48V DC, 220V AC
Motor options:	DC servo motor, AC servo motor
Maximum thrust (pull force):	8,000N / 4,000N
Maximum speed under load:	5-100 mm / s
Minimum installation size:	Stroke /2 + 200mm
Dynamic lateral moment:	1,000Nm
Static lateral moment:	1,800Nm
color:	Aluminum color. silver gray
Voice:	48~52 DB
Adaptable temperature range:	-35 ° C ~ + 75 ° C
Screw selection:	Ball screw, trapezoidal screw
signal type:	Built-in limit signal,
Control options:	CAN bus control,
safety certificate:	Comply with ISO9001-2008, CE and RoHS specifications,

Engineering drawings

Load and speed
Code	Rated load thrustN	pull N	Self-locking force static N	Rated load A	Output speed no-load 24V DC MM/S	Rated load 24V DC MM/S
A Motor voltage(24V DC)
A1	8,000	6,000	8,000	10.2	5	4
A2	7,500	6,000	8,000	10.2	10	8
A3	5,500	5,000	6,000	10.2	13	10
A4	3,500	3,500	3,500	10.2	20	16
A5	2,800	2,800	3,200	10.2	26	22
A6	1,800	1,800	2,000	10.2	40	32
B Motor voltage (24V DC)
B1	4,000	4,000	5,000	5.5	5	4
B2	2,000	2,000	2,800	5.5	11	9
B3	1,500	1,500	1,500	5.5	17	13
B4	1,000	1,000	1,000	5.5	22	18

Applications

Company Profile
GeMinG was founded in 2011 and is located in Binhai Economic Development Zone, Wenzhou City, Zhejiang Province, 5minutes away from Wenzhou Airport. The company specializes in R&D and manufacturing linear motion systems and has become a leading manufacturer of electric linear actuators, electric lifting column control systems and related technologies. GeMinG currently has two branches, two manufacturing plants and multiple sales agents, which can provide global engineering and sales support.
The personal relationships gained through cooperation also strengthen the relationship of the GeMinG family, which is a multinational team working together to achieve the common goal of providing high-quality, long-life linear motion solutions and best customer service to our partners. We celebrate wins and learn from team challenges. We use challenges as a way to learn and achieve greatness. We are the GeMinG team.
Q: What are your main products?
A: We currently produce lifting columns, medical lifting columns, furniture lifting columns, ergonomic lifting tables, linear actuators, industrial linear actuators, micro actuators, six-axis robotic arms, etc. You can check the above product specifications on our website, or you can recommend lifting mechanisms and actuators that meet your specifications to us by email.
Q: How to choose a suitable lifting mechanism?
A: If you have pictures or drawings of lifting columns to show us, or you have detailed specifications such as voltage, speed, stroke, initial height, maximum height, motor working mode, required life and noise level, etc., please feel free to tell us, then we can recommend a suitable lifting mechanism according to your requirements.
Q: How to choose a suitable linear actuator?
A: If you have pictures or drawings of linear actuators to show us, or you have detailed specifications such as voltage, speed, stroke, installation size, load capacity, required life and noise level, etc., please feel free to tell us, then we can recommend a suitable lifting mechanism according to your requirements.
Q: Do you have customized services for your standards?
A: Yes, we can customize the product requirements according to your requirements, such as installation size/shape, motor selection, stroke, voltage, and various special requirements. We can do everything to meet your needs.
Q: Do you have personalized design services for products?
A: Yes, we are willing to design actuators and lifting mechanisms, as well as control systems, etc. for customers, but there may be some mold development costs. Simple customization does not require any fees.
Q: How long is your delivery time?
A: Generally speaking, our regular standard products take 6-20 days, and customized products take longer. But we are very flexible about delivery time, which depends on the specific order.
If you have detailed requirements, please contact us, thank you!
