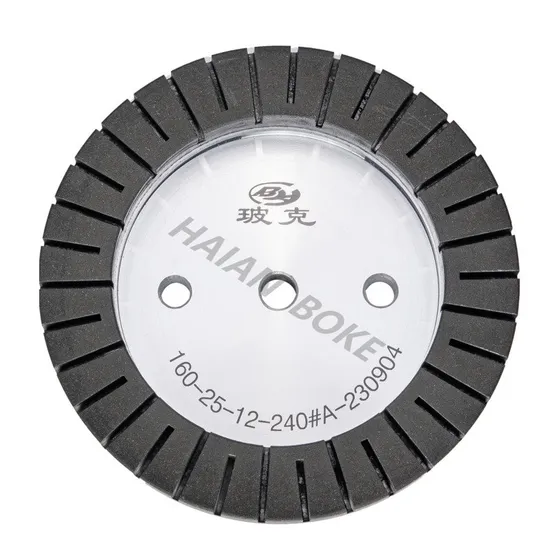

Diamond Grinding Wheel-Flat Diamond Resin Edge Polishing Grinding Wheel for Glass

Product Description

Product Parameters

Diameter	Bore	WIDTH	HEIGHT	GRIT
130mm	12/22/50 mm	10/15/20 mm	10/12/15 mm	180#-320#
150mm	12/22/50 mm	10/15/20 mm	10/12/15 mm	180#-320#
160mm	12/22/50 mm	10/15/20 mm	10/12/15 mm	180#-320#
175mm	12/22/50 mm	10/15/20 mm	10/12/15 mm	180#-320#

Other specifications can be customized according to requirements
Mainly suitable for various brands of straight edge machines, straight edge double-sided machines, using high-quality sharp diamonds and special binders, strictly controlling product precision, high stability of process and raw materials, good grain removal, good diagonality, and dynamic balance processing make product operation more stable
Diamond grinding wheels are produced by the latest vacuum hot pressing sintering machine, with a temperature range of 800 º C to 1000 º C. High vacuum can cause minor damage to diamond abrasive particles, and diamond abrasive particles will not be oxidized during hot pressing sintering.
Therefore, this diamond grinding wheel has good sharpness and a long service life.
The surface of the glass edge after grinding will be better.
Mainly suitable for various brands of glass edge grinding machines such as CNC machining centers, using diamond abrasives as the main raw material. The diamond grinding wheel has good sharpness, good shape retention performance, long service life, can be reused, and has a large grinding volume
Give it a try, you will like it!
Customized sizes are available according to requirements.
