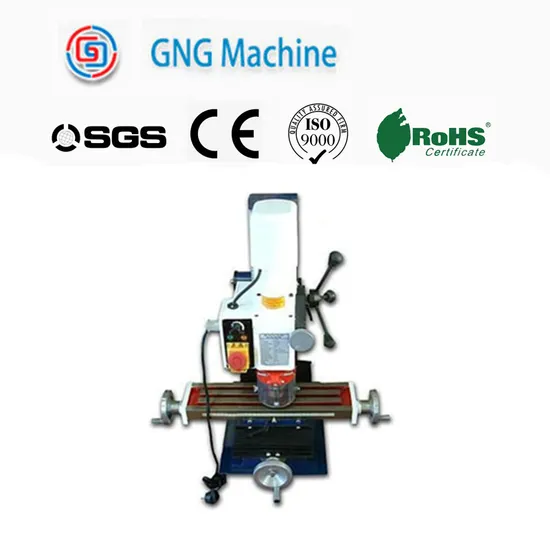

Mini Metal Drilling Milling Machine
| US$410.00 | 6 Pieces (MOQ) |
Basic Info.
Model NO.
XJ9512
Number of Shaft
3
Hole Diameter
<50mm
Automatic Grade
Semiautomatic
Precision
Precision
Certification
CE
Condition
New
Cross Travel
100/130mm
Spindle Stroke
180mm
Voltage
380V
Power(W)
550W
Dimension(L*W*H)
570X510X740mm
Transport Package
Package
Specification
CE
Trademark
G&G or make customer ′s brand
Origin
China
HS Code
845959000
Production Capacity
300/Per Month
Product Description
Min. Order Quantity: 5 Set/Sets
Supply Ability: 500 Set/Sets per Month
Port: Qingdao/Shanghai
Payment Terms: T/T
Quick Details
Condition: New
CNC or Not: Normal
Drilling Speed: 50-2500rpm
Place of Origin: Shandong, China (Mainland)
Brand Name: weihao
Model Number: XJ9512
Voltage: 380V
Power(W): 550W
Dimension(L*W*H): 570x510x740mm
Weight: 62kgs
Certification: CE
After-sales Service Provided: No overseas service provided
Packaging & Delivery
Packaging Details: 57x51x74cm 64x57x72cm 62/80kg
Delivery Detail: 30-45days
Specifications
*Variable speed
*Spindle micro feed
*DC motor
*Positive spindle lock
*Imported speed control unit
| XJ9512 MINI DRILLING & MILLING MACHINE | ||||
| Technical spec. | XJ9512 | |||
| FOBQingDao Price(USD) | ||||
| Drilling capacity | 16mm | |||
| Max face millcapacity | 30mm | |||
| Max end mill capacity | 13mm | |||
| Spindle stroke | 180mm | |||
| Longitudinal travel | 250/300mm | |||
| Cross travel | 100/130mm | |||
| Spindle rotary angle | -45~+45 | |||
| Working table size | 410/460x112mm | |||
| Motor power | 550W | |||
| Max distance spindle to table | 220mm | |||
| Spindle taper | MT3 | |||
| Spindle speed | 50-2500RPM | |||
| Net weight/Gross weight | 62/80kg | |||
| Packing size | 570x510x740mm 640x565x720mm | |||
| Product featues | *Variable speed *Spindle micrp feed *DC motor *Positive spindle lock *Imported speed control unit *Adjusrable gibs on table *Milling, drilling. boring, reaming. *Accurate position, strong rigidity, strong cutting power *Head swivels ± 45° of perpendicular | |||
