CE ISO Waste Paper Recycling Corrugated Waste Occ Paper Dry Pulping Line

Product Description

CE ISO Waste Paper Recycling Corrugated Waste OCC Paper Dry Pulping Line Products Description
OCC Paper Dry Pulping Line Waste paper recycling is a process of repeated paper making, mainly recycling paper fibers in waste paper, which can greatly save resources and reduce pollutant emissions. In foreign countries, waste paper has the reputation of urban forest resources. Whether it is waste newspapers, book paper, office paper, or kraft paper, cardboard boxes, corrugated paper, etc., they are all valuable fiber raw materials used in papermaking. Using waste paper to make paper has the advantages of low energy consumption, low processing cost, low unit raw material cost, and reduced environmental pollution. Therefore, paper and cardboard produced from recycled fibers are called green products. Paper and cardboard are valuable materials as their fibers can be recycled. Our paper shredders allow for economical and environmentally friendly paper reutilization. The shredders crush and recycle paper and cardboard waste, delivering consistent and controllable discharge particle size. Custom paper recycling solutions are available according to your individual production requirements. Technical Parameters

Model	JLSS1000	JLSS1200	JLSS1500	JLSS2000
Motor	15kw+15kw	22kw+22kw	55kw+55kw	90kw+90kw
Gearbox	2units,planetary type, gear transmission
Shaft	solid shaft, made of 40Cr, hardened and tempered
Shredder chamber (inner)	940x725mm	1120x1000mm	1450x1100mm	1920x1250mm
Rotor rotary speed	8-18rpm	8-18rpm	8-18rpm	8-18rpm
Blade	diameter 360mm	diameter 360mm	diameter 530mm	diameter 560mm
Lubrication system	With automatic oil lubricator
Dimension	3.2x1.3x2.3m	3.2x2x1.9m	4.9x2.8x2.8m	6x3.8x4.8m
Weight	6000kg	12000kg	18000kg	29000kg

Model	JLSD1500	JLSD1500D
Infeed port size	1468*450mm	1468*900mm
Hammer blade	66pcs, made of 65Mn	132pcs, made of 65Mn
Liner plate	M13Cr2, 42pcs	M13Cr2, 84pcs
Output material size	3-30mm (screen customizable)	3-30mm (screen customizable)
Main motor	75kw+75kw	75kw+75kw+75kw+75kw
Discharging conveyor motor	11kw	11+11kw
Feeding conveyor motor	4kw	4kw
Hydraulic motor	2.2kw	2.2kw
Output screw conveyor	Dia.273mm x 1, motor 7.5kwx1	Dia.273mm x 1, motor 7.5kwx1
Dust collector	48-bag pulse dust collector,4kw	96-bag dust collector,11kw
Cyclone	With air-lock valve, fan 7.5kw	With air-lock valve, 7.5kw x2
Dimension	3150*3250*3350mm	6150*3250*3350mm
Weight	5500kg	8500kg

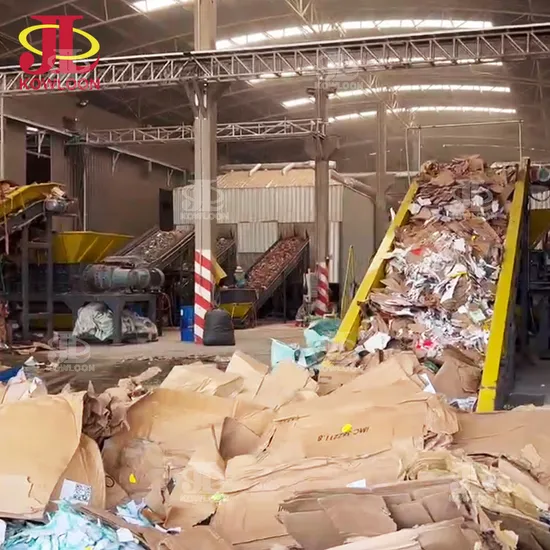

Details Show Heavy Duty OCC Paper Dry Pulping Line Our complete disposal process is approximately: double-shaft shredder (as pre-shredding, discharge size about 15-20cm) + hammer mill(used as fine shredding, discharge size about 2cm) + magnetic separator + pulse dust removal.The low-speed, high-torque double-shaft shredder allows for better capacity reduction of the material, and with the single-shaft fine shredder, the material can be processed to the desired discharge size of the customer.The magnetic separator can pick out the adulterated metal inside the material, after removing most of the metal, one way can sell it directly to increase the added value, and the other can protect the shredder cutters. Impulse dust removal ensure a high degree of environmental protection in the work area and have a dust suppression effect. Waste Paper Processing Line Dry Pulping System
Our solutions come in a modular design so you can customize them to match your production process. At Kowloon we focus on solutions that pay off, whether it's supplying the smallest spare part or serving as a long term partner. Complete Waste Paper dry pulping line includes the following equipments, from the storage of raw materials to the dry pulp production. Each section has professional equipment to work. Of course, according to the different needs, it may be the particularity of the raw materials or the limitations of the site. Our engineers will redesign the process, and the equipment used will be increased or decreased. Raw Materials
There are five basic paper grade categories. While these terms may be most useful to paper mills looking to process certain kinds of paper, you may hear these terms once in a while, and it's possible you'll need to be able to distinguish between them.
1.Old Corrugated Containers - You might know this as "corrugated cardboard." It's most often found in boxes and product packaging.
2.Mixed Paper - This is a broad category of paper that includes things like mail, catalogs, phone books and magazines.
3.Old Newspapers - This one is pretty self-explanatory. Mills use newspapers, a lower grade paper, to make more newsprint, tissue and other products.
4.High Grade Deinked Paper - This quality paper consists of things like envelopes, copy paper and letterhead that has gone through the printing process and had the ink removed.
5.Pulp Substitutes - This paper is usually discarded scraps from mills, and you probably won't have to worry about running into it, though it may find its way into products you buy.
1. Waste Paper Shredder
The main task of this section is to quickly shred any shape of waste paper boxes, old corrugated paper, hard paper, newspapers, used books, cartons, paper tubes, paper tubes, cardboard and other materials into small pieces.So a waste paper shredder is needed to complete the task. 2. Raw Material Crushing The task at this stage is to further crush the raw material into small sawdust.Only paper waste that meet the size requirements can be directly fed into the hammer mill, or those that have passed the chipper and coarse crushing and require further fine powder. 3. Sawdust briquette baler The punching briquetting press adopts machinery stamping force on the sawdust and forms them into solid cylindrical briquettes. It
can not only make the sawdust briquettes but also the sawdust pellets, what you need to do is replacing the forming mould. Installed Projects Company Profile Company Introduction Kowloon Machinery located in industrial hub of Zhengzhou city, China, design and manufacture industrial shredder, wood processing machinery, waste tire recycle equipment and scrap metal recycling machines. Kowloon products approved by CE and ISO certificates. Up to now, we have exported to more than 30 countries and share markets in worldwide, and now are still growing continuously. We effort on improving and researching, in past years, various of new products were developed and becomes popular in domestic and abroad market, won good reputation and corporate image, we always effort on best quality and service, welcome to inquiry! Customer Cooperation
Zhengzhou Kowloon Machinery has always won the trust and recognition of many users with its excellent quality and excellent after-sales service. The company has CE, ISO, SGS, CMIC and multiple certification certificates and invention patents. New and old friends are welcome to visit our factory and Trial machine test. Certificate
FAQ 1. Are You Trading Company or Factory?
Kowloon Machinery is a Factory with 31 years experience in machinery manufacturing; we provide you completive Factory Price and good After-sale Service!
2. What about the Machine Installation?
For a single machine or a simple line, we provide you Foundation Drawing ,Installation Instruction Books or successful installed machinery picture or video; for large machines and complex production line, we could send our engineers to guide the installation if necessary.
3. How About the Spare Parts?
We offer some free spare parts like belt, gasket etc small parts, for the BLADES, KNIVES, SHAFTS etc important wearing parts, we suggest customers buy some along with the machines to save the shipping cost, and we have enough spares parts in stock.
4. What Will We Do If We Have Problems in Machine Working After We Buy the Machine?
Kowloon has people special for after-sale service,if customers outside China have problems when machine working, just feel free to send us the picture or video to show us, we will give you solutions in 24hours.
5. Could We Visit Your Factory and Test the Machine?
We warmly welcome you to visit our factory anytime, and we are very glad to test our machine with your raw material.
