US$400.00-500.00
|
1 Piece
(MOQ)
|
Basic Info.
Model NO.
ZS4112B1 / ZS4116B1
Controlling Mode
Artificial
Certification
GS, CE, RoHS, ISO 9001
Max.Drilling Capacity
12.7
Transport Package
Wood Case
Production Capacity
200PCS/Month
Packaging & Delivery
Package Size
800.00cm * 450.00cm * 1000.00cm
Package Gross Weight
100.000kg
Product Description
Product Description

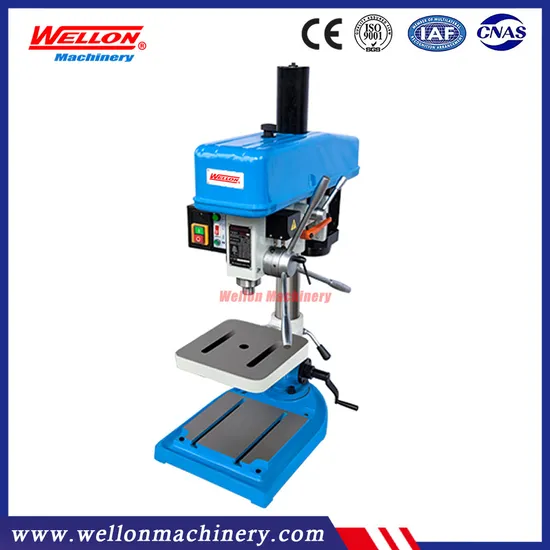

Detailed Photos
Product Parameters
Performence Features:
The spindle sleeve with anti-rotation mechanism.strengthen the guide,preventing the head rotation,to avoid the blind
performance of the gear shaft and sleeve.at same time the multi-spindle head improve the precision location.
Spindle head can rise/down by handle,portable and flexible
Belt adjust mechanism adopt the gear driving and rack driving,easier than manual adjust.the clamp adopt screw locking
the slant of motor pin,the clamp reliable and easy to operate.
The bottom of belt cover can be instead of full-locked structure to increase the degree of protection.
The handle shaft adopt steel,everlasting.lengthen the arm,easy to operate and more efficient
Spindle body with the LED light,easy to operate,lighten the working environment.
Technical parameter:
Model | | ZS4112B1 | ZS4116B1 |
Max.drilling capacity | mm | 12.7 | 16 |
Max. Tapping capacity | mm | 10 | 12 |
Spindle travel | mm | 100 | 100 |
Distance spindle to column | mm | 193 | 193 |
Max.distance spindle nose to table | mm | 262 | 262 |
Max.distance spindle nose to base | mm | 500 | 500 |
Spindle taper | | B16/MT2 | B16/MT2 |
Spindle speeds range | r/min | 480~4100 | 480~4100 |
Spindle speeds series | steps | 5 | 5 |
Dimension of base | mm | 280x260 | 280x260 |
Dimension of worktable surface | mm | 200x230 | 200x230 |
Main motor | kw | 550 | 750 |
Net weight | kg | 90 | 90 |
Packing dimension | mm | 80x45x100cm | 80x45x100cm |
Standard accessories:
Drill chuck
Reduction sleeve and arbor
Draw bar
Wrench
Operate manual
Optional accessories:
Machine vice
Spindle guard
Coolant system
Multi-spindles
