6 Foreign Language Available Universal Edition Agriculture Unmanned Aerial Vehicle Uav.

Product Description

Overview
Super capacity; Super high efficieney.
40L water tank; 60L large capacity spreading.
Super battery,super capacity30000Ah 2.lkwh.
Maximum sowing amount 360kg/Battery.
Maximum spraying amount 70L/Battery.
Fast service·Betterafter-sales service
Professional training -Fast learning
Provide systematic flight operation trainingfor users
Service provided by manufacturer -Fast after-sales ser
You can buyany package, including 35,000 Sincerity Servicequota,with after-sales maintenance guaranteed.
Signal service -Good signal
Full-stack signal solution, optional Huidaportable base station, solve the problem ofnot having network,
free worries aboutcors, permanent free,with high-precisionnet work!
Product Parameters

Aircraft parameters
Architecture layout	Six-axis layout
Maxmum wheelbase	2260mm
Overall dimension	3050mmX2940mmX830mm(arm unfolded, blade unfolded) 890mmx760 mmx830mm(arm folded)
Capacity of pesticide container	40L
Capacity of seed container	60L
Weight ofmachine	34KG
H460 flight parameters
Hovering accuracy	RTK: Horizontal ±10cm, Vertical ±10cm Radar: ±0.lm
Hovering under spraying and full load	8.5min
Hovering under spreading and full load	7min
No-load hovering	18min
Maximum operation efficiency	330mu/h
Ranging accuracy of ground simulating radar	0.1m
Fixed height range	1-30m
Obstacle avoidance perception range	1-30m
Graphic transmission	>1.5KM
Maximum take-off weight	Spraying:88kg Sowing:95kg
H460 spraying system
Nozzle type	High pressure sector nozzle	Centrifugal nozzle
Number of nozzles	12 nozzles	4 nozzles
Max flow	8L/min	13.5L/min
Maxmum spray amplitude	12m	11m
H460 generator
Nominal power	220V/8000W(direct connection to generator) 220V/2200W (direct connection to mains)
Tank capacity	38L
Reference fuel consumption	500ml/kwh
H460 smart battery
Battery weight	13KG
Power battery	68.4V/30000mAh 2.1kwh
Charging duration	Lithium battery 2096-9596 about 13min
H460 multi-purpose charger
Input voltage	Support 220V/380V
Maxmum power	7200W

Our Advantages
New Efficiency Upgrade, safer and More Reliable:

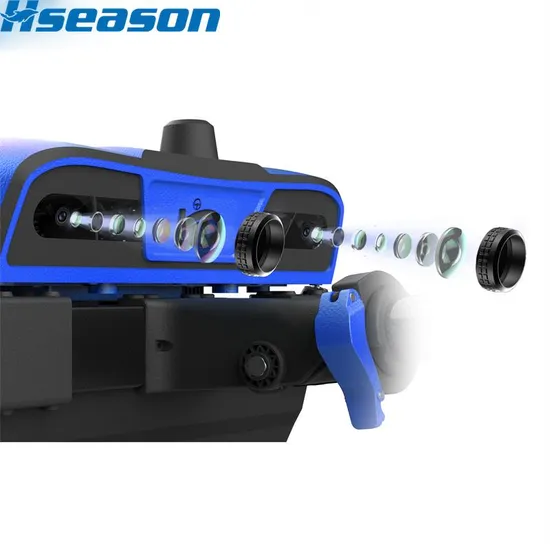

1. Bidirectional FpV camera Equipped with dual FPV cameras, the front and back views are known very well.
2. New choice, Centrifugal nozzle/high-pressure nozzle is more efficient when it is adapted to various operation scenarios.
3. Newly upgraded rotating radar Rotating radar makes obstacle avoidance easier. Suitable for multi-terrain operation in combination
with ground simulation radarReserved up-looking radar expansion port make functions more powerful.
4. Core upgrade: Newly upgraded, equipped with the thirdgeneration drone chip.
Provided with color touch screenEquipped with standard RTK dotterEquipped with 2 remote control batteries.
Company Profile
Huangshi Eason Technology Co., Ltd

Address:Unit 3, Bldg. 9, Huangjinshan Science Park Entrepreneurship Center, Huangshi
ETDZ, Huangshi, Hubei, China (Mainland)
Committed to the development and implantation of agricultural technology, we are smart agriculture solution provider. participated
in a number of frontier agri-tech projects and partnering with many influential international enterprises, we aim to provide
global farmers with the best local solutions ranging from plant protection, crop monitoring and farm management. We has
successfully blazed a trail in smart & sustainable agriculture.
We have sales overseas more than 20 countries:
Asia: Japan, Korea, Thailand, Malaysia, Indonesia, Vietnam, Singapore, Kazakstan, ect.
America: USA, Brazil, Ecuador, Panama, Mexico, Columbia, Peru, Dominica, ect.
Europe: UK, France, Spain, Germany, New Zealand, Switzerland, Russia, Greece, Ukraine, etc..
Packaging & Shipping
FAQ
If you have any questions, please feel free to contact us now.
Q1. Can I have a sample order for agriculture drone? A: Yes, we welcome sample order to test and check quality. Mixed samples areacceptable.
Q2. Do you have any MOQ limit for drone?
A: Low MOQ, 1pc for sample checking is available.
Q3. About Our ProductTypes:
Our main production include: Plant protection Drone, Mapping Drone, Multi-function Drone, both Branded and manufactural. Small Unmanned Ground Vehicle, IOT Intelligent Agriculture, Field Monitoring System, and Relevant Service provider.
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by airplane. It usually takes 7-12 days toarrive. sea shipping is also optional.
Q5. How to proceed an order for drone?
Firstly let us know your requirements or application. Secondly We quote according to your requirements or our suggestions. Thirdly customer confirms the samples and places deposit for formal order. Fourthly We arrange the production and shipping.
Q6. Is it OK to print my logo on product?
A: Yes. Please inform us formally before our production and confirm the design
firstly based on our sample.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 1 year warranty to our products.Provide after-sales service support and Agricultural technical support.
Q8. About the sample: Small orders and sample orders are welcome.
Q9. About the shipment:
(1) Usually we ship your drone via sea or air express according to the order quantity. (2) All shipments with Registered Tracking number or Bill and we will send you by e-mail timely.
