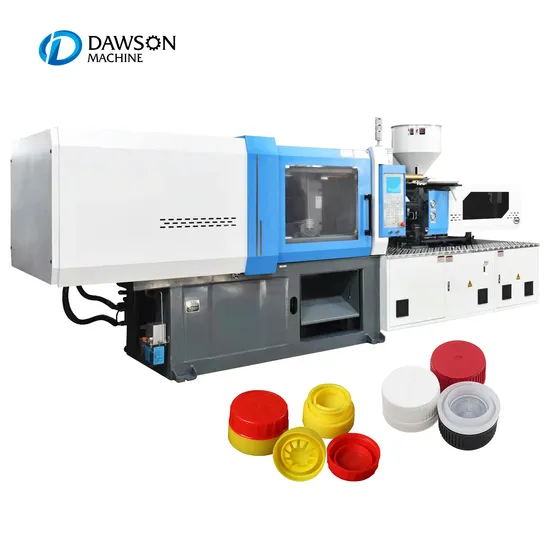

Good Quality Pet HDPE PP Oil Pull Cap Injection Molding Machine for Making Plastic Cover

Product Description

Good quality PET HDPE PP Oil pull cap Injection Molding Machine for Making Plastic cover
DAWSON MACHINERY & MOULD GROUP
Injection Molding Machine
specialized for making PET preforms , caps , pails, buckets, jars, covers, lids. Special screw for PET products, all machine adapt latest Taiwan control system, Japan YUKEN hydraulic valve for highest quality standard and machine performance. We also able to provide mould designing and manufacturing to help you build up all kinds of plastic items manufacturing.

INJECTION UNIT		K-TEC120			K-TEC140			K-TEC170			K-TEC230			K-TEC270
Screw diameter	mm	35	38	42	38	42	45	42	45	50	45	50	55	50	55	60
Screw L/D ratio	L/D	22.8	21	19	22.1	20	18.7	23.5	22	19.8	23.4	21	19.1	25.2	22.9	21
Shot volume(theoretical)	cm³	163	192	235	226	277	318	311	357	441	397	490	593	530	641	763
Shot weight	g	148	175	214	206	252	289	283	325	401	362	446	540	482	583	694
Injection rate	g/s	92	108	130	94	115	132	138	160	196	124	154	186	187	227	270
Injection pressure	Mpa	219	186	158	209	171	149	203	177	143	207	168	138	205	169	142
Screw speed	r.p.m	220			220			200			175			185
CLAMPING
Clamp tonnage	KN	1200			1400			1700			2300			2700
Toggle stroke	mm	360			380			435			475			540
Space between tie-bars	mm	410 * 410			420 * 420			460 * 460			520 * 520			570 * 570
Mould Height	mm	160 - 400			160 - 450			180 - 520			200 - 530			200 - 580
Ejector stroke	mm	100			120			135			140			150
Ejector tonnage	KN	30			50			50			70			70
OTHERS
Max. pump pressure	MPa	16			16			16			16			16
Motor power	KW	14			14			21			28			36
Heat power	KW	7.55			9.3			12.3			14.8			16.8
Machine dimension	m	4.4*1.2*1.8			4.48*1.33*1.90			5.18*1.4*2.12			5.58*1.5*2.14			6*1.6*2.25
Oil tank capacity	L	220			270			300			300			380
Machine weight	t	3.8			4.3			6			7			8.5

Standard Feature

Injection Molding Machine Standard Feature

CLAMPING UNIT

1. New type 5-point toggle device with the advantage of stable movement curve and gentle shock 2. High-quality mold platen with enough intensity to ensure no out of shape if high-pressure clamping 3. Hard chrome plated high tensile strength tie bars made of superior alloy with a good wear and corrosion resistance ability 4. Wear-resistant guide for moving platen 5. Transducer control clamping stroke 6. Many step controls for speed and pressure of clamping and opening 7. Ejection device offer dwell, single, more, vibration function 8. Differential high-speed clamping 9. Low pressure mold protection function 10. Hydraulic mold height adjustment derived by gear with rough and fine operation 11. Mechanical and electrical dual safety interlock 12. Automatic centralized lubrication system with far pressure detector

HYDRAULIC UNIT

1. Proportional pressure and flow control with the advantage of fine adjustment and high precision 2. Know-how manifold design, compact, reasonable and fast respond 3. Imported world famous hydraulic valves 4. Imported world famous hydraulic sealing rings 5. Import technology hydraulic hose and fittings 6. Low noise hydraulic system 7. Oil tank with inner stainless-steel container 8. Precision oil filter 9. Oil cooler

CONTROL UNIT

1. 1. The computer is imported from Industry family. The LCD displaying screen with high clarity has Chinese and English language to display 2. World famous electrical components 3. Close-loop PID temperature control with the advantage of high precision. 4. Deviation preset between high and low temperature. And break control for temperature sensor. 5. Alarming system in case of cold start and no material in hopper 6. Transducer control the injection and opening stroke to accuracy of ±0.05mm 7. 99 steps speed control for increasing and reducing to suit for different technology demands 8. Self-diagnostic and trouble alarm function 9. Parameters lock function to avoid being changed 10. 100 sets of production parameters can be stored into the computer memorial software 11. Machine can record the quantity of products and automatically stop if up to the required quantity. 12. Emergency stop device 13. Alarm lamp

SPARE PARTS

█ Operation Manual █ Normal hopper █ Level pad █ Heater band █ Mold clip

Company Profile


DAWSON MACHINERY & MOULD GROUP

Our customers are all around the world.
Vietnam, Australia, Indonesia, Malaysia, Thailand, Sri Lanka, Kazakhstan, Russia, UAE, Saudi Arabia, Malta, Romania, Italy, India, Syria, Ethiopia, Egypt, Sudan, Tunisia, Algeria, Kenya, Nigeria, South Africa, Zimbabwe, Mexico, Guatemala, Ecuador, Colombia, Venezuela, Peru....

We have our own service team in
audi Arabia, Colombia, Panama, South Africa ...

DAWSON MACHINE & MOULD GROUP
located in Zhangjiagang city, have more than 18 years' experience in the field of plastic machinery,
injection molding machine, blow molding machine, PET blow molding machine, injection blow molding machine, during the past 18 years, we always force our energy into new areas of plastic machinery, plastic packaging machinery, to update the technology, to learn advanced experience,
to confirm new theory and new design, we are forming a unique competitive advantage of our owns.
The machines from our company carry good quality and effective after-sales service, upon the market,
customers from more than 45 countries, we provide complete solution for your plastic industry
business, as well as all sorts of technical support & after-sale services!
DAWSON will be your reliable friend in China, and we will always do our best to give you max support!
Customer Photos
We committed to providing customers with plastic machinery & equipment production lines beyond expectations.

Customer satisfaction is our eternal pursuit...

FAQ

Q: Can we visit your factory? Sure. We located in Zhangjiagang city which is very near Shanghai. For overseas customers, you can fly to Shanghai Pudong International Airport. We can pick you up in the Airport. (or Hongqiao International Airport. ) We also provide visit online by video. Q: How can we get the exact price of plastic machine? Contact us with the products size, shape, annual quantity and photo if possible. We can recommend our machine models with quotation. Q: Do you provide any spare parts with machine? Yes, we offer all necessary spare parts before shipment.(contact us for packing list ) Q: How about your after-sale service ? We offer manual instruction and engineer training before loading,after shipment we provide 24 HRS online support, video technical support or field installation assist. Q: What is the lead time? For customized machine, it takes about 45-50 days after deposit. For stock machine, fast shipment. ( The actual production cycle will vary according to the degree of customization.) Q: What is the warranty period for your machine ? 12 months warranty for components and technical support . Q: Do you provide custom machines? Most of our machines are customized. Our goal is efficiency and stable performance. We design the machines according to customers products to meet customer' needs. Q: How can we install the machine when it arrives? We can send experienced technicians to customer's country for guiding the installation and commission the machine, also train the customer's employees. Q: What's DAWSON's advantage? DAWSON provide customers with turnkey projects. Including plant design, plastic machine and mold installation, debugging, also we can source the auxiliary equipment for customers. We can ship the full set of machines after testing in our factory. It will save a lot of cost and time. DAWSON will be your reliable friend in China, and we will always do our best to give you max support!
