Product Description Industrial 16-Port 10/100/1000T Gigabit Ethernet Switch
Overview The UTP UF-IES016G is the highly reliable industrial Ethernet switch with 16-port 10/100/1000-T RJ45. It is featuring with port isolation, flow control, QoS (1-2 ports) and broadcast storm restrain function, which all can be configured by the Dip switch on the top panel.
UF-IES016G is also a high cost-effective easy-to-use device, which provides essential industrial Ethernet networking function, including wide range power input 12-58VDC, redundant power design with polarity reverse/over-voltage/over-current protection, robust IP40 fan-less housing with Din-rail installation, wide operation temperature from -40°C to 80°C as well as high-level EMI/EMC capability. It is the best choice for heavy industrial factory, transportation, oil & gas, chemical, IP Surveillance and processing automation area where environmental conditions are harsh and critical.

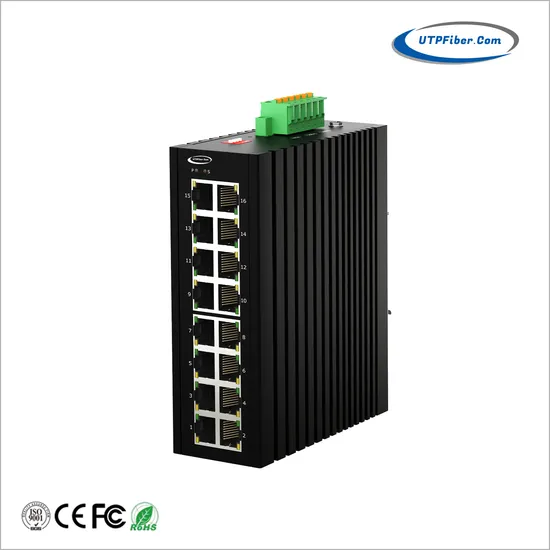

Features 16*10/100/1000Base-T RJ45 ports Redundant power DC 12-58V input with polarity reverse/over-voltage/over-current protection Support one output relay alarm (terminal block Pin 5/6) for DC power failure Support powerful Dip switch function: 1. Link aggregation; 2. Flow control; 3. QoS (1-2 ports) ; 4.Broadcast storm restrain Support 10K Bytes Jumbo frame Support 6KV surge protection and ESD: Air-15kV, Contact-8kV Protection IP40 fan-less and Din-rail hardware design Operation temperature: -40 ºC ~+80ºC Detailed Photos
Application The UF-IES016G Series is suitable for a wide range of applications, including industrial networking, intelligent transportation systems (ITS), and utility market applications that require robust performance in harsh environmental conditions.
Product Parameters

Model No.	UF-IES016G
Interface	Fiber ports	Copper RJ45 ports
	0	16
Ethernet	16*10/100/1000Base-T
Alarm port	One relay output for power failure. Alarm relay current carry ability: 1A@24VDC
Standard	IEEE 802.3 10Base-T Ethernet IEEE 802.3u Fast Ethernet IEEE 802.3ab Gigabit Ethernet IEEE 802.3x Full-Duplex Flow Control IEEE 802.3az Energy Efficient Ethernet
Dip Switch	Link aggregation Flow control QoS(1-2 ports) Broadcast storm restrain
LED Indicators
P(Power indicator) Green	Off: the device is power off or failed
	On: the device power on is normal
S(System indicator) Red	Off: the chip is normal
	On: the chip read/write is unnormal
1-16 (Copper ports)	Green indicators	Yellow indicators
	Off: ports link down	Off: port on 10/100M
	On: ports link up	On: port on 1000M
	Blinking: data on TX/RX
Power parameters
Input voltage	12-58VDC, redundant power input
Input current	5.6A Max
Total power consumption	Full loading≤8W
Connector	Removable 6-pin terminal block, Pin 5-6 for relay alarm output
Reverse polarity protection	Support
Over-voltage protection	Support
Over-current protection	Support
Switching features
Switching capacity	32G
Packet forwarding rate	47.6Mpps
MAC address table	8K
VLAN	4K
Buffer	2M
Forwarding delay	<5us
Jumbo Frame	Support 10Kbytes
MDX/MIDX	Support
Watchdog	Support
Network Topology
Star topology	Support
Bus topology	Support
Tree Topology	Support
Mechanical structure
Case protection	IP40
Installation method	Din-rail
Dimension(W*D*H)	54*115*158mm
Weight	1.37 Kg
Operating environment
Operating temperature	-40ºC~+80ºC
Storage/transportation temperature	-40ºC~+85ºC
Relative humidity	5%~95%(non-condensing)
Industry standard	EMI:FCC Part 15B Class A
	Surge protection of power: IEC 61000-4-5 6KV/4KV(8/20us)
	Surge protection of Ethernet ports:IEC 61000-4-5 6KV/2KV(10/700us)
	RS: IEC 61000-4-3 80 MHz-1 GHz:10 V/m
	EFT: IEC 61000-4-4 power interface: 4K;Ethernet ports: 2K
	CS: IEC 61000-4-6 10V
	ESD: IEC 61000-4-2 Level 4(8K/15K)
	Shock: IEC 60068-2-27
	Free fall: IEC 60068-2-32
	Vibration: IEC 60068-2-6
Certification	CCC/CE/FCC/RoHS
Warranty	5 years

Ordering Information

Model	Description
UF-IES016G	Industrial 16-Port 10/100/1000T Gigabit Ethernet Switch
Mounting Options	DIN-Rail Mount Installation
Power Options	DIN-Rail Power Supply. Open Wire for Terminal Block.
	Power Supply is to be purchased separately.
